g.tec medical engineering GmbH g.USBamp, USB Biosignal Amplifier: Instruction for use
____________________________________________________________________________________________________________________
V2.16.09
Page 25

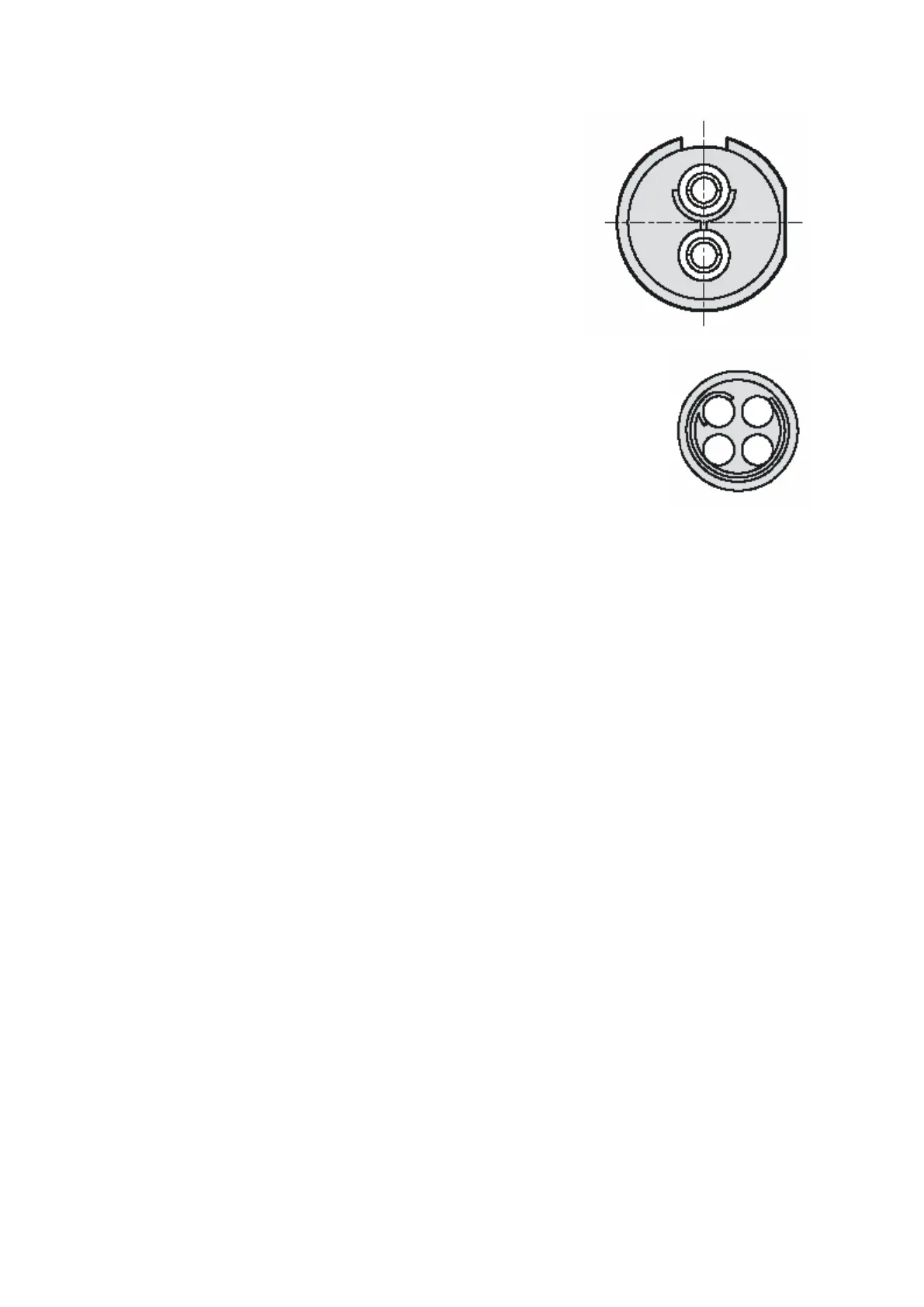

Pin-assignment for the 2 pin socket POWER SUPPLY
Pin 1 +5 V
Pin 2 ground
Pin-assignment for the 4 pin socket SC
Pin 1 ground digital
Pin 2 for internal use only, do not connect
Pin 3 for internal use only, do not connect
Pin 4 TTL input
