G-Tec g-USBamp - Page 26

g.tec medical engineering GmbH g.USBamp, USB Biosignal Amplifier: Instruction for use
____________________________________________________________________________________________________________________
V2.16.09
Page 26

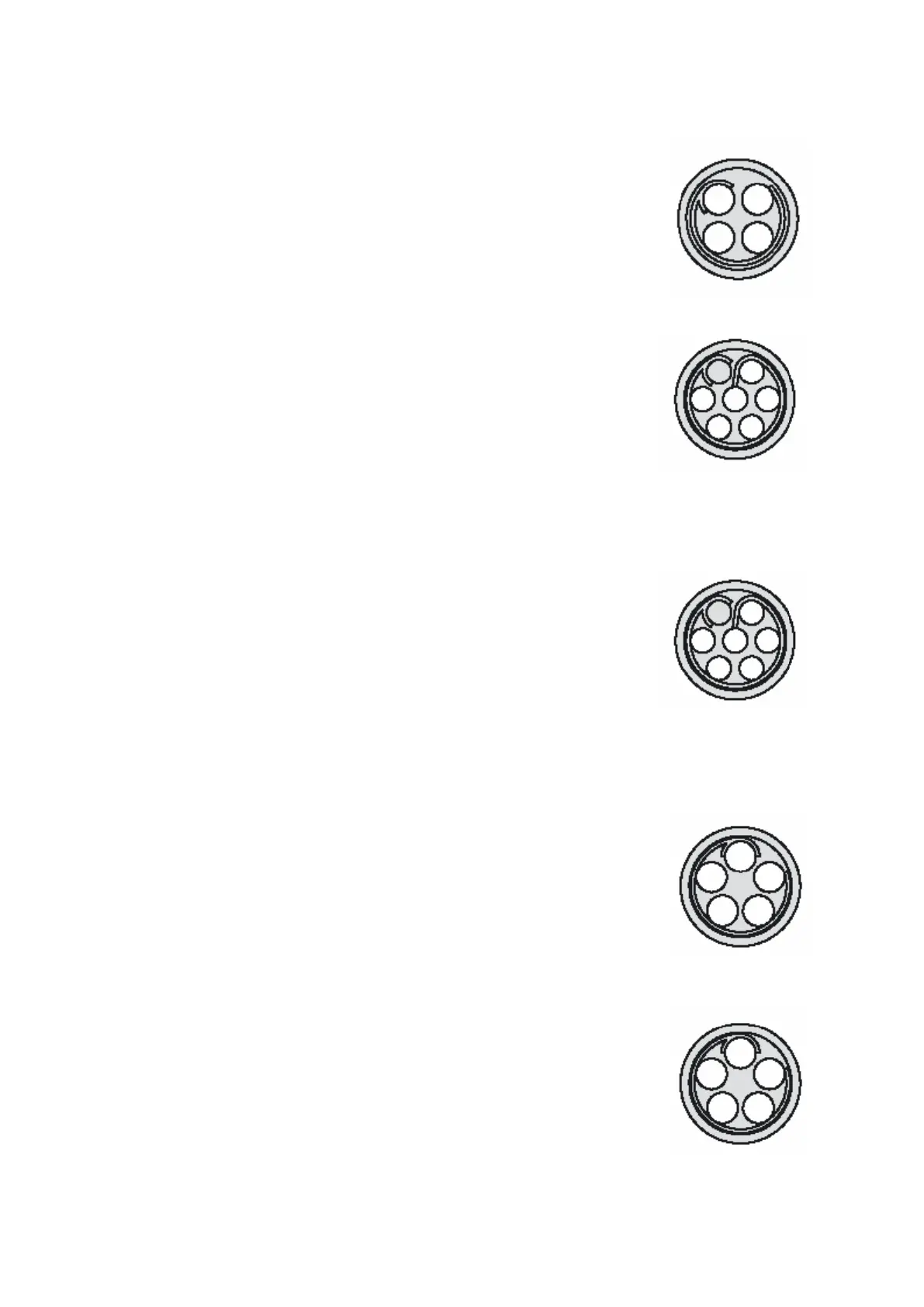

Pin-assignment for the 4 pin socket USB
Pin 1 D -
Pin 2 +Vbus
Pin 3 ground digital
Pin 4 D +
Pin-assignment for the 7 pin socket DIGITAL I/O 1
Pin 1 digital input 0
Pin 2 digital input 1
Pin 3 digital input 2
Pin 4 digital input 3
Pin 5 digital output 0
Pin 6 digital output 1
Pin 7 ground digital
Pin-assignment for the 7 pin socket DIGITAL I/O 2
Pin 1 digital input 4
Pin 2 digital input 5
Pin 3 digital input 6
Pin 4 digital input 7
Pin 5 digital output 2
Pin 6 digital output 3
Pin 7 ground digital
Pin-assignment for the 5 pin socket SYNC OUT
Pin 1 ADC sclock out -
Pin 2 ADC sclock out +
Pin 3 ground digital
Pin 4 ADC clock out -
Pin 5 ADC clock out +
Pin-assignment for the 5 pin socket SYNC IN
Pin 1 ADC sclock extern -
Pin 2 ADC sclock extern +
Pin 3 ground digital
Pin 4 ADC clock extern -
Pin 5 ADC clock extern +
