Power supply unit cable

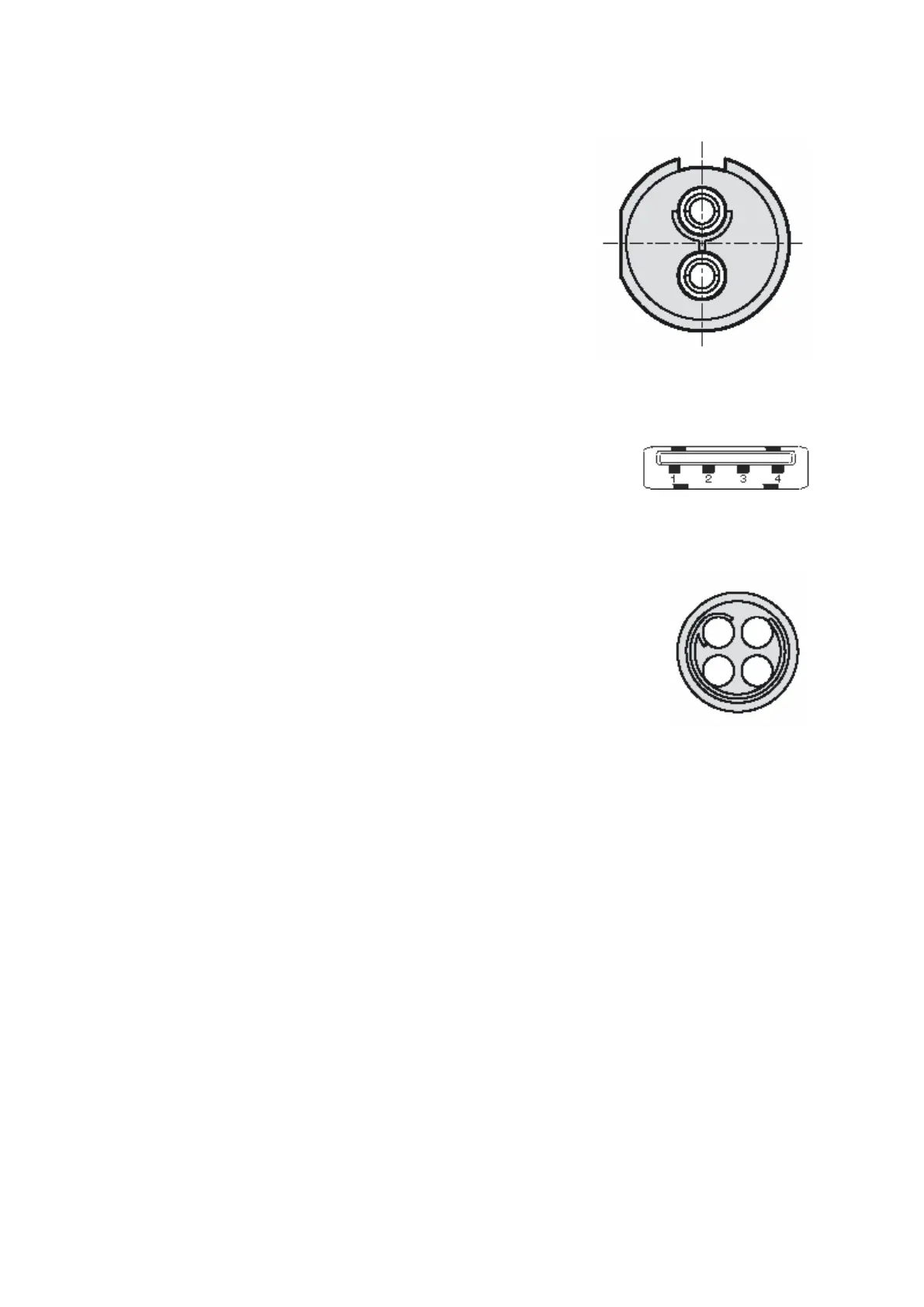

Pin-assignment for the 2 pin connector POWER
SUPPLY
Pin 1 +5 V
Pin 2 ground
USB cable
Pin-assignment for the 4 pin connector PC USB
Pin 1 +Vbus
Pin 2 D-
Pin 3 D+
Pin 4 ground digital
Pin-assignment for the 4 pin connector USB (Mini-
Snap)
Pin 1 D –
Pin 2 +Vbus
Pin 3 ground digital
Pin 4 D +
