G-Tec ZP120LCD - 6.4 NO Output Mode

-22-
The UPS does not have the backup function when it is in bypass
mode. The power used by the load is supplied from the utility power
via internal filter.
6.4 NO output mode

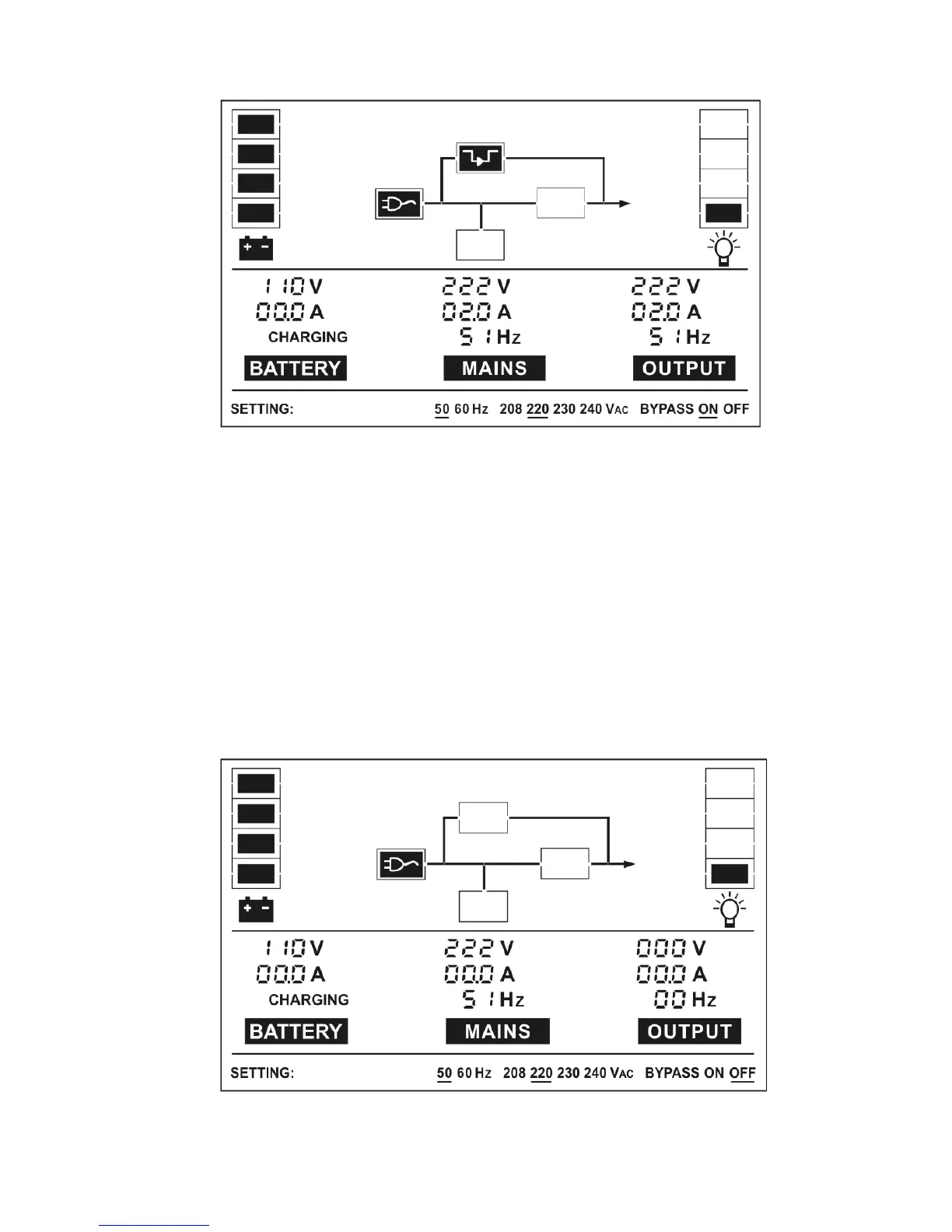

The LCD display in no output mode is shown in the following
diagram. The information about the utility power, the battery, the
UPS output and the load could be displayed.
■
■■
■
The B
ypass mode
■
■■
■
The NO output
mode
