Gaggia Concetto - 1 Machine Composition

CONCETTO
26/120
English
13
1617
18
10
11
9
8
32
1 4 5 6
7
14
15
12
19
20
21
28
>
<
en
t
esc
>
<
e
n
t
e
s
c
23
24
25
22
26
27

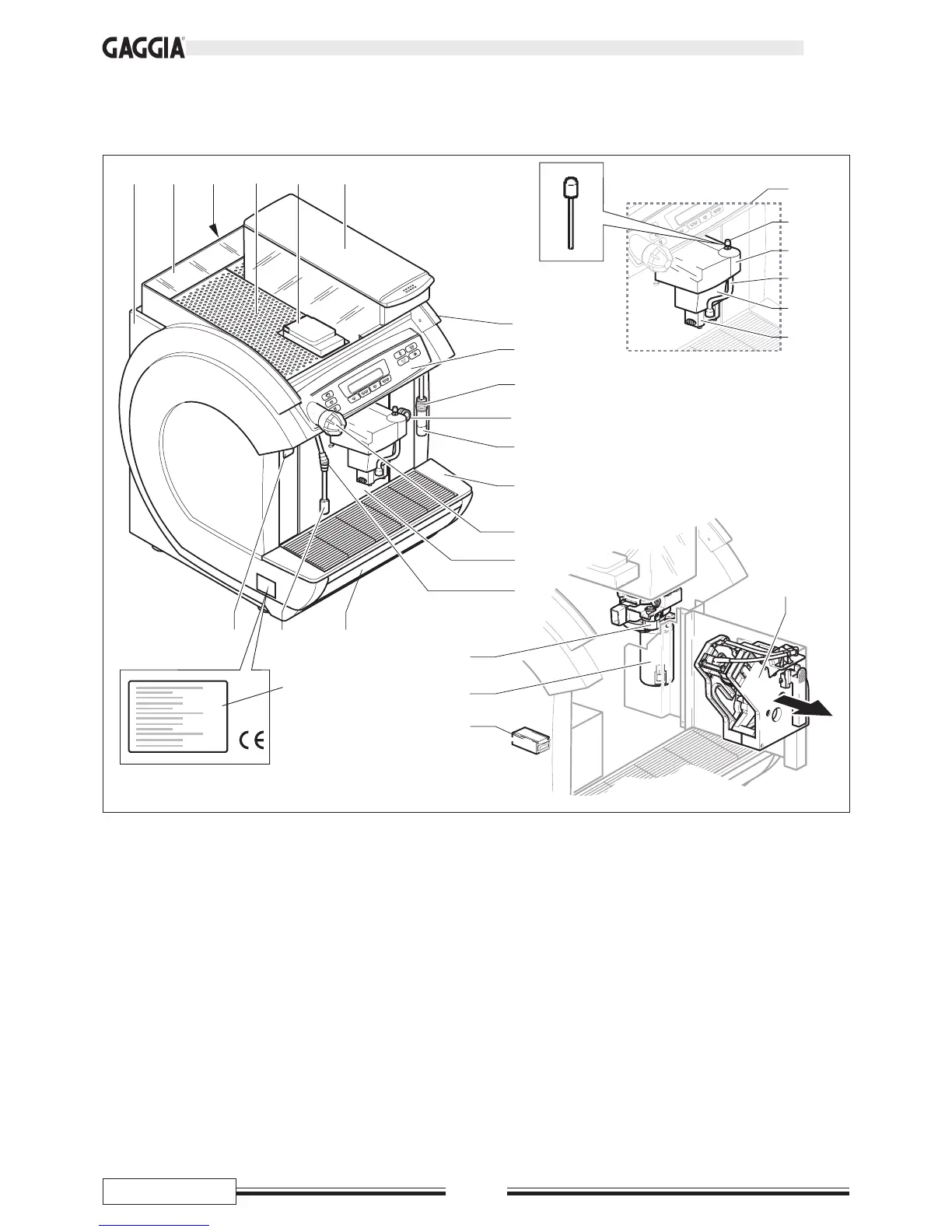

1 - MACHINE COMPOSITION
NOTE - If not differently indicated by the text, the position numbers of the parts of the machine always refer to this figure.
A CE label
1 Left hand side panel
2 Glass
3 Back panel
4 Cup warming plate
5 Pre-ground coffee door
6 Coffee bean hopper
7 Right hand side panel
8 Control panel
9 Rubber protector
10 Spout clamp (CAPPUCCINO set-up)
11 Hot water spout (except COFFEE set-up)
12 Drip tray
13 Steam knob (except COFFEE set-up)
Clockwise: steam jet open
Counterclockwise: steam jet closed
14 Door
15 Rubber protector
16 Dump box
17 Steam spout (except COFFEE set-up)
18 Main switch
“I” - Electrical functions enabled – Machine on –
Pilot light on.
“O” - Electrical functions disabled – Machine off -
“I” button pilot light off.
19 Grind adjustment knob
20 Grinder unit
21 Mechanical pulse counter
It displays the number of brewings.
22 Brew group
23 Cream adjusting pin (CAPPUCCINO set-up)
Upwards manually adjustable pin
24 Brew group cover
25 Milk brewing spout (CAPPUCCINO set-up)
26 Mobile spout
27 Telescopic spout
28 Coffee unit
F. 1
A
