CONCETTO
30/120
English
F. 5

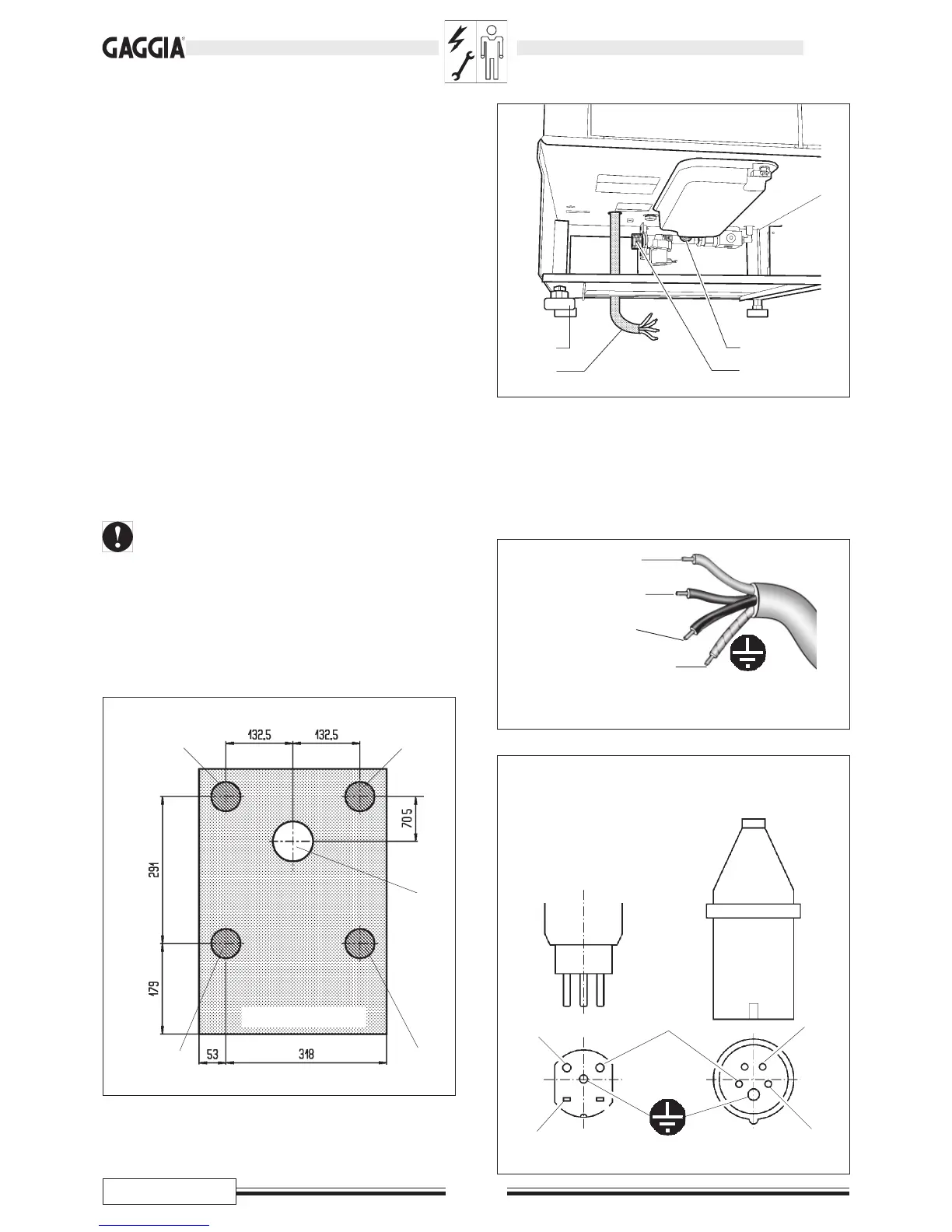

10 - INSTALLATION
10.1 Location notes
• The machine has to be installed in a dry and protected place,
at the following ambient temperature : 10° C - 40° C; maximum
humidity: 90%.
10.2 Positioning and water connection
NOTE - Check if the surface where the machine is installed has
the adequate dimension and solidity to support the
machine safely.
• Drill a hole in the support (A - F. 5).
• Place the machine on the support and insert the electric power
cord (B - F. 5) in the hole (A).
• Connect a drain tube to the coupling (C - F. 6) and fix it with a
rack clamp.
• Connect (using tube and coupling made of food materials only)
the machine to the drinking water network, through the coupling
(D - F. 6).
We suggest supplying the machine with water treated with
a descaling device, above all in case of a high calcium
and magnesium content (hard water).
• Place definitely the machine on the support (the circles E - F. 5,
indicate the suitable position of the adjustable feet).
• Level off the machine using the adjustable feet (F - F. 6).
F. 7
Neutral (N) – Blue
Phase (L
1
) – Brown
Phase (L
2
) – Black
Ground – Yellow/green
F. 8
CH
(Switzerland)
CEI
Power cord type H07RNF
section 4x2,5 mm
2
Connection of the two phase electric line plug 400 V2N~
10.3 Electric connection
NOTE - In case of plants with a 400 V two-phase current, use
the two phases to supply the machine with 230 V single
phase current (F. 7). As for the 230 V single-phase
connection, require the special installation kit (code
%1034.R09).
F. 6
L
1
L
2
N
L
2
L
1
A
E E
E
E
B
F
C
D
MACHINE FRONT
