Chapter 5 -- Cell Connections--Quartz Crystal Installation
5 - 2
Quartz Crystal Installation

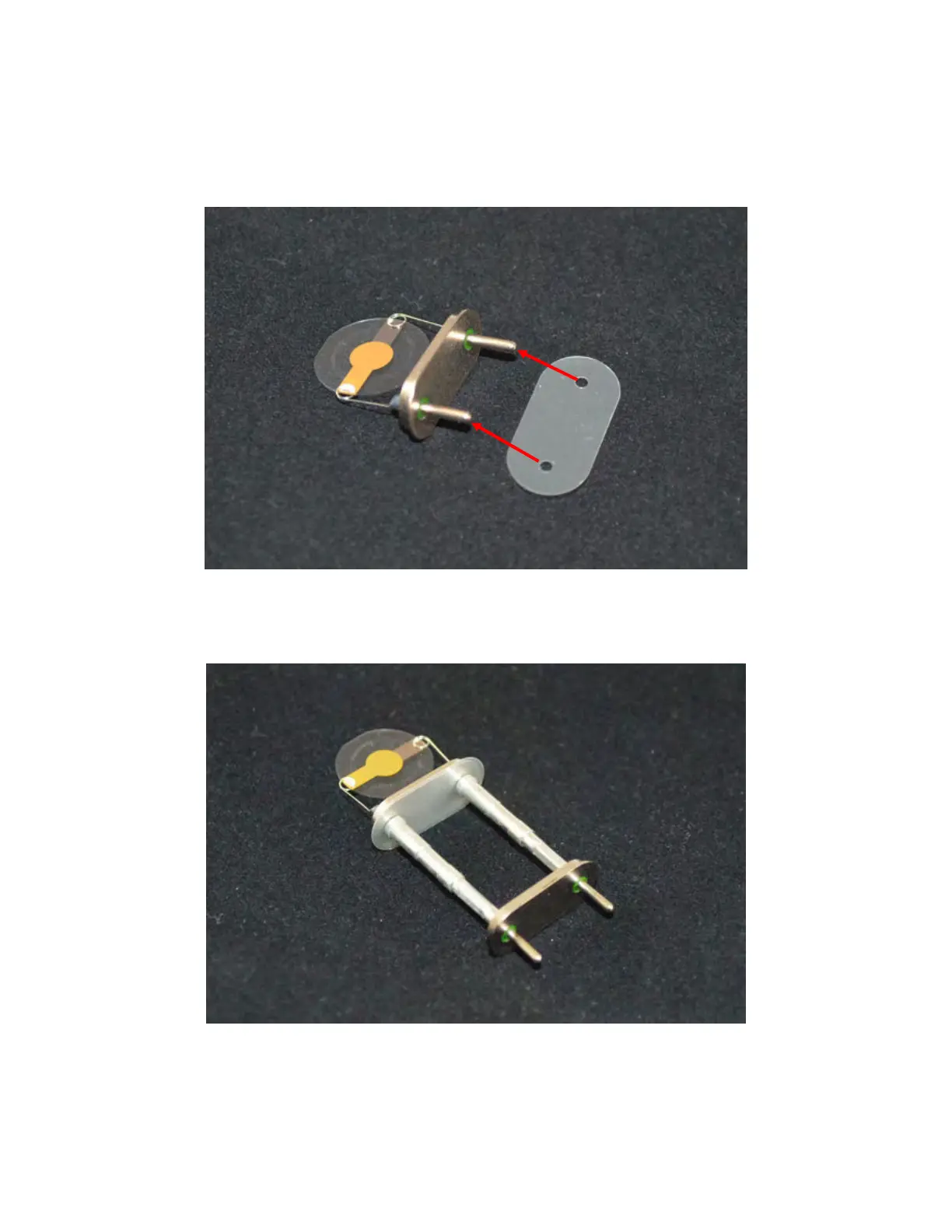

Place a clear plastic insulator on the quartz crystal and attach the adapter (see Figures 5.2 and 5.3).
Figure 5 - 2
Crystal with Plastic Insulator
Figure 5 - 3
Connection of Metal Adapter
Next, place the crystal, with the working face upward, on the bottom of the Teflon cell (see Figure 5.4).
