Chapter 5 -- Cell Connections--Quartz Crystal Installation
5 - 4

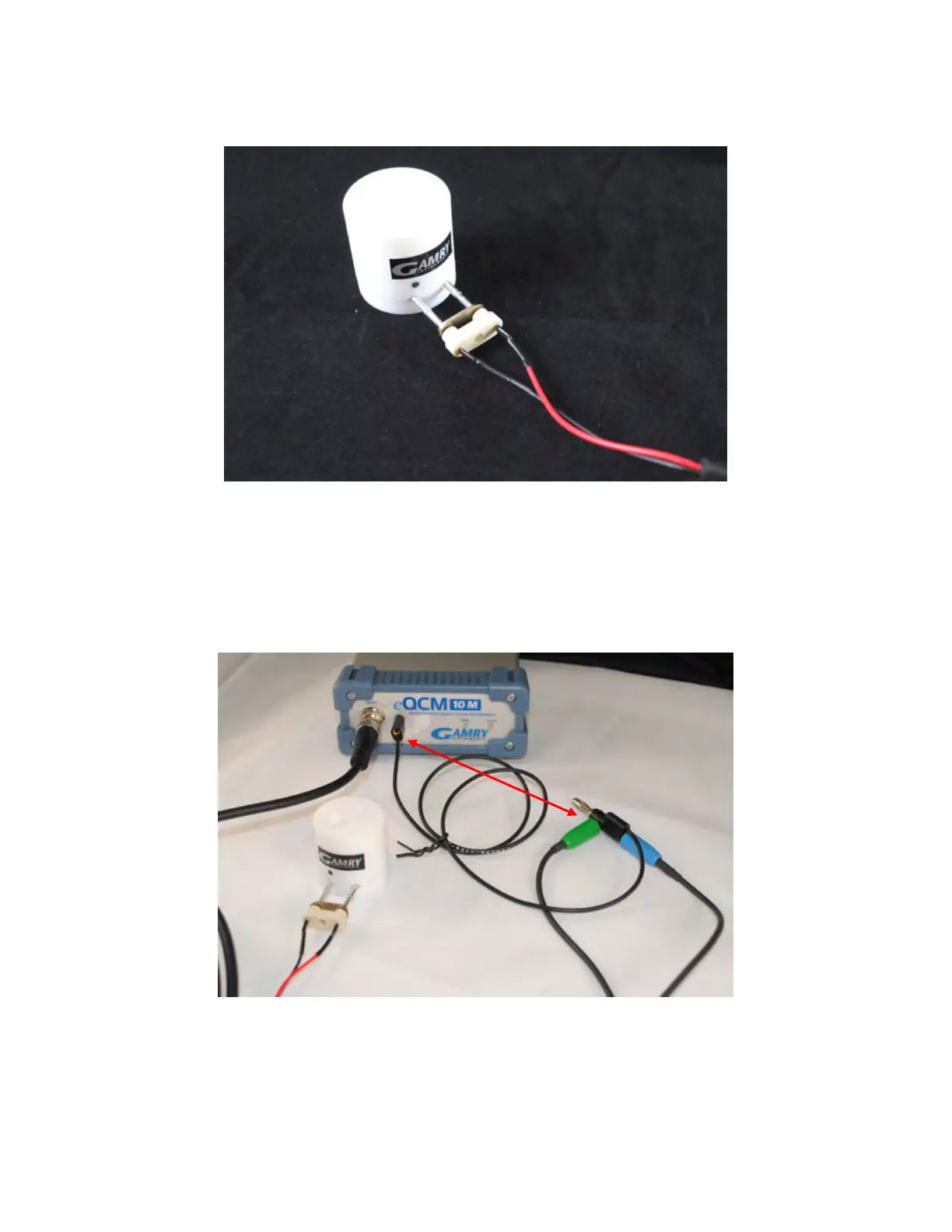

Figure 5 - 6
Connection of Cell to Ceramic Adapter
You were also supplied with a black – plug cable that gives you the ability to connect the working electrode of a
potentiostat to the quartz crystal. Plug the small end of the cable into the W.E. on the front panel of the eQCM
10M next to the BNC connector (see Figure 5.7). Connect the working and working sense leads of your
potentiostat to this cable.
Figure 5 - 7
Connection of Working (Green) and Working Sense (Blue) Leads to Crystal
A binding post on the rear panel of the eQCM 10M is provided for grounding purposes. A water pipe can be a
suitable source of earth ground or an AC mains ground is also suitable.
