IIDTool

User Manual : Version 33, Firmware V3.0

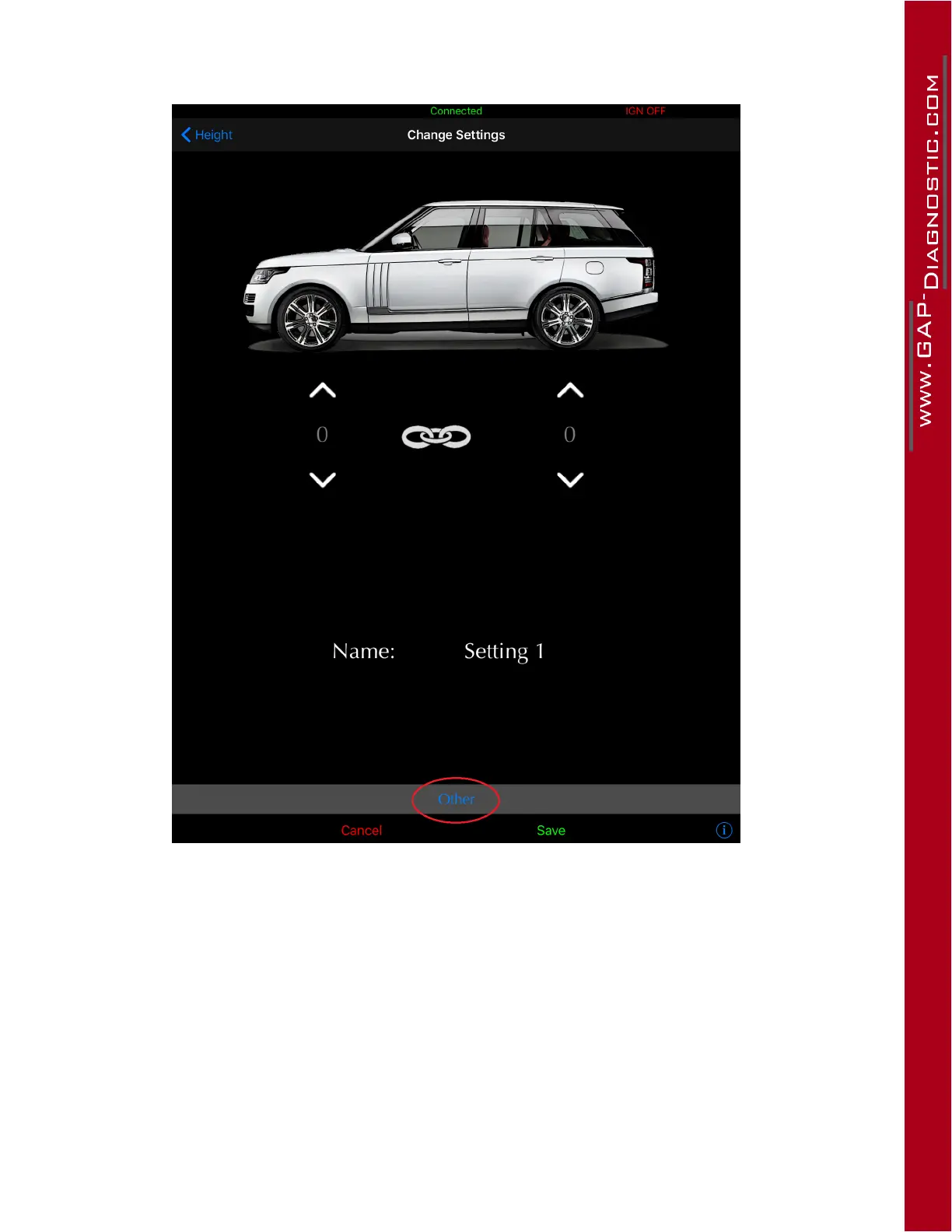

Select a setting and click on othertoaccesstheO󰀨-Road,AccessandMotorwaysettings.

Figure 51. App : Accessing other height modes
