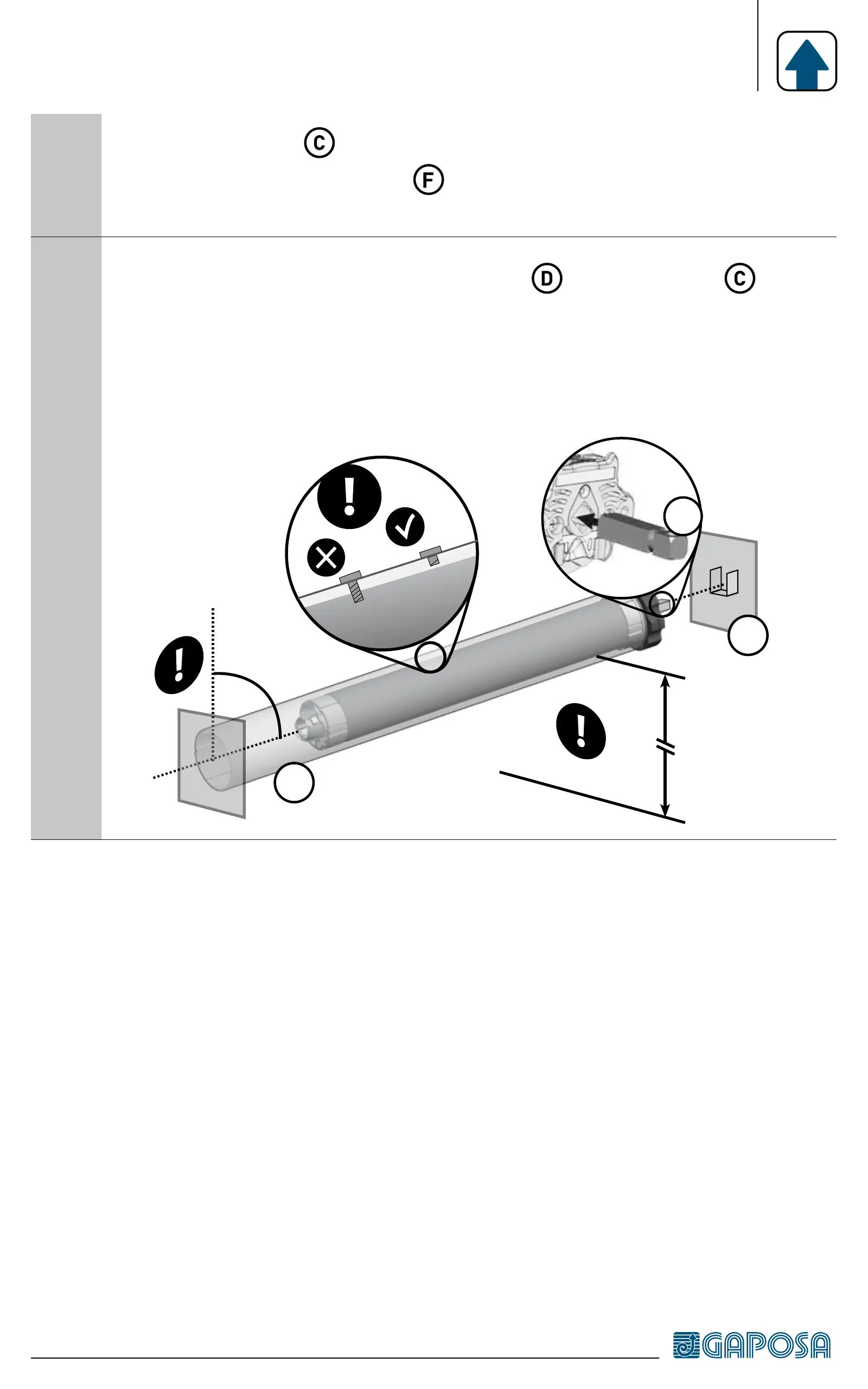

The fixing bracket must be fixed inside the box or on the awning
frame so that the roller tube
is perfectly horizontal and at a
height not less than 1,8m.
4
[FOR XQ50] Place the motor square pin on the bracket and
the cap at the opposite end of the tube on the fixing plate.
WARNING: Never hit on the head of the motor (D) when you
insert it into the tube.
F
90°
min1,8
m
C
D
NOTES
•FortheXQ50,withtorqueupto15Nm,theminimumtubediameteris50x1,5mm;
formotorswithhighertorques,theminimumtubediameteris60x1,5mm.
•FortheXQ60,theminimumtubediameteris63x1,5mm.

WA RNING:
•Thescrewsusedtoxthelastslatonthetubemaybetoolongandreachthe
tubularpartofthemotor.Useappropriatescrewsorxingclips.
•Motormovingpartsinstalledunder2,5mfromthegroundmustbeprotected.
•Awrongmotorinstallationcandamagepersonsorobjects.
INSTALLATION
