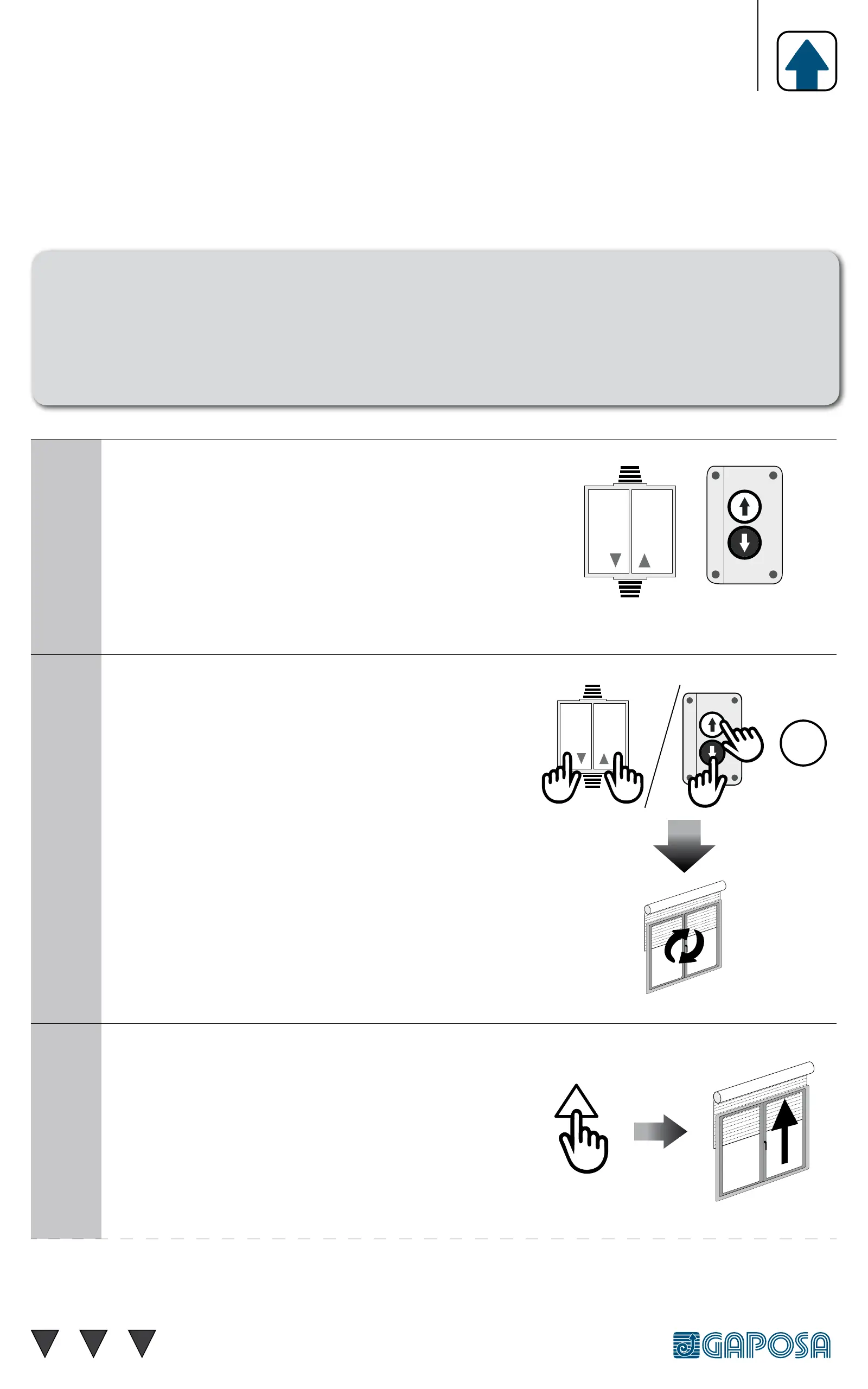

Connect the motor to the
pushbutton ACPRE/ACPRET
ACPRE ACPRET
STOP STOP
2
Press Up and Down buttons simul-
taneously until the motor jogs
STOP STOP
15”
3
Press the Up button and release it
only when the motor stops because
the shutter/awning has reached the
Up stops. Up limit switch is set
SETTING WITH
PUSHBUTTON TOOL
ACPRET/ACPRE (option)
OPTION 1.
Shutter with mechanical stops
or cassette awnings
