HARDTOP LIFTER INSTALLATION
3. Width Adjuster
1. Slide the narrow width adjusters (with the hook ends)
int
o the wider ones and through the square end of the
length adjuster. The short width adjusters (D) go in back
and the long ones (E) in front.
2. P
lace long pins (F) so that each pin holds three parts in
place. Adjustments can be made later. (Fig 3.2)
4. Foam Blocks
1. Slide the foam blocks (H) ont
o the width adjusters in
the positions shown. (Fig 4.1)

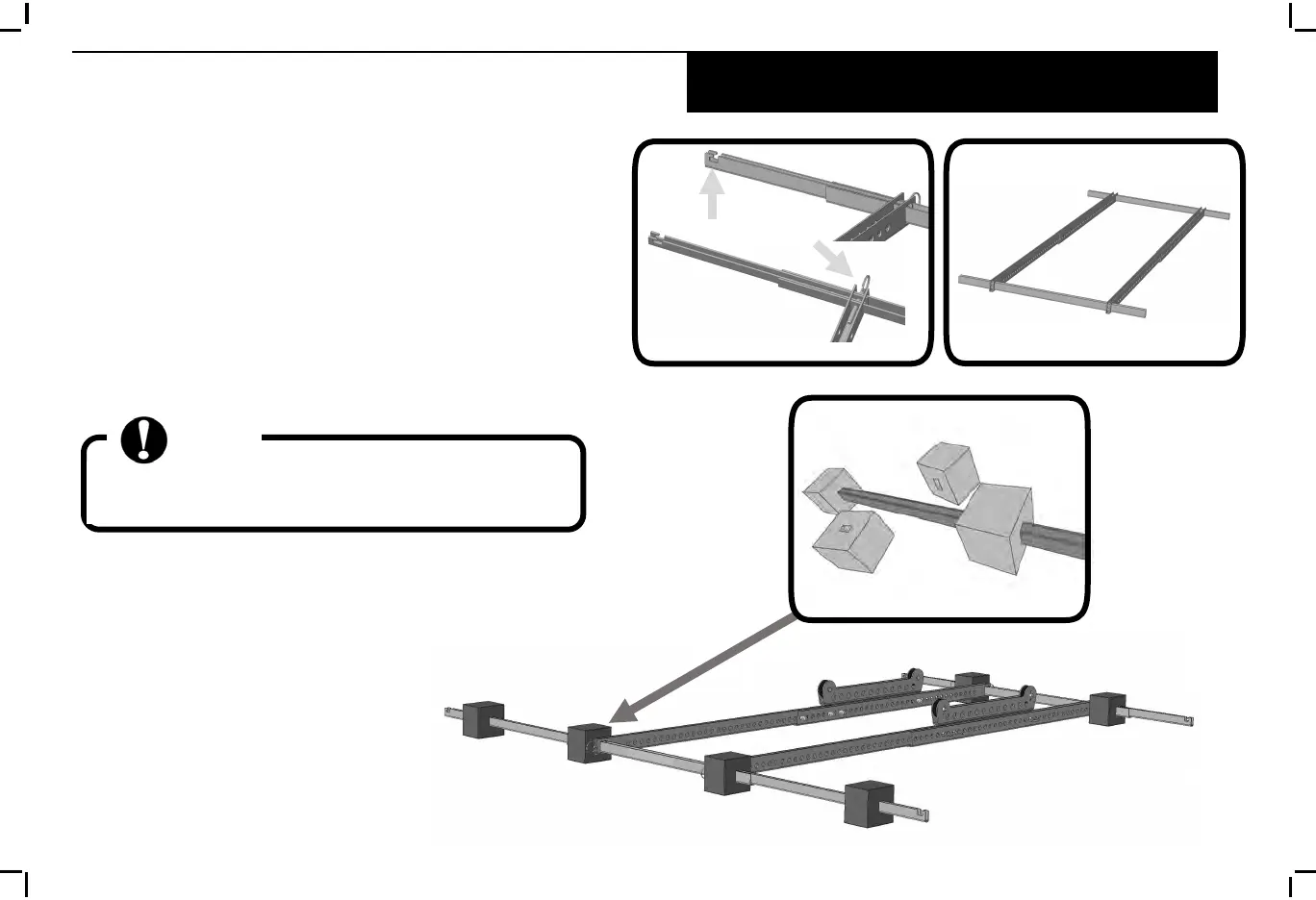

Fig 3.2
ASSEMBLY
Front
Back
Bac
k
Front
Fig 4.1
H
The front and back half of the frame are still not
connected
.
(Fig 3.3)
NOTE
Fig 3.3
9
To Next Page
