Instructions for
submersible pump 7000
When you purchase your pump the swivel
feet are set to the flat suction position
(1 mm).
v For normal operation, turn the feet 180°
to 5 mm.
The pump is lifted 5 mm.
v Clear the outlet line before use.
Thermal protection switch
The pump is automatically switched off on
overheating by the built-in thermal motor
protector. After having cooled down, the
motor automatically switches on again (see
7. Trouble Shooting).
Automatic deaerating valve
The automatic
deaerating valve
eliminates any
air pockets in the
pump.
If the pump is half submersed, water may
come out of the ventilation holes
4
.
This is not a defect of your pump, but serves
to deaerate the pump.
3. Initial Operation
13 mm (
¹⁄₂
"
)
Hose diameter 16 mm (
⁵⁄₈
"
) 25 mm (1
"
) 38 mm (1
¹⁄₂
"
)
19 mm (
³⁄₄
"
)
Hose connection
of universal fitting
7

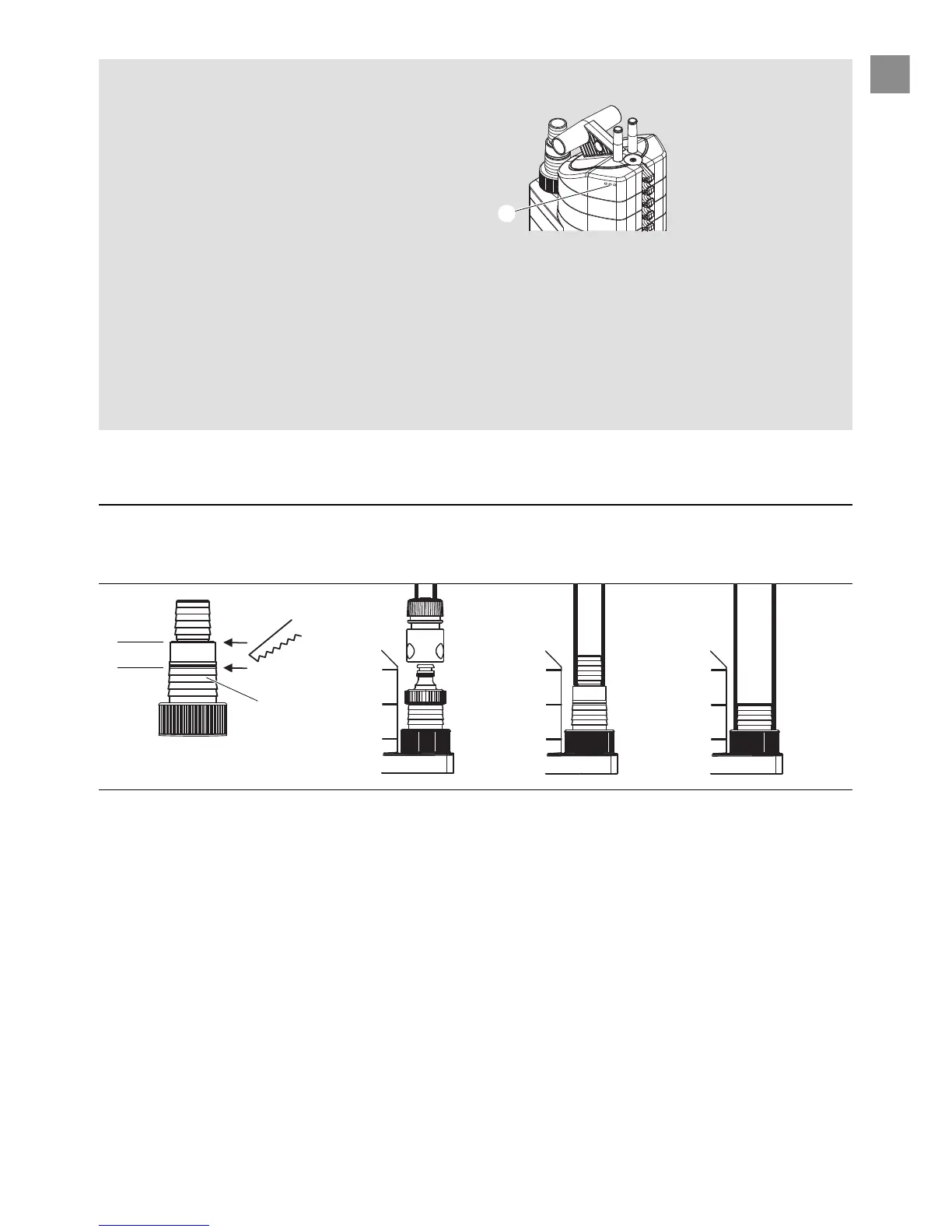

Hose connection Cut off topmost Do not cut off Cut off top two
nipple at
a
. any nipples. nipples at
b
.
The following connection kits are required for 13 mm to
19 mm connections:
13 mm (
¹⁄₂
"
): GARDENA Pump Connection Set, Art. No. 1750
16 mm (
⁵⁄₈
"
): GARDENA Tap Connector, Art. No. (2)902,
and GARDENA Standard Hose Connector,
Art. No. (2)916
19 mm (
³⁄₄
"
): GARDENA Pump Connection Set, Art. No. 1752
Best results in delivery capacity are achieved when using 38 mm
(1
¹⁄₂
"
) hoses.
7
a
b
4
