14
GB
Automatic operation:
The universal fitting
7
allows you to connect all the hoses listed
in the previous table.

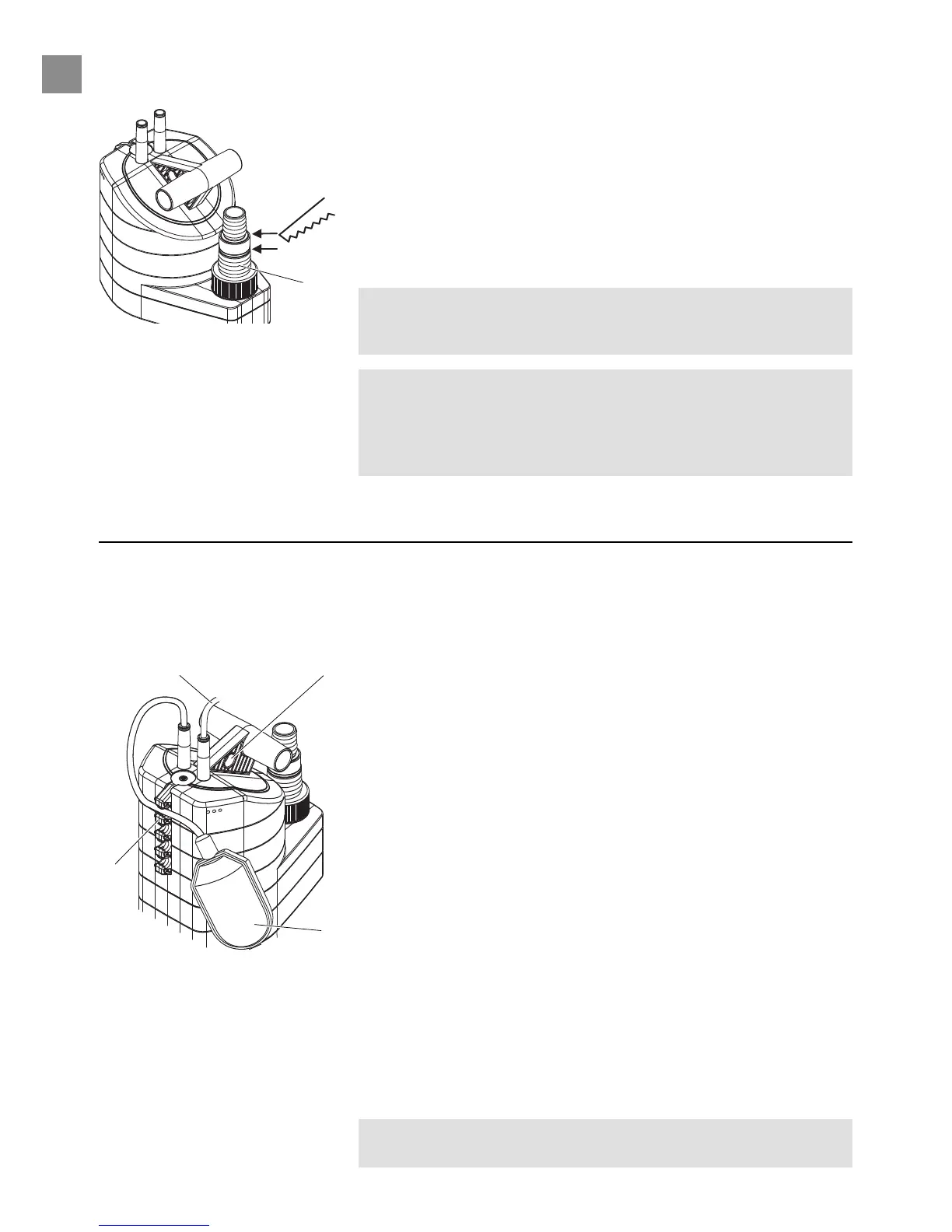

1. Cut off nipples of the universal fitting
7
, which are not needed,
to match the hose connection.
2. Screw the universal fitting
7
onto the pump.
3. Connect the hose to the universal fitting
7
.
We recommend 38 mm (1
¹⁄₂
"
) 25 mm (1
"
) hoses, in addition to be
fixed with a GARDENA Hose Clamps Art. No. 7192 (for 25 mm)
and Art. No. 7193 (for 38 mm).
Only for the submersible pump 7000:
For flat suction we recommend using a 13 mm (
¹⁄₂
"
) or 16 mm
(
⁵⁄₈
"
) hose.
Only for 13 mm (
¹⁄₂
"
) hose:
The universal fitting
7
can also be equipped with a GARDENA
Regulator Valve Art. No. 977 so that the contents of the out-
let line do not flow back through the pump after pumping. The
Regulator Valve can be ordered from your GARDENA dealer.
4. Operation
The float switch
5
turns the pump on automatically when the
water level exceeds the cut-in height and the water is pumped out.
The float switch
5
turns the pump off again as soon as the water
level falls below the cut-out height.
1. Stand the pump on a firm surface
– or –
use a rope attached through the bore hole in the carrying
handle
2
to immerse the pump in a well or shaft.
During automatic operation, ensure that the float switch
5
can move freely.
2. Plug the power cable
1
into a mains socket.
Adjusting the Cut-in and Cut-out Height:
The maximum cut-in height and minimum cut-out height (see
8. Technical Data) can be adjusted.
v Press the cable of the float switch
5
into an opening in the float
switch lock
3
.
Do not select a cable length that is too long or short to ensure
that the float switch can turn on and off properly.
• The higher the opening of the float switch lock
3
, the higher
the cut-in and cut-out height.
• The shorter the length of cable between the float switch
5
and the float switch lock
3
, the lower the cut-in height and the
higher the cut-out height.
The cable length between the float switch
5
and the float switch
lock
3
must always be at least 10 cm.
Connecting the hose:
1 2
5
3
7
