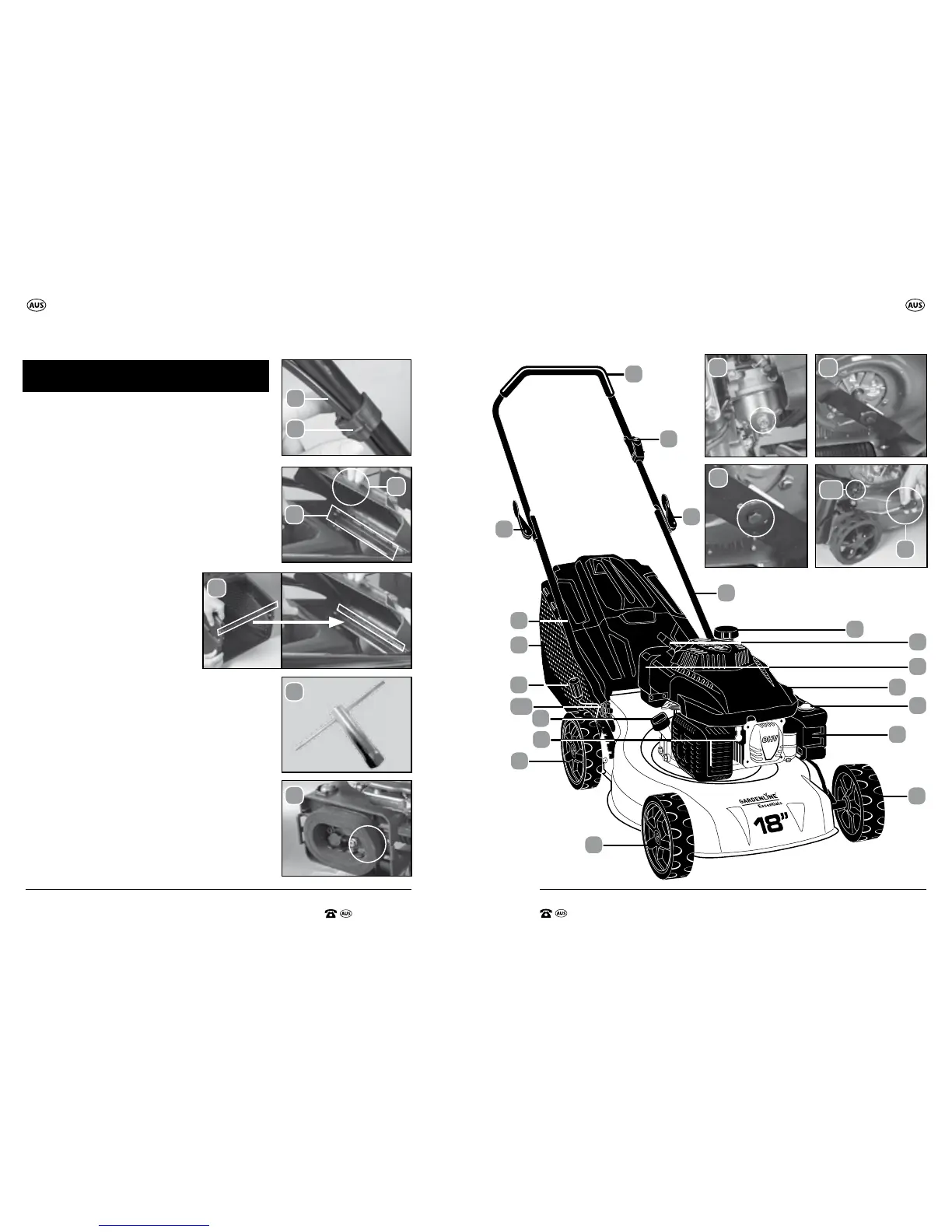

Parts List
1. Upper handle bar and handles
2. On/O Switch
3. On/O Switch Cable
4. Cable Clip
5. Upper handle locking Lever/s (x 2)
6. Lower handles
7. Hard catcher
8. Lower handle locking knob/s (x 2)
9. Lower handle mounting plate/s (x2)
10. Rear discharge guard
11. Catcher attachment bracket
12. Catcher attachment bar
13. Rear wheel/s (x2)
14. Fuel tank
15. Fuel tank cap
16. Recoil starter
17. Oil ller cap/dipstick
18. Spark Plug Spanner
19. Motor
20. Air lter
21. Air lter cover
22. Priming bulb
23. Fuel bowl drain screw
24. Spark plug cover / Spark Plug
25. Front wheel/s (x2)
26. Bar blade
27. Blade bolt
28. Height adjustment lever
25
7
17
13
28
8/9
6
5
2
5
6
25
24
22
16
14
19
21
15
1
20
18
12
11
27
23 26
4
3
28
8/9
Parts List Parts List
10
