Mealstream Ovens Pt. No. 32Z3403 Issue 16
Page 34
Stage 2
Stage 1

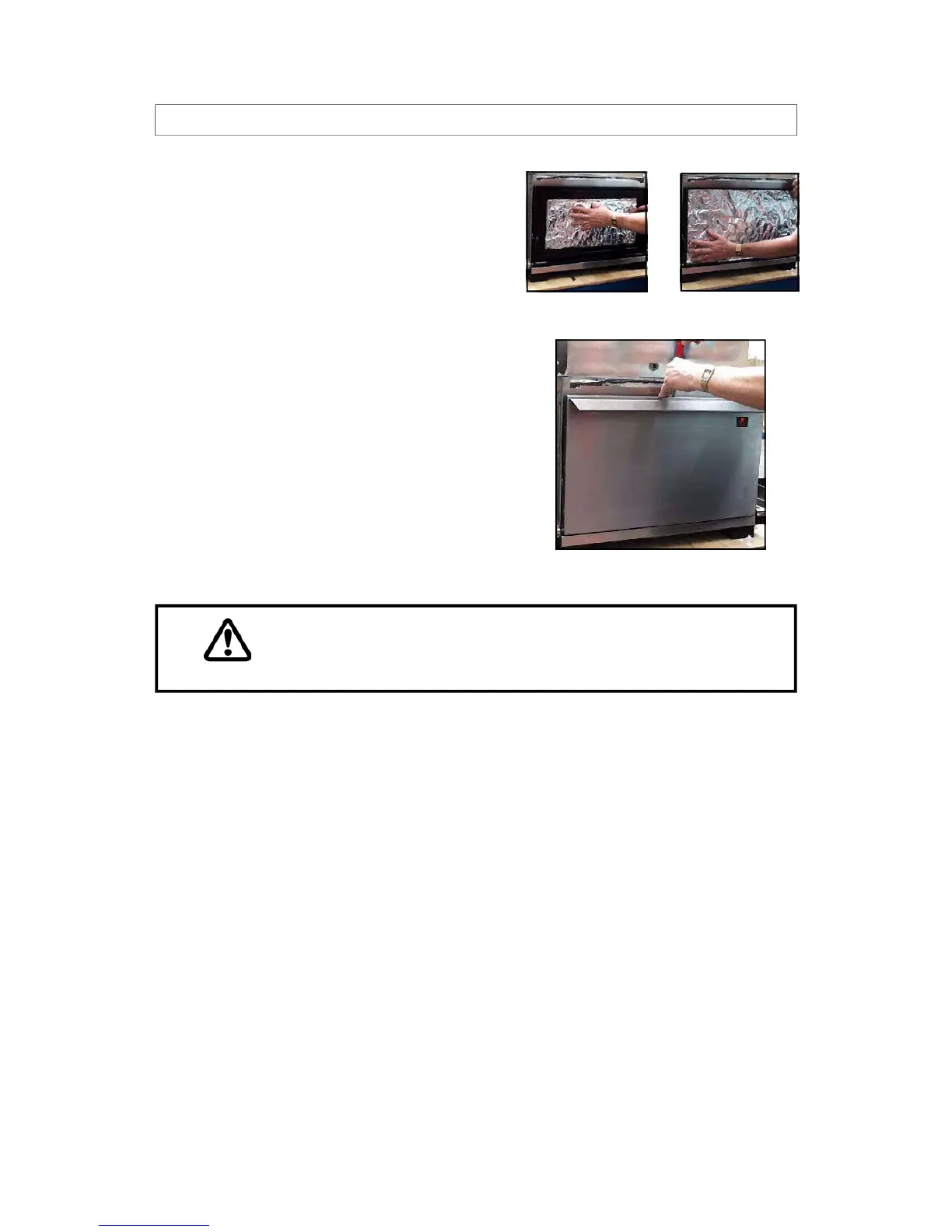

12. Fold the square piece oven insulation in half and
place it in the recess in the oven door. Place the
rectangular piece into the remainder of the door
(foil facing out).
13. Place the outer skin over the door frame
assembly and fix around the LHS, RHS & top
using 7 of M3x12 counter sunk screws around
the LHS, RHS and top of the door.
Squeeze skin onto door frame before tightening
up screws to ensure snug fit.
See matrix below for door skin assembly to
be used.
Grease up door arms where contact is made
with roller.
PROCEDURE FOR BUILDING AND FITTING MEALSTREAM DOOR (5)
Please note.
It is very important after completing this procedure,
to carry out a Door interlock adjustment and test procedure.
See pages 27-29.
