12 Part Number 4533030 Rev 1 07/2017
Installation Section 2

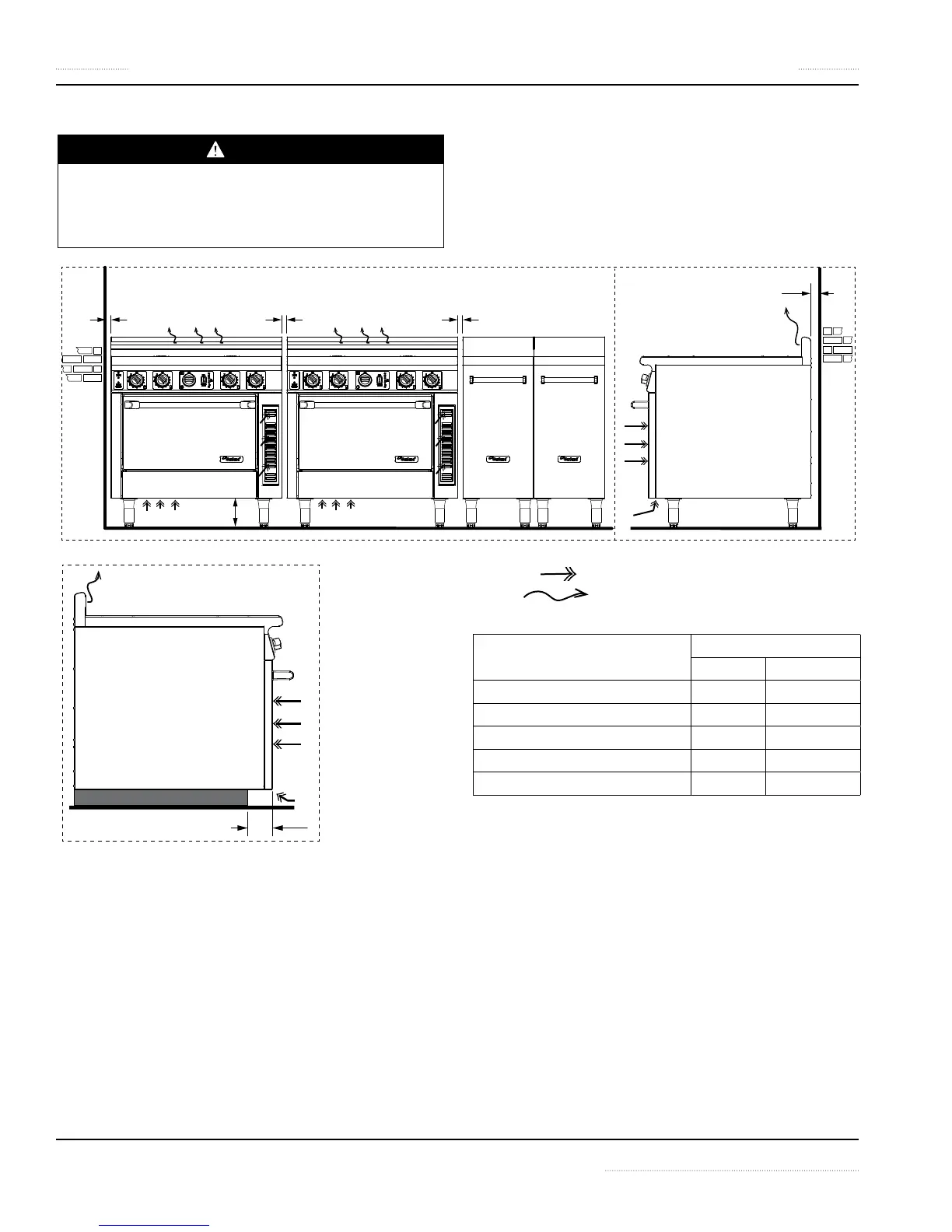

INSTALLATION CLEARANCE
DANGER
Risk of Fire or Shock or Equipment Failure
All minimum clearances must be maintained. Air intake
vents and exhaust vents must not be blocked or be
restricted by the installation.
NOTE:
• Adequate clearance must be provided for servicing,
ventilation and proper operation.
• The range must be kept clear of combustible material.
xxx
y
z
w
Direction of airflow—fresh air.
Direction of airflow—hot exhaust air.
Clearance Dimension
From Non-Combustible
MINIMUM
mm inch
x 0 0
y (with legs) 152 6
y (with casters) 127 5
z 0 0
w * 76 3
* When installed without legs on a non-combustible curb
or platform, the front of the unit should extend at least 3
inches or 76 mm such that the ventilation gap will not be
blocked.
