Part Number 4533030 Rev 1 07/2017 15
Section 2 Installation
④
③
⑤

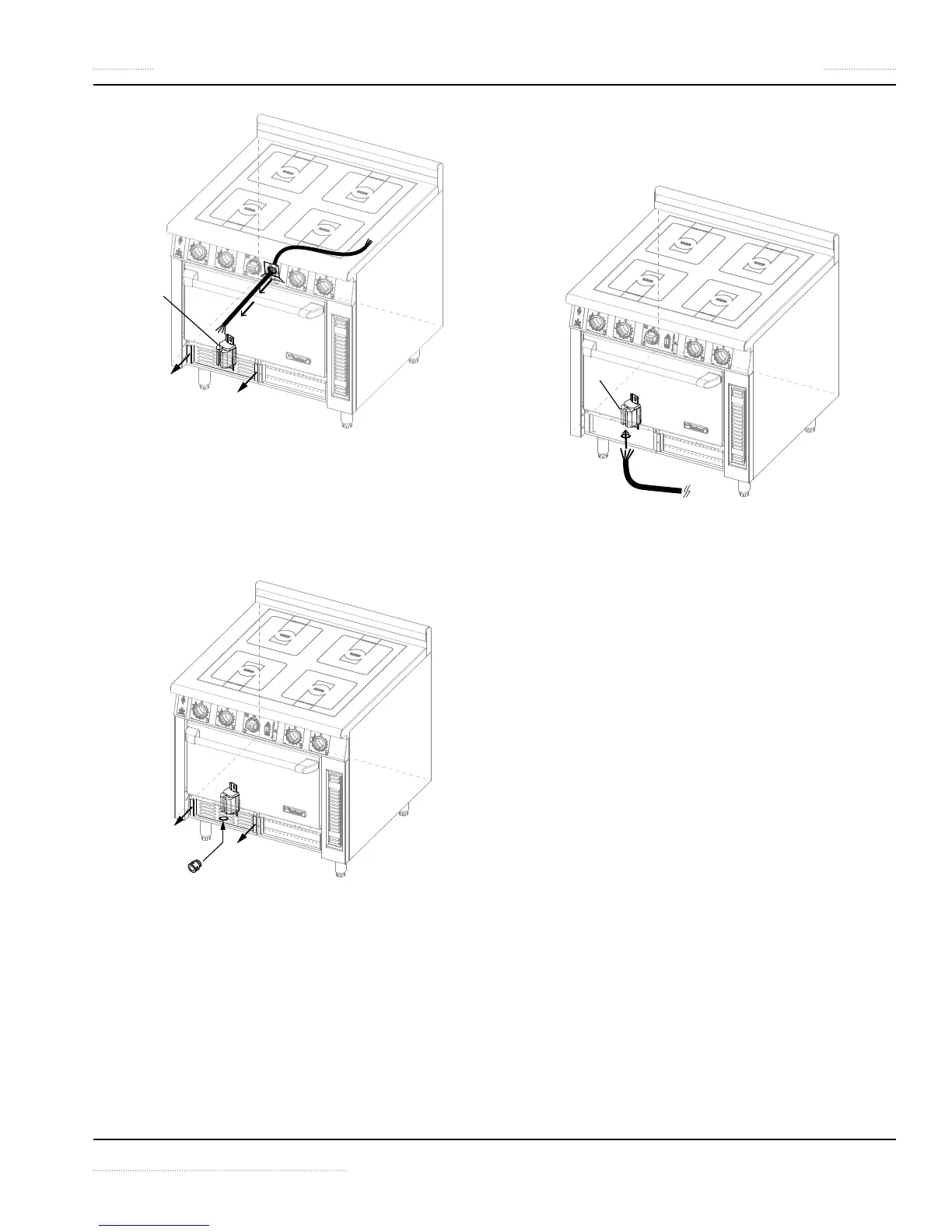

To route cable from the bottom:
1. To access the terminal block, open the kick-plate (not
shown) below the oven section and then remove the
electrical panel.
2. Install cable connector (NOT Included) to inlet. (Bottom
Knockout Plate)
①
②
3. Feed cable through the bottom inlet.
4. Make connections at terminal block (3 phases, neutral
and ground).
③
④
Commissioning
1. Open the kick-plate below the oven section and locate
the circuit breaker. Ensure all circuit breakers are set to
the ON (1) position.
2. Ensure that all controls are in the OFF position and turn
on the main electrical supply.
3. Perform function test for each section of the range in
accordance with the instructions given in Induction/
Oven Function Test and the Operating Instructions.
4. Check that the product functions correctly and that the
voltage supply to the unit does not drop more than 5%
when all sections are operated simultaneously.
