General Information Section 1
Serial Plate Location
The serial plate specifies the model number, serial number,
and electrical specifications of the appliance.
See illustration below for location.
GARLAND COMMERCIAL RANGES LTD.,
4527849 Rev. 2
!
R
ITEM
kW
S/N
Hz
MISSISSAUGA, ONT., CANADA MADE IN CANADA
A
MAX
1Ø
3Ø
MOD.
MIN
°C
CAUTION - ATTENTION:
USE SUPPLY WIRE SUITABLE FOR
EMPLOYEZ LE FIL APPROPRIÉ D'ALIMENTATION COMME INDIQUÉ
V
USE COPPER WIRE ONLY FOR
POWER SUPPLY CONNECTIONS
SUITABLE FOR COMBUSTIBLE FLOORS
MINIMUM INSTALL CLEARANCE:
POUR LES PLANCHERS COMBUSTIBLES
DISTANCE MINIMUM D'INSTALLATION:
SIDE/CÔTÉ
REAR/ARRIÈRE REAR/ARRIÈRE
WARNING-RISK OF FIRE
NON-COMBUSTIBLE
COMBUSTIBLE
SIDE/CÔTÉ
V
kW A
3Ø
1Ø
AWG
" "
" "
C
NSF
R
US
MIN
AWG
Model Number
The model number is located on the serial plate. This
manual covers the following models:
GME36-I14C, GME36-I20C
READING THE MODEL NUMBER
Example:
G M E 36 - I 20 C
3 6 74 5
2
1
1 G Garland Brand
2 M Master Series
3 E Electric Equipment
4 36 Width, 36” model
5 I Garland Induction Range Top
6 14, 20 Four (4) 3.5kW or 5kW Hobs
7 C Garland Convection Oven
Serial Number
The serial number is located on the serial plate.
READING THE SERIAL NUMBER
Example:
16 04 1001 00289
3 4
2
1
1 Year of manufacture: 2015 (15), 2016 (16), ...
2 Month of manufacture: 01, 02, 03, 04, ...
3 Factory Code: Garland (1001)
4 5-Digit Sequential Number

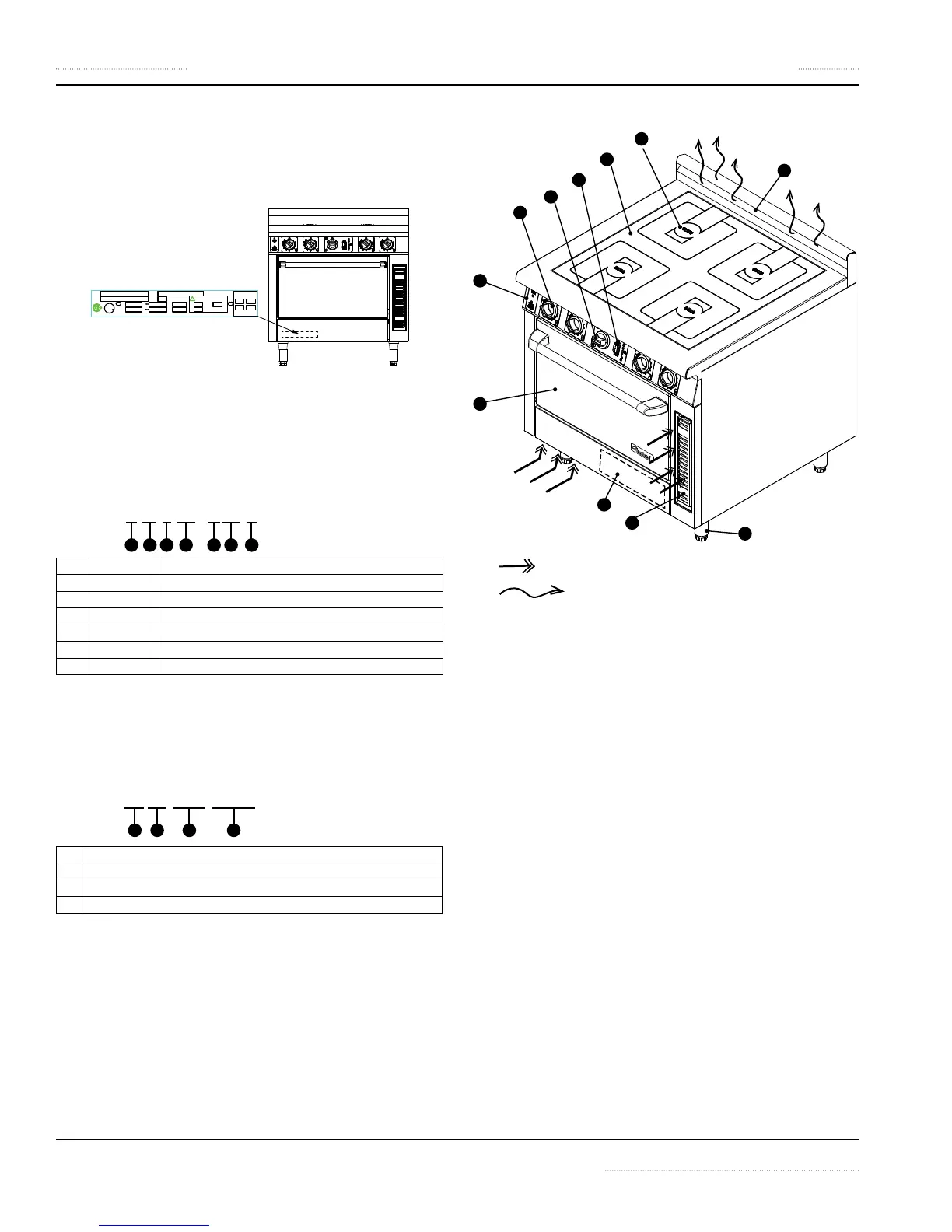

Main Features and Components
3
5
6
7
8
2
1
4
10
9
11
Direction of airflow—fresh air.
Direction of airflow—hot exhaust air.
Garland Induction Range Top
1. 4x 3.5kW or 5.0kW RTCSmp Induction hobs
2. Ceran® glass 6mm thick
3. Induction operation control with indicator lamp.
Control switch has a 360
o
rotation, power levels from 1
to 12.
Garland Convection Oven
4. Oven operation control (in F or C, specified on order)
5. Off-Cook-Cool, 3-position convection fan control
6. Efficient and quiet 5kW electric convection oven
Air Management System
7. Indicator lamp for internal cooling fans
8. Removable, dishwasher-safe fresh air intake filter,
hidden behind access panel. Filter must be inspected
and cleaned at least once a week.
9. Air system exhaust vent
Other Features
10. Integrated circuit breaker, for both induction and oven,
hidden behind kick-plate.
11. 6-inch [152mm] adjustable legs. Option: Polyurethane
(non-markings) swivel casters with front brakes or deck
fasteners.
To Next Page
