Specifications
42 Apollo SL30 Installation Manual

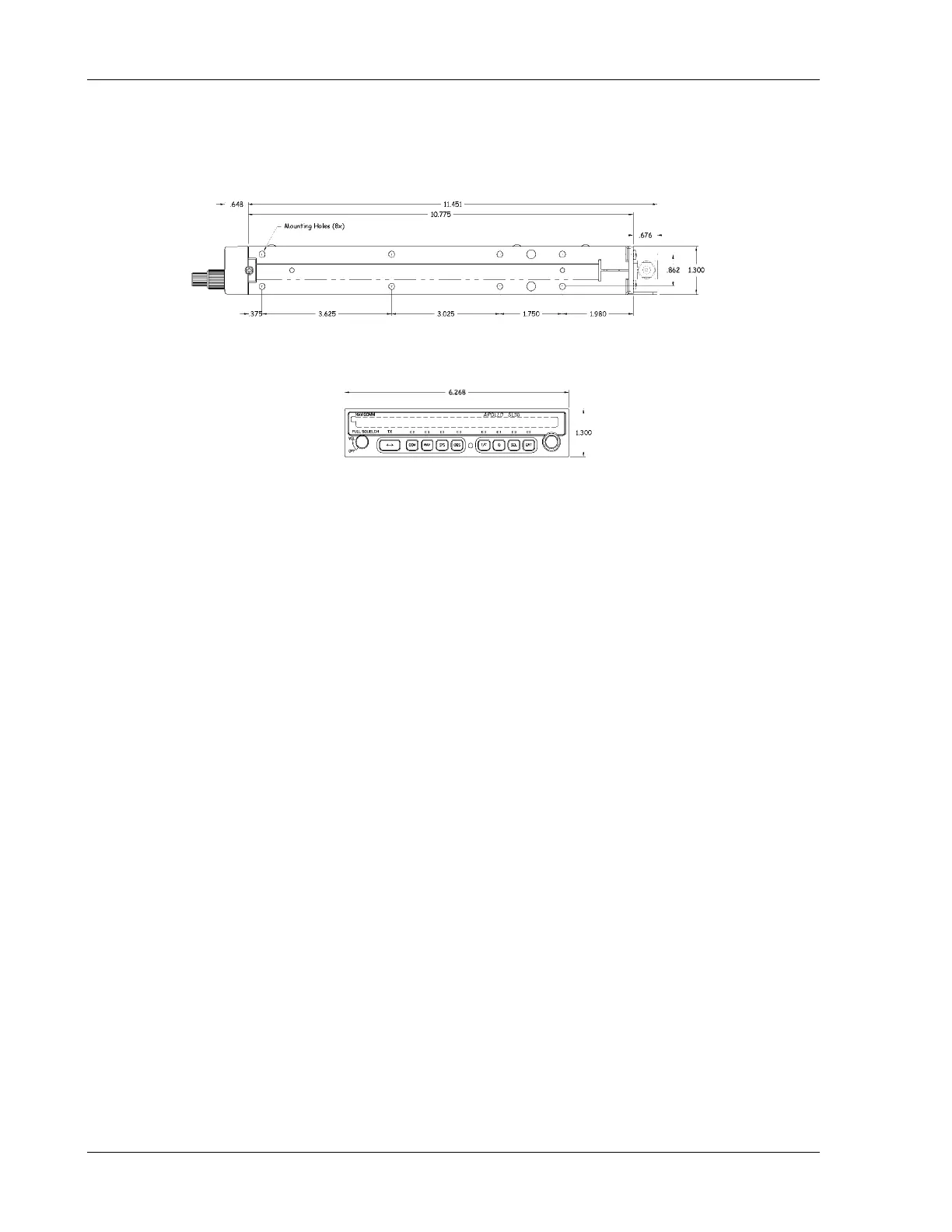

Figure 23 - Unit Dimensions
AVIONICS OUTPUTS
CDI L/R deviation ....................................±150 mV full scale, will drive up to 200-ohm load
TO/OFF/FROM flag .................................±250 mV, TO/FROM indication, will drive up to
200-ohm load
Nav valid flag............................................+300 mV for valid indication, will drive up to 200-
ohm load
Nav superflag............................................Vin - 2 volts minimum for valid, source capability
of 400 mA
GSI U/D deviation ....................................±150 mV full scale, will drive up to 200-ohm load
GS valid flag .............................................+300 mV for valid indication, will drive up to 200-
ohm load
GS superflag..............................................Vin - 2 volts minimum for valid, source capability
of 400 mA
Annunciators.............................................Open collector outputs capable of sinking up to
400 mA for turning on annunciator lamps
• BC
• Localizer
Power Control ...........................................Open collector output capable of sinking up to
50 mA. Active when unit is powered up.
