Garmin Boat Switch - X2 Wiring Harness; X2 Primary Wire Connections

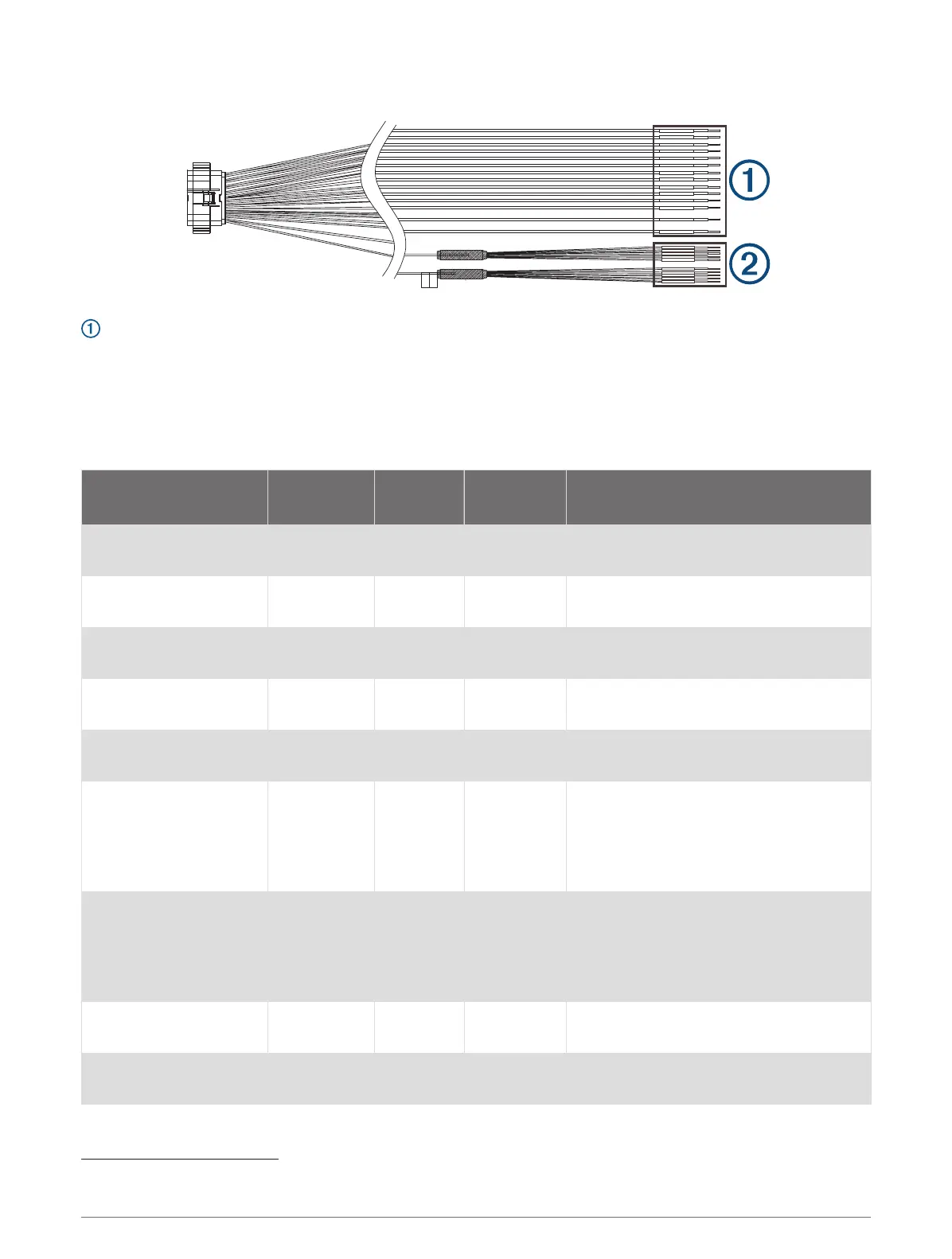

X2 Wiring Harness
X2 Primary Wire Connections
The primary wires on the X2 wiring harness connect to the appropriate devices on the vessel to allow for digital
control or monitoring. When connecting a device or devices to a wire on this harness, you must use the wire
gauge specified in the table at the very minimum. For long wire runs, you should consider using larger-diameter
(smaller gauge number) wire to minimize power loss.
NOTE: You should refer to ABYC or your local and regional standards when determining the maximum length
and gauge of wire extensions.
Wire Label Wire Color
Wire
Gauge
Software
Fuse Rating
Wire Function
CH 17-DIMMABLE
1(10A)
Gray 14 AWG 10A
Provides a dimmable latching switch
output
1
.
CH 18-DIMMABLE
2(10A)
Blue 14 AWG 10A
Provides a dimmable latching switch
output
1
.
CH 19-DIMMABLE
3(10A)
Orange 14 AWG 10A
Provides a dimmable latching switch
output
1
.
CH 20-DIMMABLE 4(5A) Purple 14 AWG 5A
Provides a dimmable latching switch
output
1
.
CH 21-DIMMABLE 5(5A) Green 14 AWG 5A
Provides a dimmable latching switch
output
1
.
CH 22-VOLT TANK 1 Pink 16 AWG N/A
Provides monitoring for Tank 1 voltage-
based sensor.
Must connect to ground using the CH 32
TANK SENSOR GROUND wire on the X2
wiring harness.
CH 23-VOLT TANK 2 White 16 AWG N/A
Provides monitoring for Tank 2 voltage-
based sensor.
Must connect to ground using the CH 32
TANK SENSOR GROUND wire on the X2
wiring harness.
CH 25-MOMENTARY 1
(10A)
Gray with
black stripe
14 AWG 10A Provides a momentary switch output
1
.
CH 26-MOMENTARY 2
(10A)
Blue with
black stripe
14 AWG 10A Provides a momentary switch output
1
.
1
All switches on the Garmin Boat Switch device must be configured in the chartplotter software to function properly (Switch Configuration, page 18)
