NOTICE
You should make sure the device is firmly secured in the cradle.
If the model uses a locking bracket, make sure the bracket is
firmly snapped shut. There is an audible click when the device
or locking bracket is installed correctly. If the device is not firmly
secured, it can lose power. The device can also fall out of the
cradle and become damaged if it is not firmly secured.

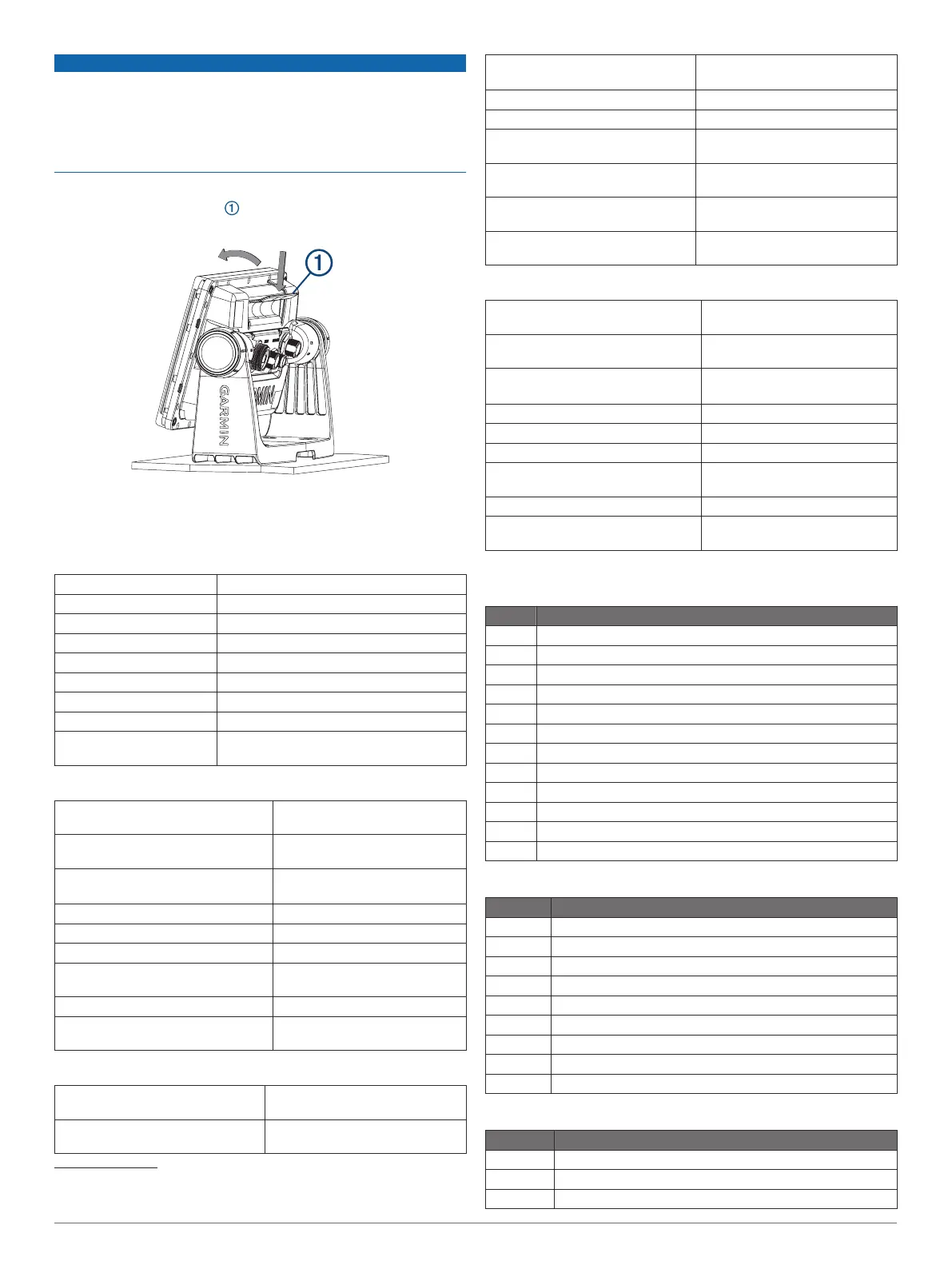

Removing the Device from the Cradle
1
Press the release lever on the cradle until the device is
released.
2
Tilt the device forward, and lift it out of the cradle.
Specifications
All Models
Material Polycarbonate plastic
Water rating IEC 60529 IPX7
1
Temperature range From -15° to 55°C (from 5° to 131°F)
Input voltage From 9 to 18 Vdc
Fuse 3 A, 125 V fast-acting
Compass-safe distance 65 cm (25.6 in.)
NMEA 2000 LEN @ 9 Vdc
2
1
NMEA 2000 draw
2
75 mA max.
Memory card 1 microSD
®
card slot; 32 GB max. card
size
6x Models
Dimensions (W x H x D) 21.8 x 13.0 x 6.2 cm (8.6 x 5.1 x
2.6 in.)
Dimensions in bail mount (W x H x
D)
25.9 x 16.1 x 6.2 cm (10.2 x 6.3
x 2.6 in.)
Display size (W x H) 13.7 x 7.7 cm (5.4 x 3.1 in.)
15.2 cm (6.2 in.) diagonal
Clearance to nearest obstruction 8 cm (3.1 in.)
Weight 0.75 kg (1.6 lb.)
Max. power draw at 10 Vdc 12 W
Typical current draw at 12 Vdc
(RMS)
0.7 A
Max. current draw at 12 Vdc (RMS) 1.25 A
Wireless frequency and transmit
power
2.4 GHz @ 17.2 dBm maximum
7x Models
Dimensions (W x H x D) 25 x 13.9 x 5.1 cm ( 9.8 x 5.5 x
2.0 in.)
Dimensions in bail mount (W x H x
D)
26 x 16.6 x 9.8 cm (10.2 x 6.5 x
3.9 in.)
1
The device withstands incidental exposure to water of up to 1 m for up to 30 min.
For more information, go to www.garmin.com/waterrating.
2
NMEA 2000 is available on ECHOMAP UHD 7x/9x models.
Display size (W x H) 15.5 x 8.6 cm (6.1 x 3.4 in.)
17.8 cm (7 in.) diagonal
Clearance to nearest obstruction 11.5 cm (4.5 in.)
Weight 0.77 kg (1.7 lb.)
Max. power draw at 10 Vdc 15 W, 9 W with a GT52
transducer
Typical current draw at 12 Vdc
(RMS)
0.8 A
Max. current draw at 12 Vdc
(RMS)1
1.25 A
Wireless frequency and transmit
power
2.4 GHz @ 18.5 dBm maximum
9x Models
Dimensions (W x H x D) 28.2 x 16.4 x 6.0 cm (11.4 x 6.5 x
2.4 in.)
Dimensions in bail mount (W x H x
D)
30.3 x 18.0 x 9.8 cm (11.4 x 6.5 x
3.9 in.)
Display size (W x H) 19.9 x 11.3 cm (7.8 x 4.8 in.)
22.9 cm (9 in.) diagonal
Clearance to nearest obstruction 11.5 cm (4.5 in.)
Weight 1 kg (2.3 lb.)
Max. power draw at 10 Vdc 18 W
Typical current draw at 12 Vdc
(RMS)
1 A
Max. current draw at 12 Vdc (RMS) 1.5 A
Wireless frequency and transmit
power
2.4 GHz @ 18.5 dBm maximum
NMEA 2000 PGN Information
Transmit and Receive
PGN Description
059392 ISO acknowledgment
059904 ISO request
060928 ISO address claim
126208 NMEA: Command, request, and acknowledge group function
126996 Product information
127250 Vessel heading
128259 Speed: Water referenced
128267 Water depth
129539 GNSS DOPs
129799 Radio frequency, mode, and power
130306 Wind data
130312 Temperature
Transmit
PGN Description
126464 Transmit and receive PGN list group function
127258 Magnetic Variance
129025 Position: Rapid update
129026 COG and SOG: Rapid update
129029 GNSS position data
129283 Cross track error
129284 Navigation data
129285 Navigation route and waypoint info
129540 GNSS satellites in view
Receive
PGN Description
127245 Rudder
127250 Vessel heading
127488 Engine parameters: Rapid update
5
