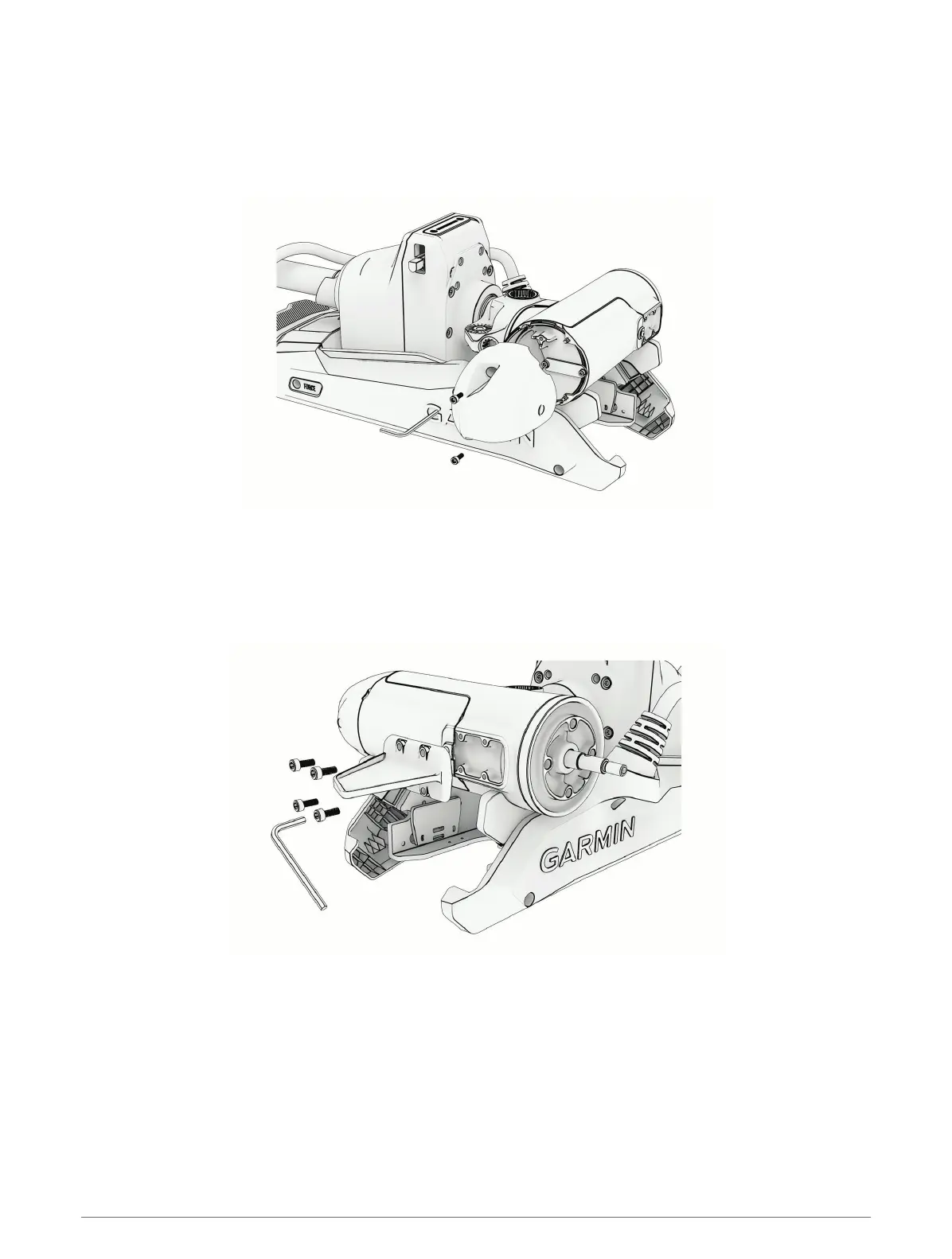

Installing the Nose Cone
NOTE: Most models come fully assembled. This procedure is only required for the 90-inch Force Kraken Trolling
Motor.
Using a 4mm hex bit or wrench, secure the nose cone to the front of the propeller drive motor using the two
included screws, ensuring the tab is on the bottom.
Installing the Skeg
NOTE: Most models come fully assembled. This procedure is only required for the 90-inch Force Kraken Trolling
Motor.
Using a 4mm hex bit or wrench, secure the skeg to the propeller drive motor using the four included screws,
ensuring the longer end of the skeg faces the propeller side.
