Connecting the Transducer to a Chartplotter
Select Force Kraken Trolling Motor models include a built-in transducer. If your model does not include a
transducer, you must install one before you can connect it to a compatible chartplotter.The built-in 12-pin
transducer is compatible with select Garmin
®
chartplotter models. Go to garmin.com or contact your Garmin
dealer for more information.
1 Route the transducer cable to the installed chartplotter. If necessary, connect the included extension cable or
a longer extension cable.
2 Install the locking collar on the end of the transducer cable.
3 Connect the transducer cable to the transducer port on the back of the chartplotter.
You can refer to the instructions provided with your chartplotter to identify the transducer port.
Stabilizer Installation
The stabilizer is an optional accessory that can help stabilize and provide additional support for the trolling
motor when it is in the stowed position.
NOTE: A stabilizer is only included with the Force Kraken Trolling Motor 90" model.
Installation instructions for the stabilizer are provided in the stabilizer box.
Remote Control Installation
The remote control connects to the trolling motor wirelessly and is paired at the factory.
Operation instructions are included in the Force Kraken Trolling Motor Quick Start Manual.

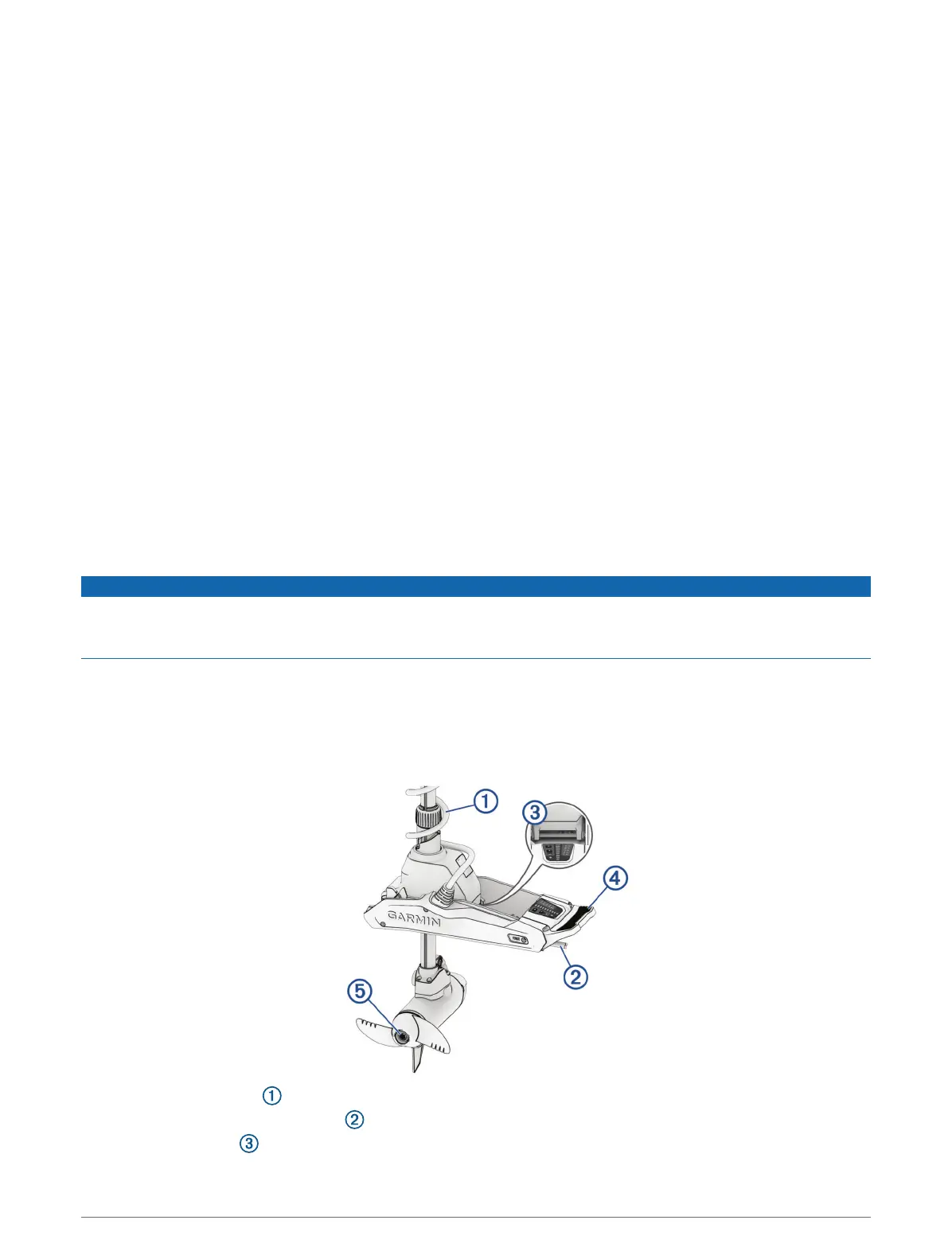

Maintenance Needs and Schedule
NOTICE
After using the motor in salt water or brackish water, you must rinse off the entire motor with fresh water, and
apply a water-based silicone spray using a soft cloth. You should avoid spraying jets of water at the cap on the
top of the shaft when rinsing the motor.
To maintain your warranty, you must perform a series of routine maintenance tasks as you prepare your motor
for the season. If you use or transport the motor in dry, dusty environments (traveling on gravel roads, for
example) you should perform these tasks more often during the season.
For detailed procedures and information on service and replacement parts, go to garmin.com/manuals/kraken
_trolling_motor to download the Force Kraken Trolling Motor Maintenance Manual.
• Examine the coil cable for wear, and replace it as necessary.
• Check and clean the power cables .
• Lubricate the hinge with marine grade grease.
