Garmin G3X Touch Installation Manual

190-01115-01 G3X/G3X Touch Installation Manual - GDU 37X Config and Post Install Checkout
Rev. AC Page 33-52
11. Engage the autopilot and verify it can be overpowered in both the pitch and roll axis. If the
autopilot cannot be overpowered, use the Autopilot Setup screen to reduce the MAX TORQUE
setting for the associated servo.

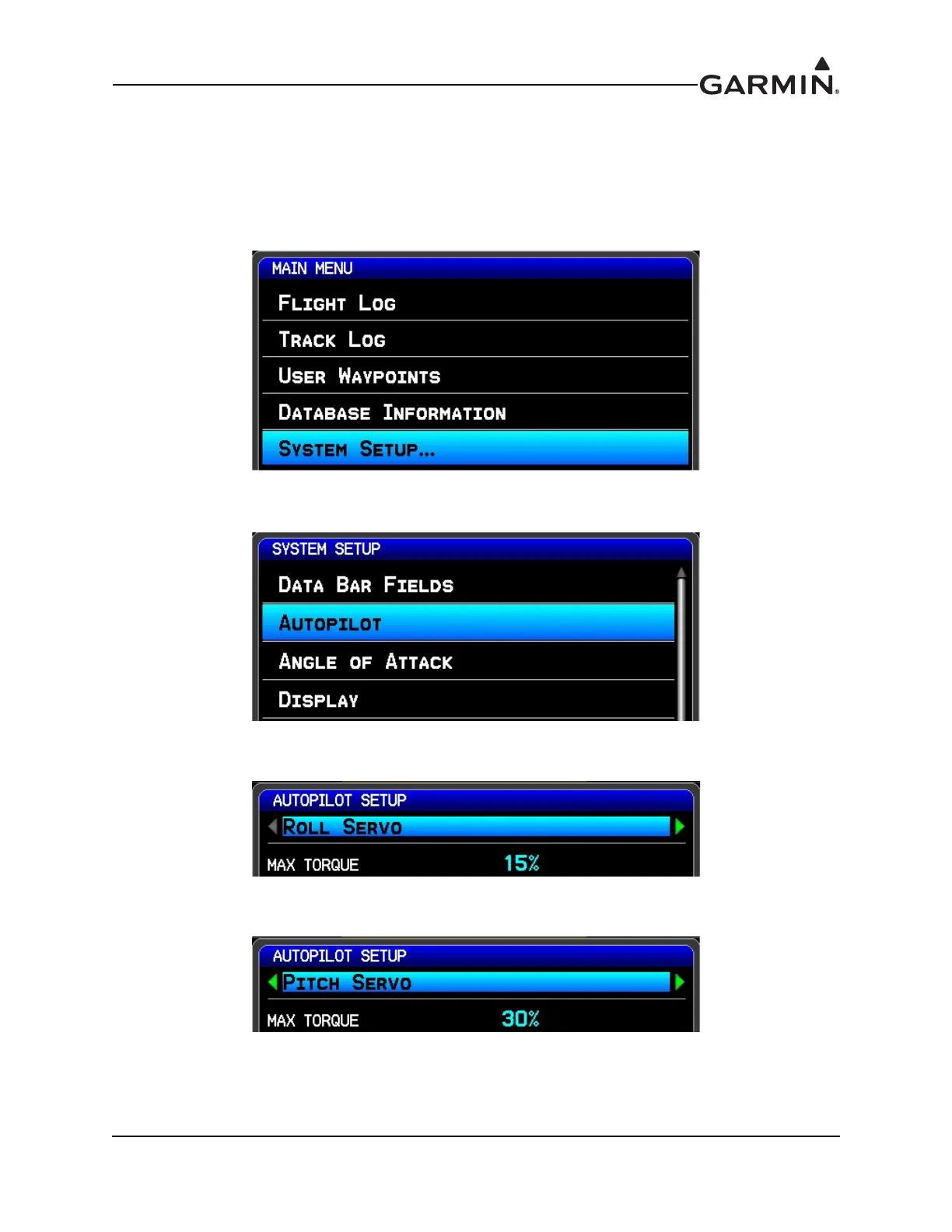

a) Press MENU two times on the GDU to enter the MAIN MENU page.
b) Select the SYSTEM SETUP page.
c) Select the AUTOPILOT page.
d) Select ROLL SERVO and set the MAX TORQUE.
e) Select PITCH SERVO and set the MAX TORQUE.

Garmin G3X Touch Specifications

General

Power Input	10-32 VDC
Touchscreen	Yes
Built-in GPS	Yes
AHRS	Yes
Air Data Computer	Yes
Aviation Database	Yes
Terrain Awareness	Yes
Operating Temperature	-20°C to +55°C
Display Size	10.6 inches
Display Type	LCD
Connectivity	Wi-Fi, Bluetooth, USB, RS-232, CAN bus
Engine Monitoring	Yes
Autopilot Compatibility	Yes
Traffic Awareness	Yes
Weather Data	Yes
