190-01115-01 G3X/G3X Touch Installation Manual - Airframe Specific Installation Guidance

Rev. AC Page A-18

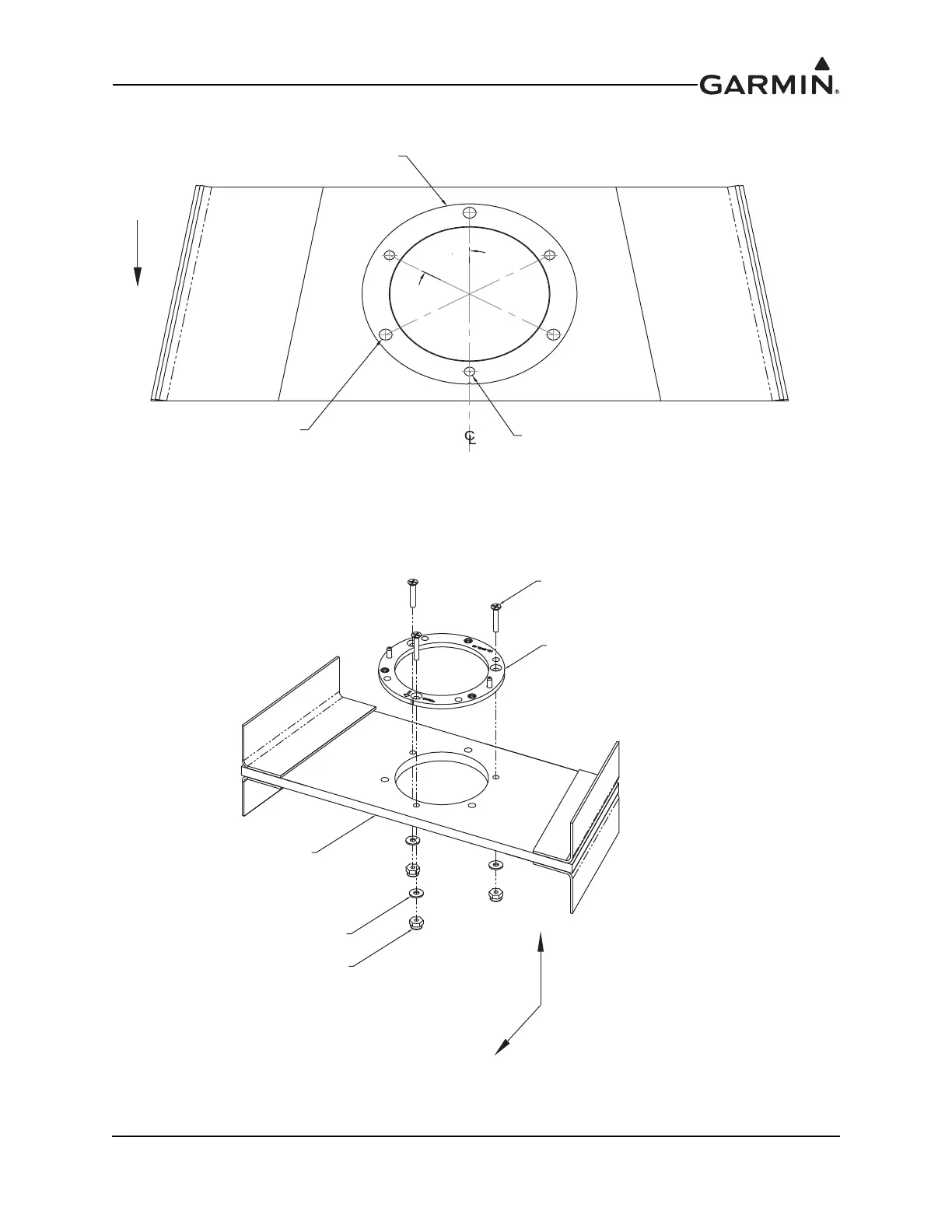

Figure A-26 Magnetometer Shelf With Hole Pattern For GMU 22 Installation Rack

7. Assemble the GMU 22 Installation Rack to the magnetometer shelf as shown in Figure A-27.

Figure A-27 Assembly Of GMU 22 Installation Rack To Magnetometer Shelf

60°

TYP

MARK LOCATION

Ø0.203

3 PLACES

MATCH DRILL Ø0.164

3 PLACES

FWD

115-00481-X0

GMU 22 INSTALLATION RACK

MAGNETOMETER SHELF (REF)

3X 6-32 STAINLESS SCREWS, 100° COUNTERSUNK

(MS24693C OR EQUIVALENT)

3X AN960C6 WASHERS

3X 6-32 STAINLESS NUTS

(MS21083C06 OR EQUIVALENT)

115-00481-X0 GMU 22

INSTALLATION RACK

FWD
