190-01115-01 G3X/G3X Touch Installation Manual - Airframe Specific Installation Guidance

Rev. AC Page A-13

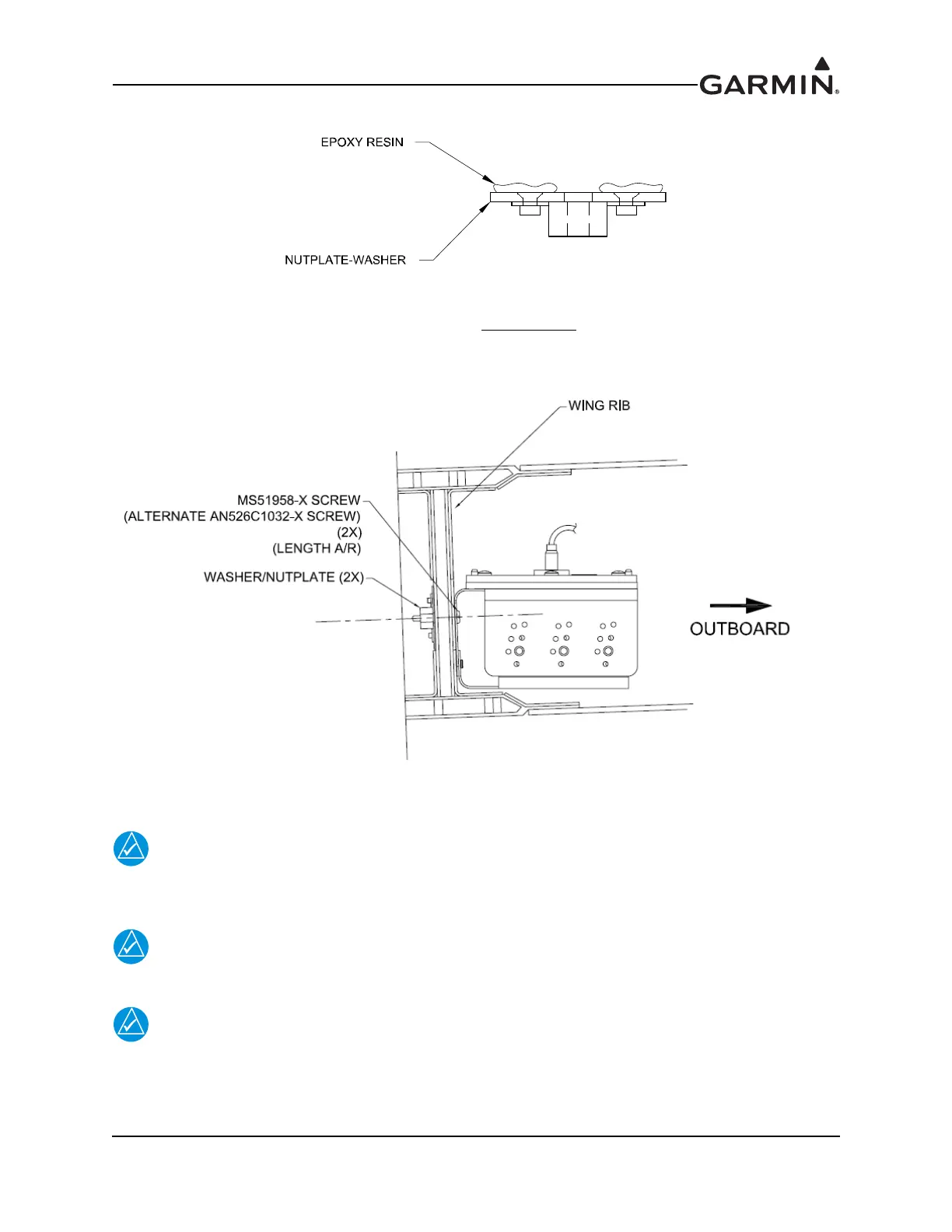

14. Apply epoxy resin to the flat side of the nut plate washers, see Figure A-17.

Figure A-17 Nut Plate Washers

15. Apply a small amount of release agent on the stainless steel

MS51958 screw threads.

16. Attach GMU assembly to wing rib as shown in Figure A-18.

Figure A-18 Magnetometer Assembly attached to Wing Rib

NOTE

Stainless steel hardware (nut plates and screws) must be used to attach the GMU 22

bracket to the wing.

NOTE

The wing tip should also be attached with stainless steel hardware (nut plates and screws).

NOTE

Never use a magnetic screwdriver to remove or install wingtip hardware.
