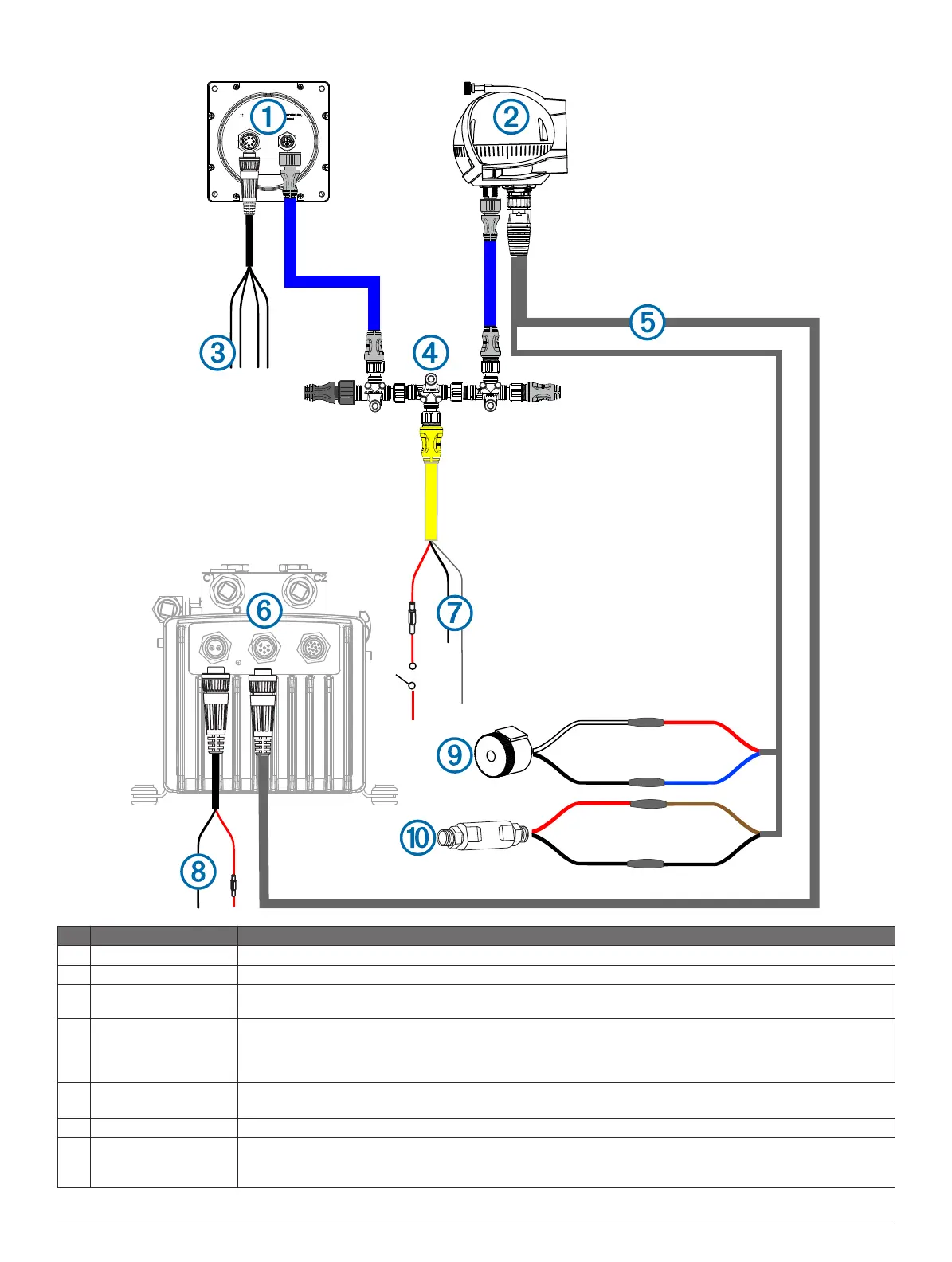

Item Description Important Considerations
À
Helm control
Á
CCU This is the compass ball.
Â
Helm control data cable This cable should be installed only if you are connecting the autopilot to optional NMEA 0183-compatible devices,
such as a wind sensor, a water-speed sensor, or a GPS device (page 13)
Ã
NMEA 2000 network The helm control and the CCU must be connected to a NMEA 2000 network using the included T-connectors
(page 2).
If there is not an existing NMEA 2000 network on your boat, you can build one using the supplied cables and
connectors (page 12).
Ä
CCU cable To extend this cable to reach the pump, purchase the necessary extensions (page 1).
This cable connects to the alarm and the shadow drive.
Å
Pump This diagram does not show any hydraulic connections. See page 6 for hydraulic-layout diagrams.
Æ
NMEA 2000 power
cable
This cable should be installed only if you are building a NMEA 2000 network. Do not install this cable if there is an
existing NMEA 2000 network on your boat (page 2).
The NMEA 2000 power cable must be connected to a 9–16 Vdc power source.
4
