Garmin GHP 20 Marine Autopilot System with SmartPump User Manual

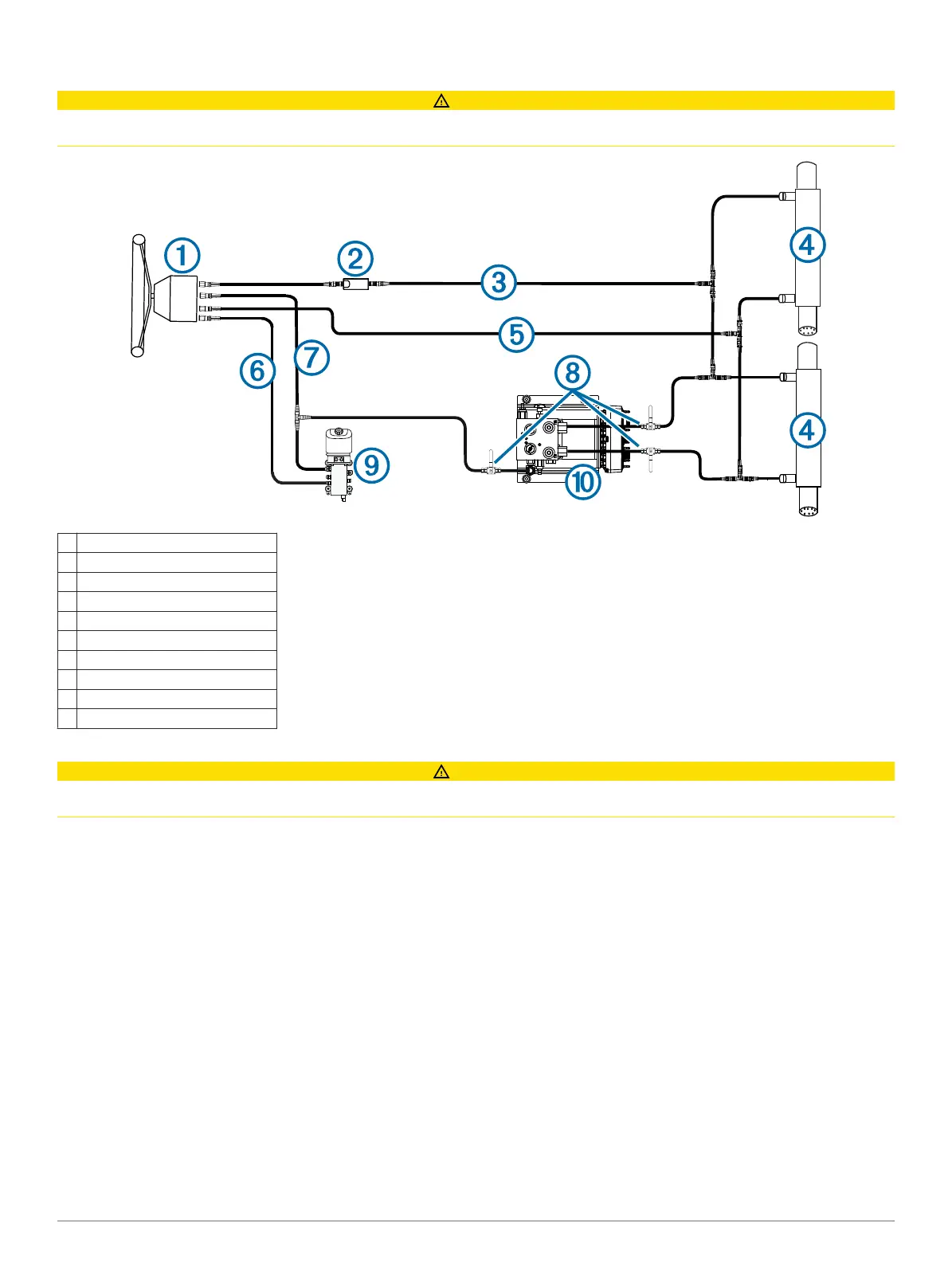

Single-Helm with Uflex
®
MasterDrive™ Layout
CAUTION
When installing the pump in a system with a Uflex MasterDrive, do not cut the high-pressure line connecting the power unit to the
helm to avoid injury or property damage.
L
T
R
P
À
Helm
Á
Shadow Drive
Â
Starboard line
Ã
Steering cylinders
Ä
Port line
Å
High pressure line - DO NOT CUT
Æ
Return line
Ç
Shutoff valves
È
Uflex MasterDrive power unit
É
Pump
Dual-Helm with Uflex MasterDrive Layout
CAUTION
When installing the pump in a system with a Uflex MasterDrive, do not cut the high-pressure line connecting the power unit to the
helm to avoid injury or property damage.
9
