190-02692-00 Rev. A
Garmin G100 Pilot’s Guide for the Piper PA-32 Saratoga
86
FLIGHT INSTRUMENTS
SYSTEM
OVERVIEW
FLIGHT
INSTRUMENTS
EIS
AUDIO PANEL
& CNS
FLIGHT
MANAGEMENT
HAZARD
AVOIDANCE
AFCS
ADDITIONAL
FEATURES
APPENDICESINDEX

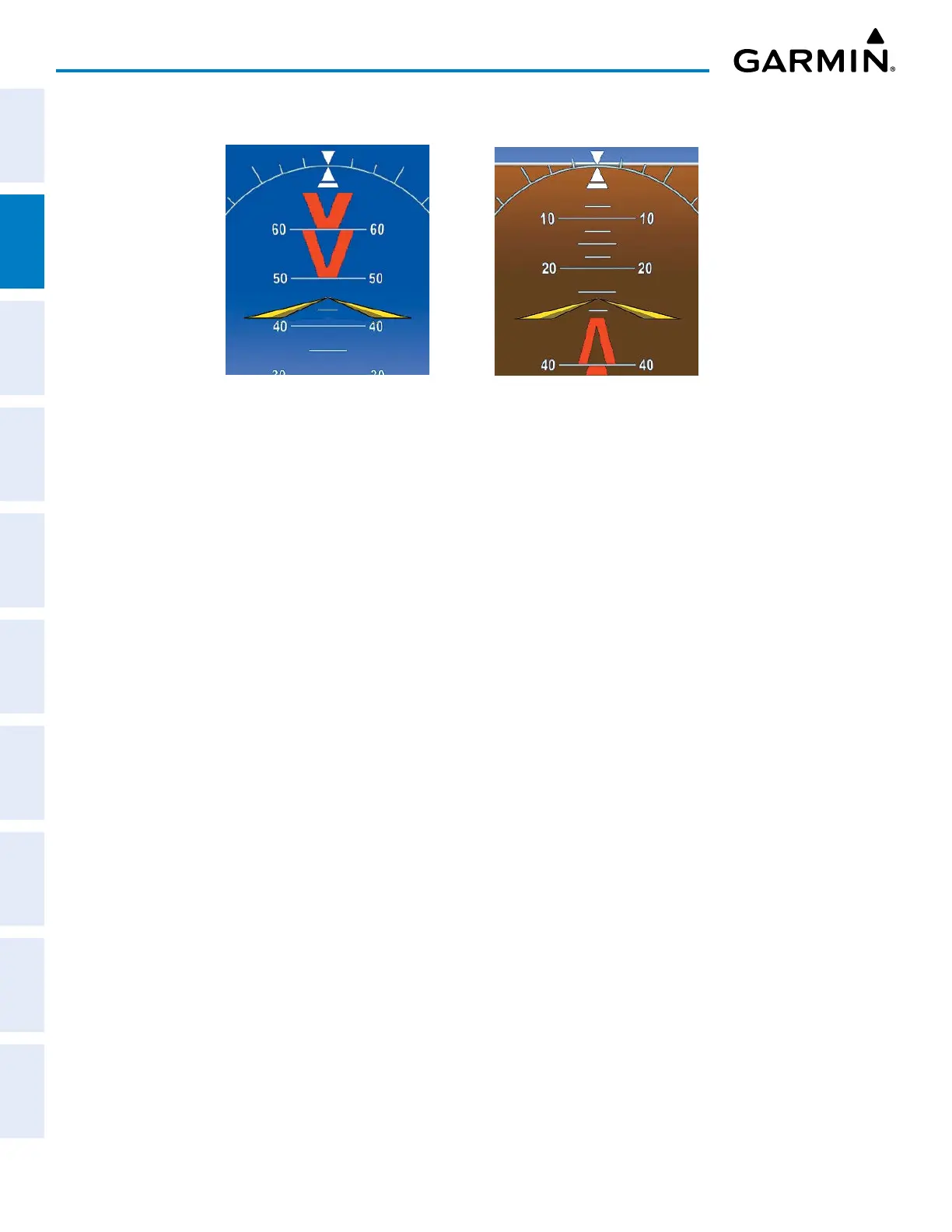

Figure 2-50 Pitch Attitude Warnings
Nose Low
Nose High
If pitch exceeds +30˚/-20˚ or bank exceeds 65˚, some information displayed on the PFD is removed. The
Altimeter and Airspeed, Attitude, Vertical Speed, and Horizontal Situation indicators remain on the display
and the Bearing Information, Alerts, and Annunciation windows can be displayed during such situations. The
following information is removed from the PFD and their softkeys are disabled when the aircraft experiences
unusual attitudes:
- True Airspeed
- Ground Speed
- Traffic Annunciations
- Inset Map
- Outside Air Temperature (OAT)
- ISA Temperature Deviation
- Wind Data
- Selected Heading Display
- Selected Course Display
- Transponder Status Box
- System Time
- PFD Setup Menu
- Windows Displayed in the
Lower Right Corner of the PFD:
» Timer/References
» Nearest Airports
» Flight Plan
» System Messages
» Procedures
- Minimum Altitude Displays
- Vertical Deviation, Glideslope,
and Glidepath Indicators
- Altimeter Barometric Setting
- Selected Altitude
- VNV Target Altitude
SVT UNUSUAL ATTITUDES
During extreme pitch attitudes, the display shows either a brown or blue colored bar at the top or bottom
of the screen to represent earth or sky. The blue colored bar is also displayed when terrain gradient is great
enough to completely fill the display. This is intended to prevent losing sight of the horizon during extreme
pitch attitudes.
