190-02692-00 Rev. A
Garmin G1000 Pilot’s Guide for the Piper PA-32 Saratoga
189
FLIGHT MANAGEMENT
SYSTEM
OVERVIEW
FLIGHT
INSTRUMENTS
EIS
AUDIO PANEL
& CNS
FLIGHT
MANAGEMENT
HAZARD
AVOIDANCE
AFCS
ADDITIONAL
FEATURES
APPENDICES INDEX
5.4 AIRSPACES
The system can display the following types of airspaces: Class B, TMA, and Airways surrounding TMA, Class
C, CTA, Class A, Class D, Restricted (Prohibited), MOA (Military), and other airspace provided by the navigation
database. Some examples of typical airspaces are depicted below. See the Map Symbols portion of this section for
the maximum ranges for each type of airspace and the symbol used to define the airspace area. Temporary Flight
Restrictions (TFRs) are discussed in the Hazard Avoidance Section.

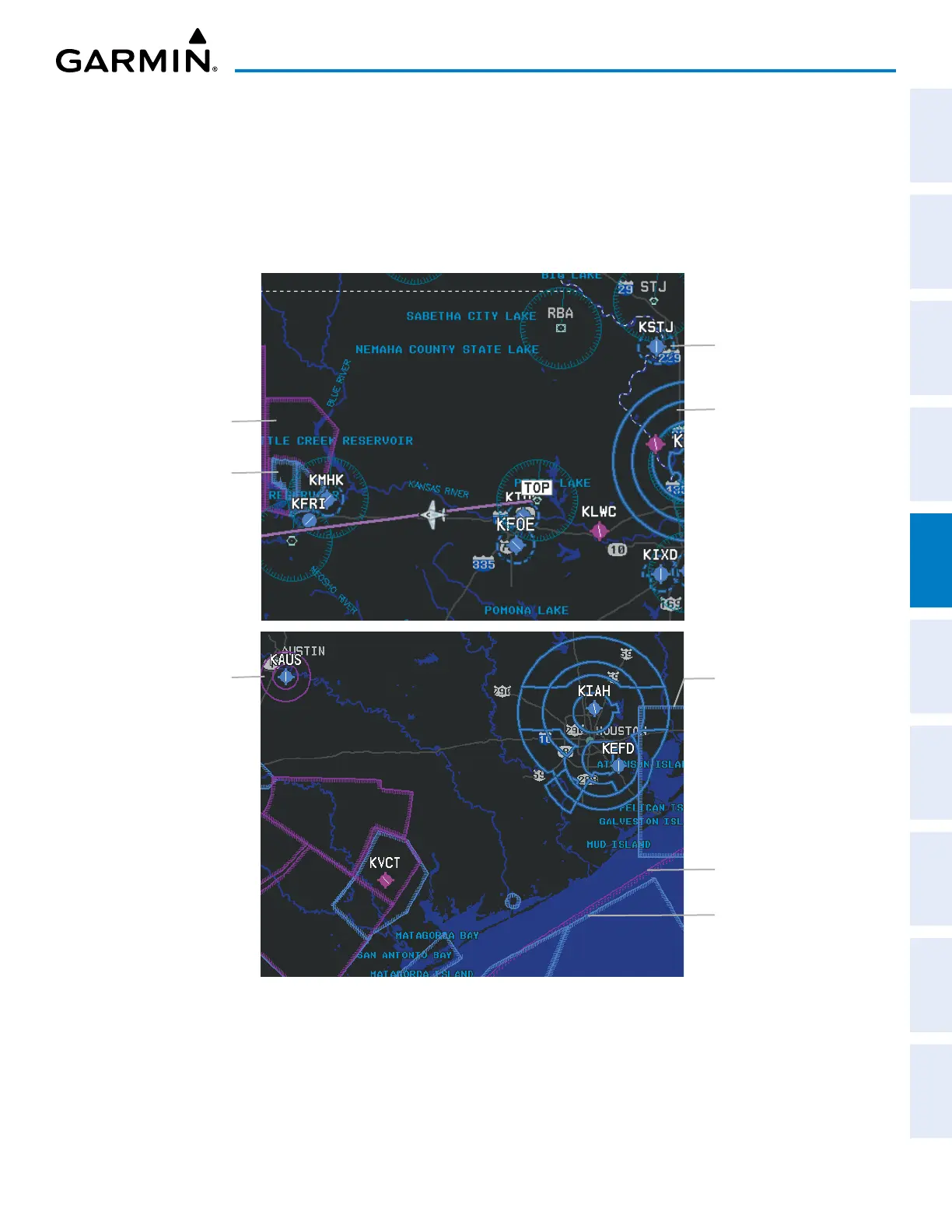

Figure 5-43 Airspaces
MOA (Military)
Class D Airspace
Class B Airspace
Restricted Area
Class C Airspace
Alert Area
ADIZ
Warning Area
