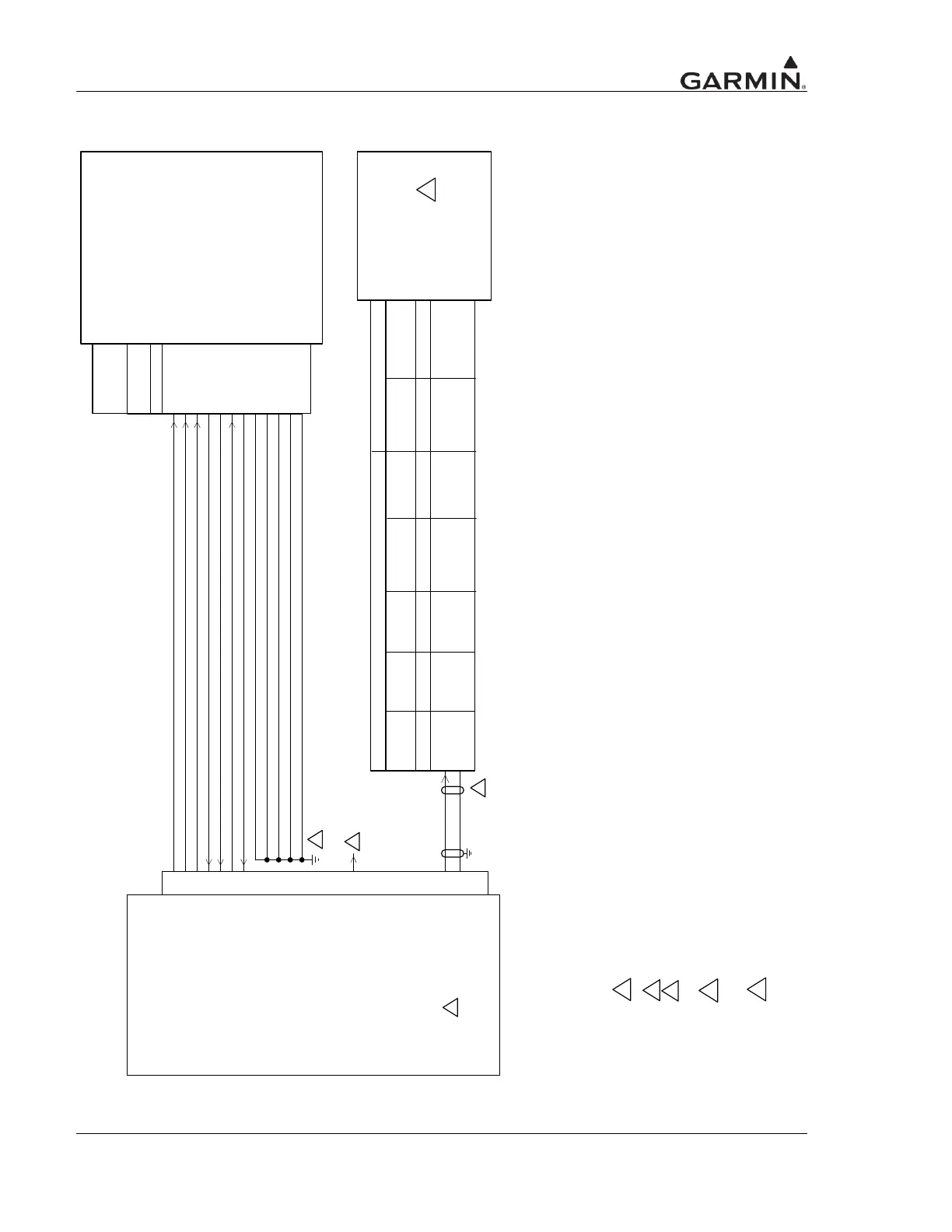

HTAWS ANNUNCIATOR
PANEL
MID-
CONTINENT
MD41-10XX
-1048, -1058
GARMIN
400W Series
TERRAIN N/A ANNUNCIATE
TERRAIN CAUTION ANNUNCIATE
TERRAIN WARNING ANNUNCIATE
AURAL SUPPRESSION
TERRAIN INHIBIT
REDUCED PROTECTION OUT
REDUCED PROTECTION IN
J1
10
5
11
16
20
14
15
MUTE CAUTION OUT
TAWS INHIBIT OUT
REDUCED PROTECTION MODE IN
TAWS WARNING ANNUN IN
TAWS NOT AVAILABLE ANNUN IN
TAWS CAUTION ANNUN IN
REDUCED PROTECTION MODE OUT
4
37
38
HTAWS AUDIO HI
HTAWS AUDIO LO
44
HTAWS AUDIO ACTIVE OUT
AUDIO PANEL
UNSWITCHED IN HI
UNSWITCHED IN LO
GARMIN
GMA 347
J3471
54
55
GMA 340
J1
31
32
SL15
SL15M
Bottom
T
Gnd Lug
6
Bendix/King
KMA 26
14
31
KMA 24
KMA 28
T
Gnd Lug
PMA 8000
31
32
PMA 6000
PMA 7000
T
Gnd Lug
PS Engineering
Bottom
J1
Bottom
P261
21 AIRCRAFT GROUND
22 AIRCRAFT GROUND
23 AIRCRAFT GROUND
24 AIRCRAFT GROUND
25 AIRCRAFT GROUND
8
NOTES:
1. ALL WIRES 24 AWG OR LARGER UNLESS OTHERWISE SPECIFIED.
2. IF EXTERNAL HTAWS ANNUNCIATION IS REQUIRED, THE ANNUNCIATOR PANELS ON THIS PAGE ARE SUITABLE TO MEET THE ANNUNCIATION
REQUIREMENT.
3. WHEN TWO HTAWS-EQUIPPED UNITS ARE INSTALLED IN AN AIRCRAFT, ONLY ONE SHOULD UTILIZE P4001-37/38 TO AVOID COMPETING AUDIO
MESSAGES.
4. CONNECT TO THE AUDIO INHIBIT INPUTS OF OTHER SYSTEMS WITH LOWER PRIORITY AURALS THAN HTAWS.
5. SHIELDS FOR AUDIO CABLES SHOULD BE GROUNDED AT ONE END (WITH LEADS LESS THAN 3.0 INCHES) AND LEFT FLOATING AT THE OTHER
END. IF SHIELDED AUDIO CABLE IS CARRIED THROUGH A DISCONNECT, CARRY SHIELD GROUND THROUGH DISCONNECT ON A SEPARATE
PIN.
6. OTHER UNSWITCHED INPUTS ON THE AUDIO PANEL MAY BE USED IN LIEU OF THOSE SHOWN.
7. REFER TO MANUFACTURER’S DOCUMENTATION FOR COMPLETE PINOUT AND INTERCONNECT INFORMATION. PINOUTS OF OTHER UNITS ARE
SHOWN FOR REFERENCE ONLY.
8. ENSURE THESE LINES ARE GROUNDED AT THE SAME REFERENCE GROUND LOCATION AS THE GNS 400W SERIES UNIT.
