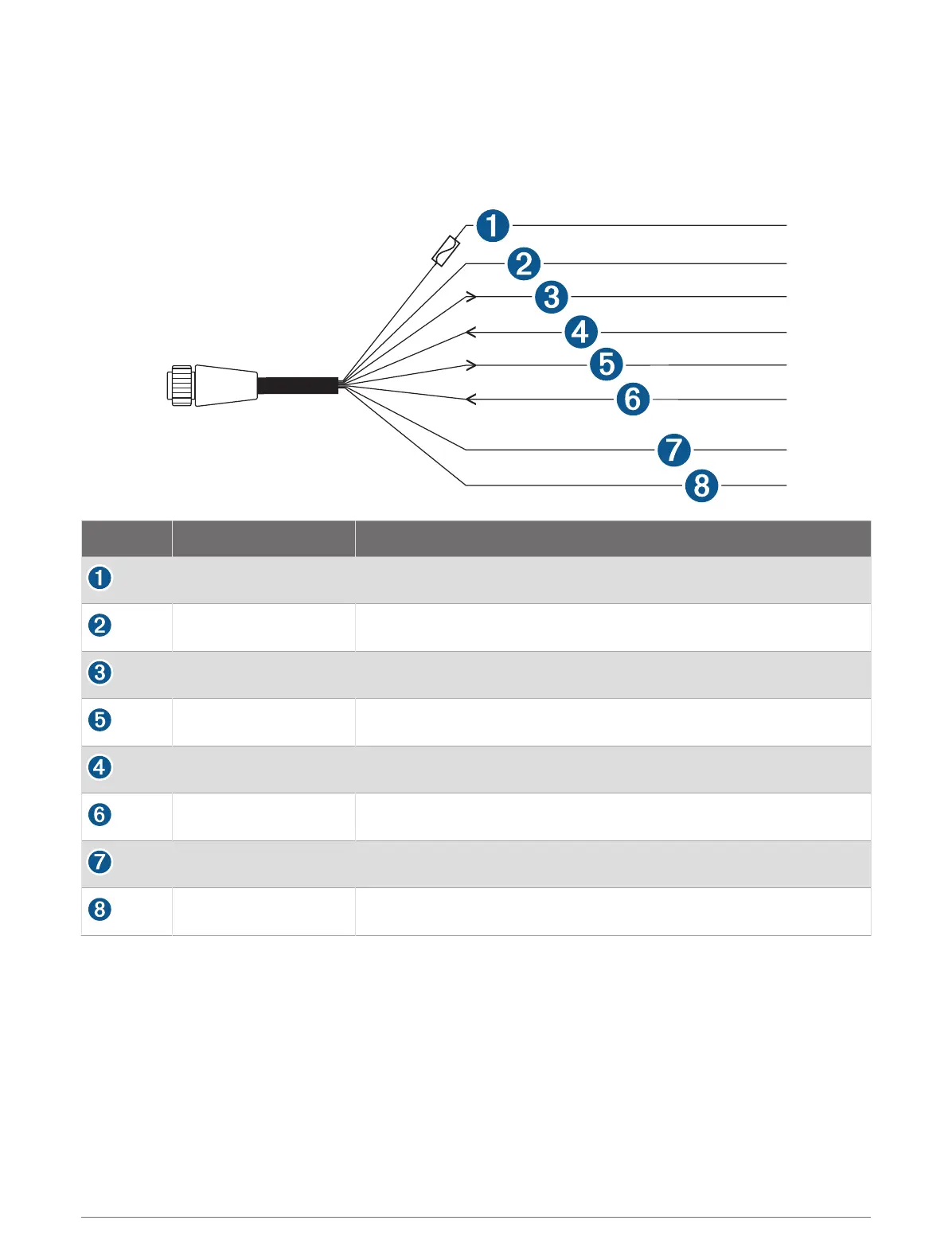

Power/NMEA
®
0183 Cable
• The wiring harness connects the device to power, NMEA 0183 devices, and a lamp or a horn for visible or
audible alerts.
• If it is necessary to extend the NMEA 0183 or alarm wires, you must use 22AWG (.33mm²) wire.
• This cable provides one differential NMEA 0183 input and output port.
Item Wire Color Wire Function
Red Power
Black Ground (power and NMEA 0183)
Blue NMEA 0183 TxA (Out +)
Gray NMEA 0183 TxB (Out -)
Brown NMEA 0183 RxA (In +)
Violet NMEA 0183 RxB (In -)
Orange Accessory on
Yellow Alarm low
6
