GPSMAP 2006 / 2010 / GPS 17N Installation Guide
Wiring
There are two wiring diagrams provided for you convenience. The fi rst is a simple hook-up showing the GPSMAP 2006/2010 (using
the 18-pin wiring harness), the GPS 17N and the alarm circuit. The Alarm does not have to be wired for the unit to function. The second
is a complete wiring diagram showing the GPSMAP 2006/2010 (using the 18-pin wiring harness) interfacing with a variety of different
equipment. The extra 5-pin wiring harness that came with the unit is intended for future interfacing features and does not require con-
nection. Refer to the wiring diagram that will best suite your needs. Make sure that all connections are good. For extra lengths of wire, 24
AWG (unless otherwise noted on wiring diagram), shielded, twisted-pair wiring is recommended. We advise soldering all connections and
sealing the connection with heat shrink tubing. If you experience diffi culty wiring the unit, please contact an installation professional in
your area.
WIRE
COLOR
WIRE
COLOR
18 AWG
18 AWG
1A
5A
ALARM
SEE NOTE
GARMIN GPS 17
GPS SENSOR
BLACK
GROUND
YELLOW
ON
RED
POWER
BLUE
WHITE
YELLOW
ALARM
GROUND BLACK
PORT 4 OUT GREEN
ACCESSORY ON ORANGE
DC INPUT RED
PORT 4 IN WHITE
COM1IN
COM 1 OUT
SHIP'S BATTERY
10-32 VOLTS
GARMIN
GPSMAP 2006/2010
NOTE:
THE ALARM OUTPUT CAN BE USED TO DRIVE A LAMP, HORN, OR BOTH.
MAXIMUM CURRENT IS 100 MILLIAMPS. A SWITCH OR RELAY CAN BE USED
TO SELECT BETWEEN VISUAL AND AUDIBLE ALERTS, IF REQUIRED
+
-

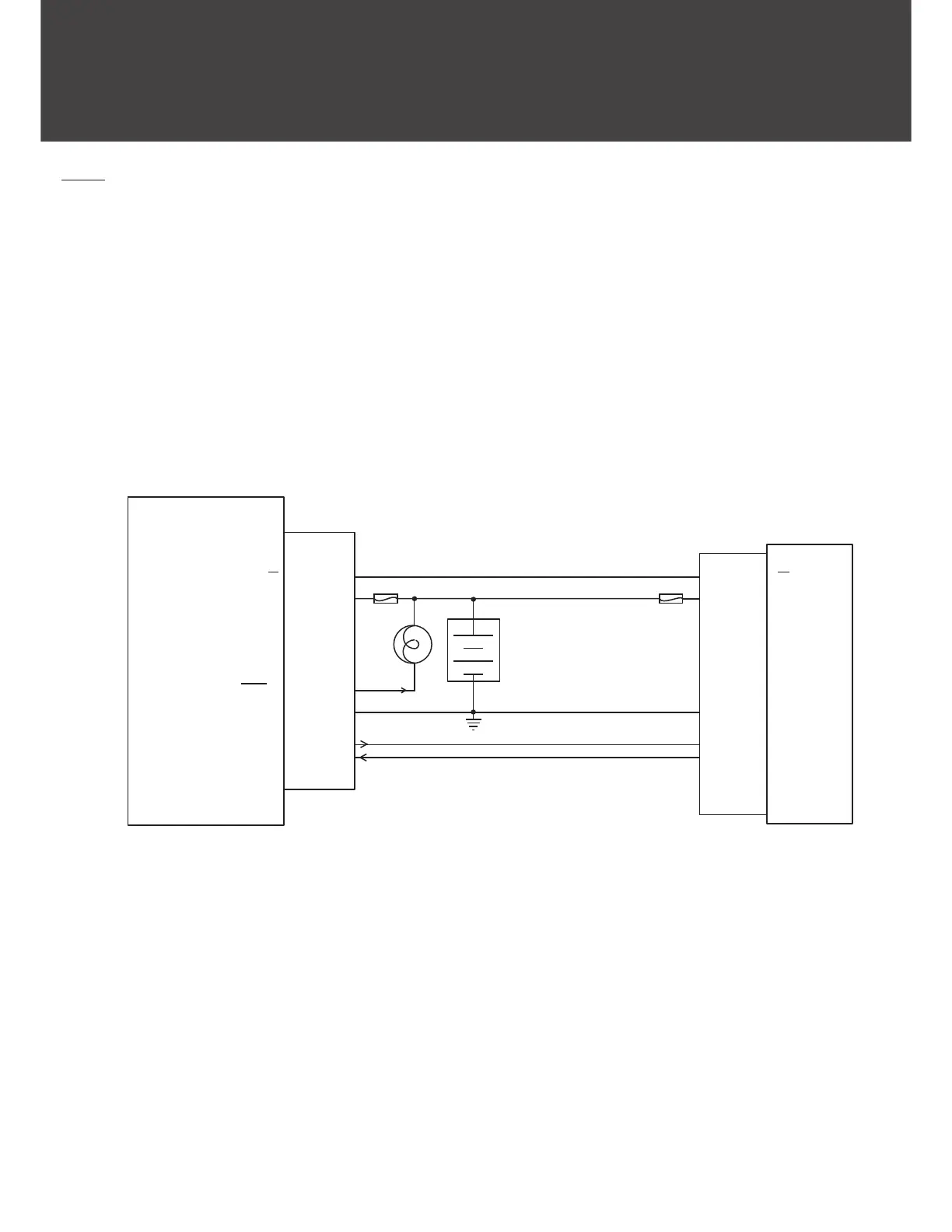

Diagram 1 - Basic Hook-up
