GPSMAP 2006 / 2010 / GPS 17N Installation Guide
Final Wiring Connection

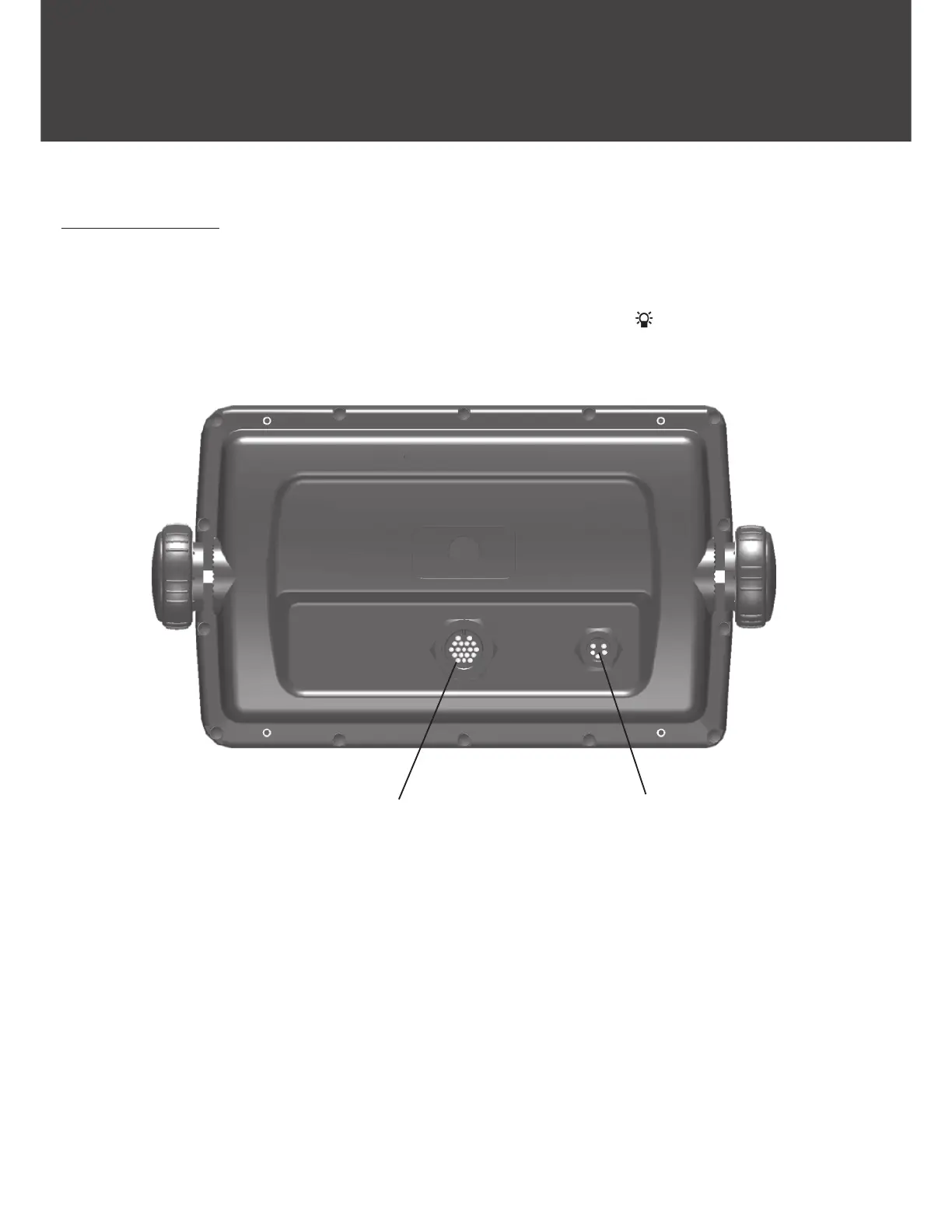

Once all the wiring is complete, plug the 18-pin harness into the center connector on the backside of the
GPSMAP 2006/2010. The 5-pin port on the right side is intended for future interfacing features and does not
require connection at this time.
With power applied to the circuit, you may test the installation by pressing the red POWER key on the
front of the unit. See the Owner’s Manual for steps on initializing the receiver.
18-Pin Connector
5-Pin Connector
(for future use)
