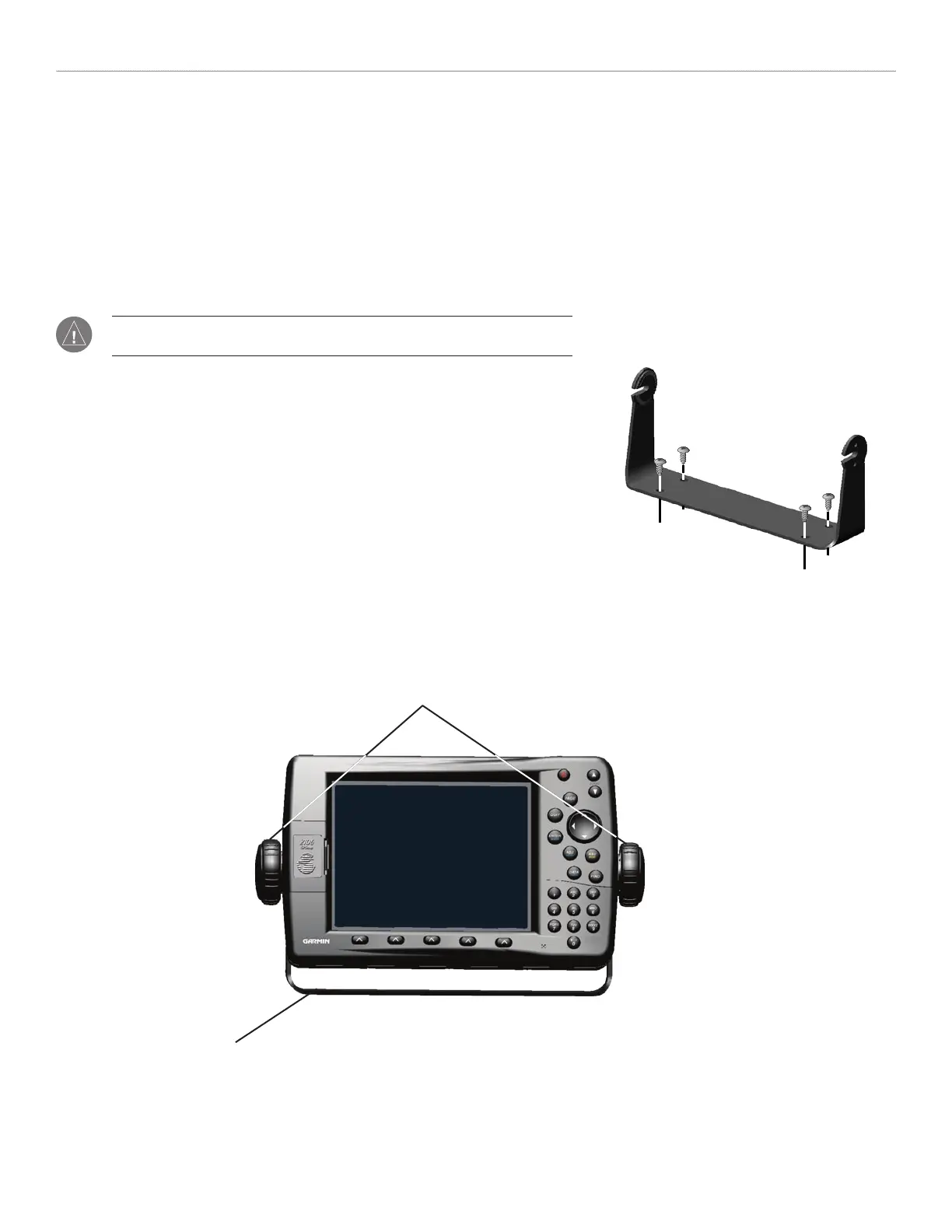

INSTALLATION INSTRUCTIONS
GPSMAP 2106/2110 & GPS 17
Bail Mount
Bail mount
Mounting knobs
INSTALLATION INSTRUCTIONS
Surface Mounting the GPSMAP 2106/2110
Tools
• Drill and drill bit
• Screwdriver
• Pencil
• Mounting hardware (not included)
NOTE: Mounting hardware (fasteners) not included. Mounting holes are 5/16"
(7.9 mm) in diameter.
To install the bail mount and unit:
1. Using the bail mount as a template, mark the location of the four mounting holes.
Be sure to leave at least two inches of clearance behind the unit for the wiring.
2. Using an appropriate size drill bit, drill pilot holes for the fasteners.
3. Secure the bail mount to the surface with the fasteners.
4. Loosen the mounting knobs.
5. Slide the unit into the bail mount, and tighten the mounting knobs.

Garmin GPSMAP 2110 Specifications

General

Sport (fitness, running)	No
Marine (chartplotters, sounders)	Yes
Routes quantity	50
Number of waypoints	3000
Form factor	Plug-in
Display resolution	640 x 480 pixels

Weight and Dimensions

Depth	83 mm
Width	333 mm
Height	224 mm
Weight	2270 g
