INSTALLATION INSTRUCTIONS
GPSMAP 2106/2110 & GPS 17
Wiring and Cables
The GPSMAP 2106/2110 comes with an 18-pin Power/Data cable. For some installations, it may be necessary to drill 1.25" (31.7 mm) holes to
route the connector end of the cables. Garmin rubber grommets are provided to cover the installation holes (see below). Wiring instructions are
found on the following pages. If you experience difficulty installing the unit, contact an installation professional.
The grommets may not be needed in some installations. The grommets do NOT create a waterproof seal. Apply a marine sealant after
installation to weatherproof around the grommet and cable. Additional grommets can be purchased from your Garmin dealer or direct from
Garmin. Be sure to test the system before installing the grommets.
Tools
• Drill
• 1.25" (31.7 mm) paddle drill bit or hole saw
• Pencil
• Utility knife
• Marine sealant (optional)

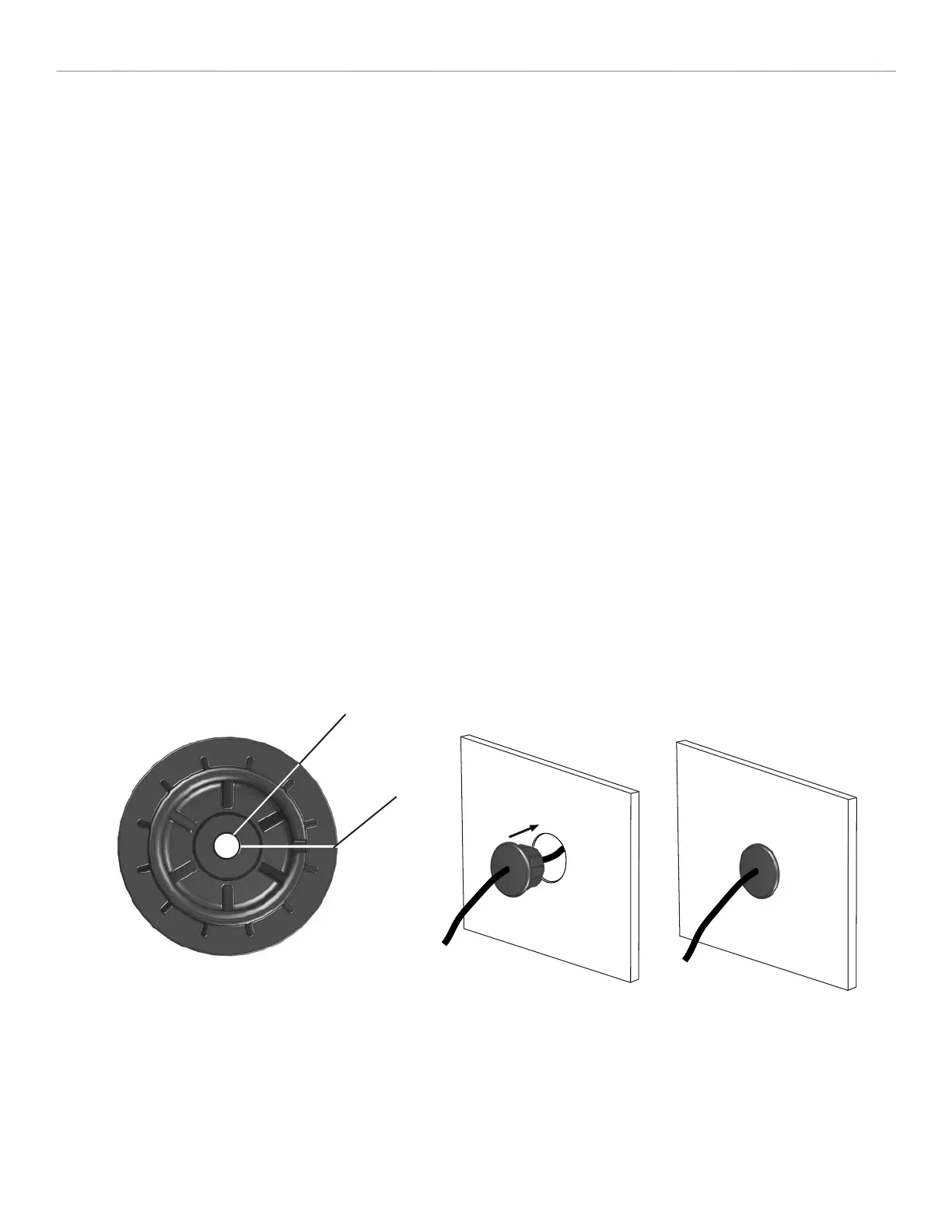

To install the cable grommet:
1. Mark the location where the Power/Data cable is to route through.
2. Using a 1.25" (31.7 mm) paddle drill bit or hole saw, drill the installation hole.
3. Refer to the diagram below for trimming instructions. Carefully trim the cable hole, as needed.
4. Route the cable to the unit.
5. Spread the grommet apart at the split, and place it around the cable (see below).
6. Firmly push the grommet into the installation hole until it is seated. Apply marine sealant, as needed, to weatherproof the cable.
Split
Use this hole (no trim) for the
Power/Data, or GPS 17 cable

Garmin GPSMAP 2110 Specifications

General

Sport (fitness, running)	No
Marine (chartplotters, sounders)	Yes
Routes quantity	50
Number of waypoints	3000
Form factor	Plug-in
Display resolution	640 x 480 pixels

Weight and Dimensions

Depth	83 mm
Width	333 mm
Height	224 mm
Weight	2270 g
