DC Power
Source
NMEA Device 1
(Single ended)
NMEA Device 2
(Single ended)
RXD+
GND
TXD+
TXD+
RXD+
GND
(RED) +
Power (10 - 36 Vdc)
(BLACK) Ground
(Power and NMEA 0183)
(ORANGE) Accessory On
(BLUE) NMEA 0183 Port 1 Tx (Out)
(BROWN) NMEA 0183 Port 1 Rx (In)
(GREY) NMEA 0183 Port 2 TX+ (Out+)
(GREEN) NMEA 0183 Port 2 RX- (In-)
(WHITE) NMEA 0183 Port 2 RX+ (In+)
(YELLOW) Alarm Low
(VIOLET) NMEA 0183 Port 2 TX- (Out-)
Alarm Relay
100ma max
coil current
To Transducer
(If applicable)

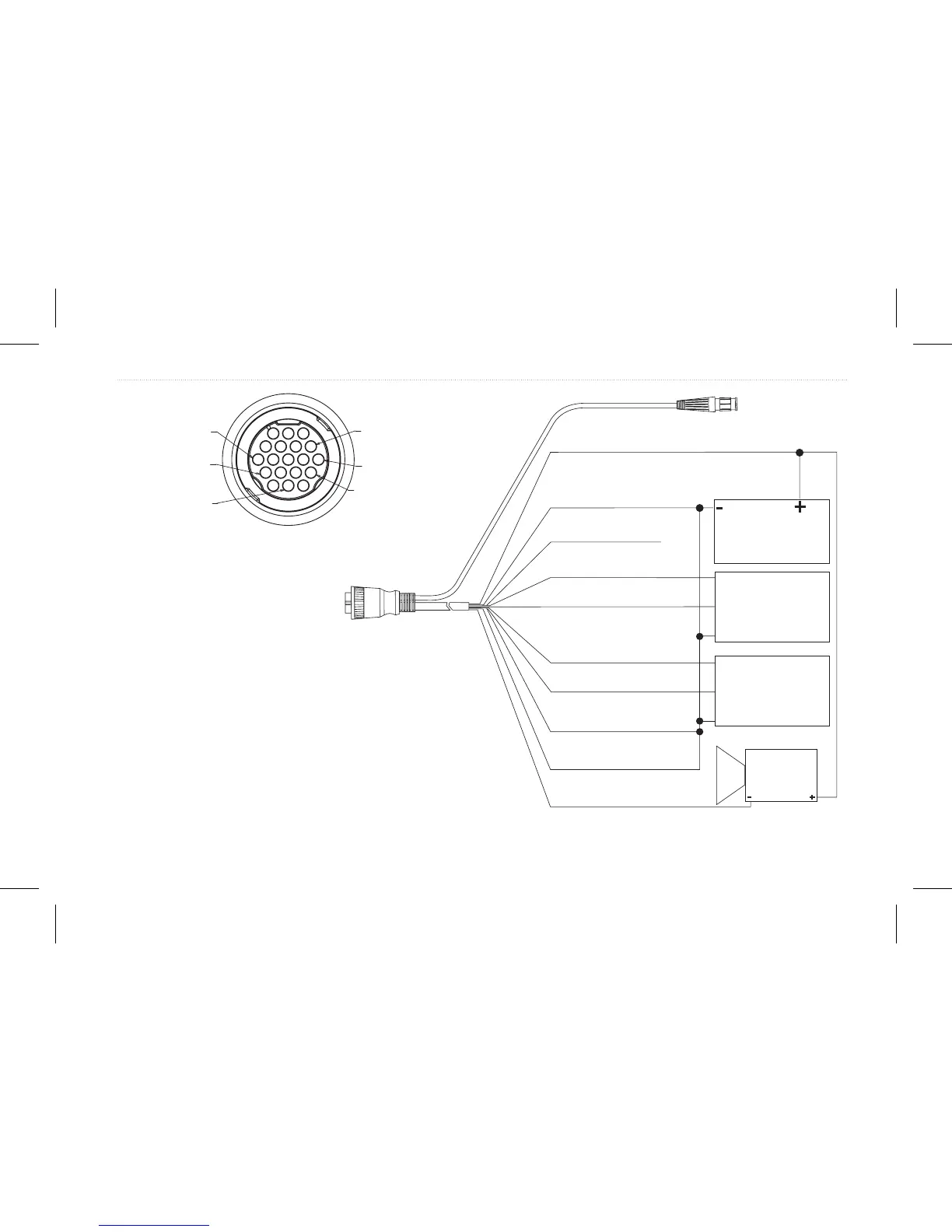

GPSMAP 580/585 Series Wiring Harness
PIN 8 - Black (Ground)
PIN 13 - Red (DC Positive)
PIN 7 - Yellow (Alarm)
PIN 12 - White (P2 NEMA In+)
PIN 16 - Green (P2 NEMA In-)
PIN 18 - Blue (P1 NEMA Out)
GPSMAP 580/585 Series Pin Assignment
GPSMAP 580/585 Owner’s Manual 81
Appendix
