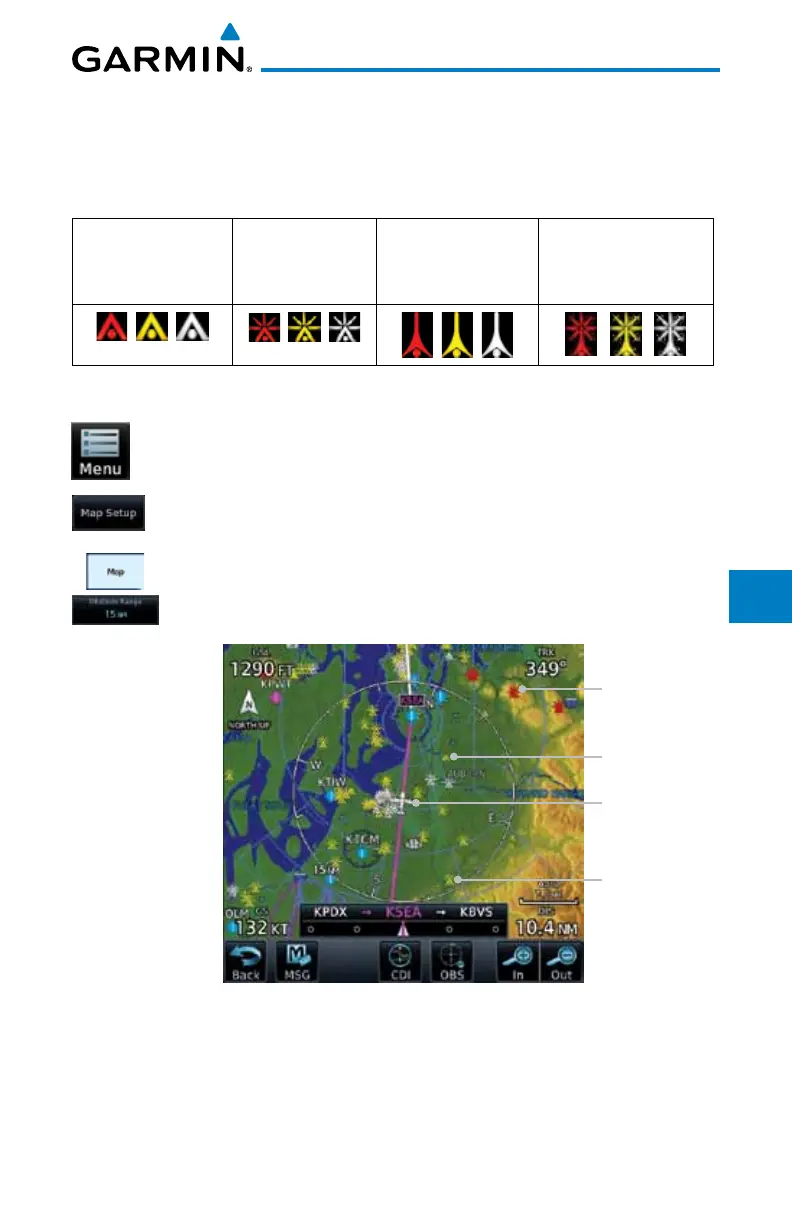

Obstacle Range
The Obstacle Range option selects whether the Obstacle Data is shown on the
Map page at and below the selected Obstacle range. Map ranges above this value
will not show the Obstacle Data.
Unlighted Obstacle
(Height is less than
1000 ft AGL)
Lighted Obstacle
(Height is less
than 1000 ft AGL)
Unlighted Obstacle
(Height is greater
than 1000 ft AGL)
Lighted Obstacle
(Height is greater than
1000 ft AGL)
Figure 9-21 Navigation Map Obstacle Icons
1. While viewing the Map function, touch the Menu key.
2. Touch the Map Setup key.
3. Under the Map tab touch the Obstacle Range key and select
the maximum range where obstacles will be displayed.
Obstacle
Current Position
Obstacle
Obstacle
Figure 9-22 Navigation Map Obstacles
