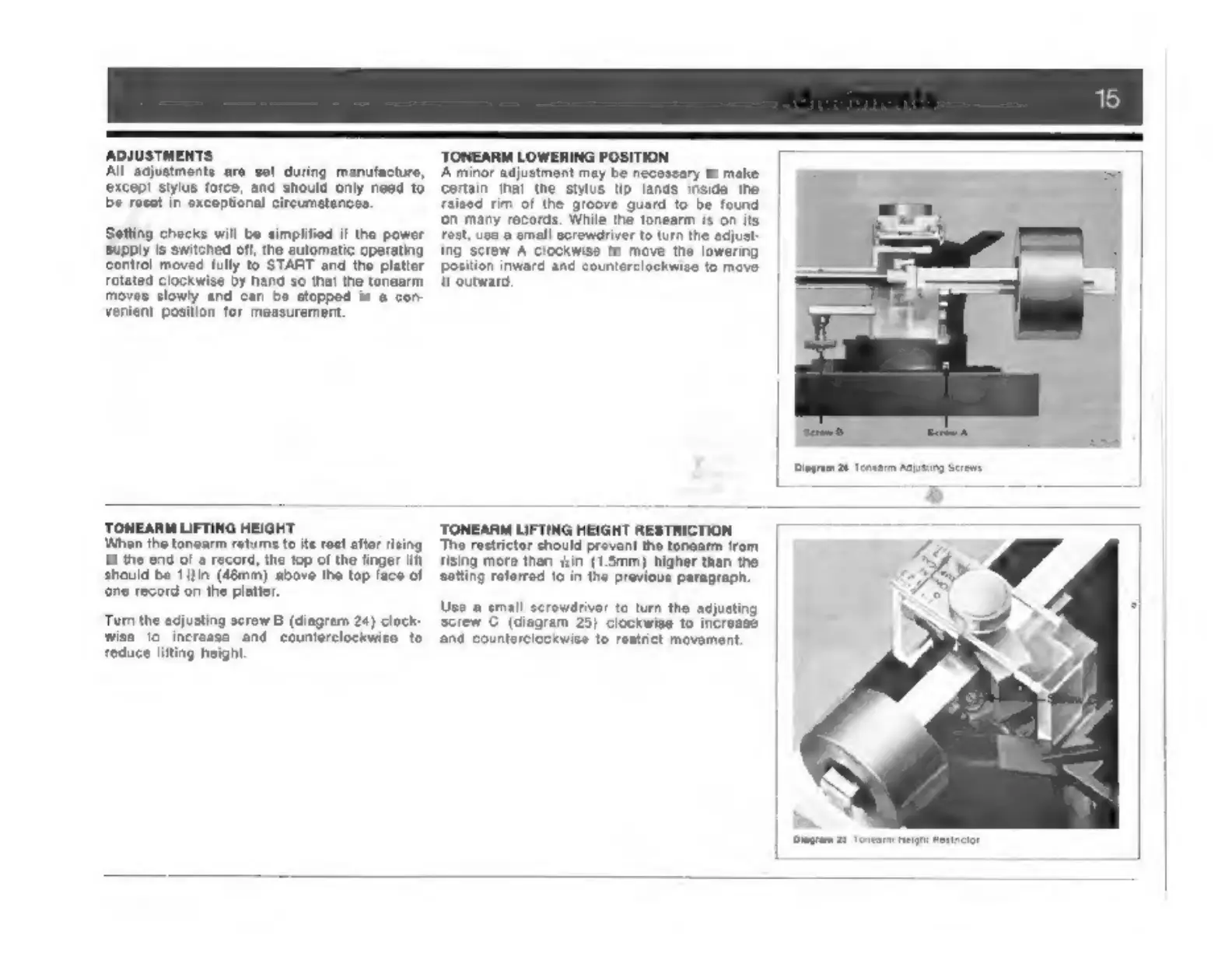

‘ADJUSTMENTS
All adjustments are sot during manufacture,
‘excep! slylus force, and should only need to
oe reset in oxcoptional circumstances.
Setting chocks will bo simplified if the power
Supply is switched off, the automatic operating
control moved fully tS START and tho platter
rotated clockwise by hand so that tne tonearm
moves slowly and can be stoppod in a con
venient position for measurement.
TONEARM LIFTING HEIGHT
Whon the tonearm returns to ite rest after rising
al the end of @ record, the top of the finger lft
should be ti2in (48mm) above the top face of
fone record on the platter.
Turn the adjusting screw B (diagram 24) clock
wise to increase and counterclockwise to
reduce lifting height.
‘TONEARM LOWERING POSITION
‘A minor adjustmont may be necessary to make
Certain that the stylus tip lands ‘side the
raised rim of the groove guard to be found
fon many records. While the tonearm is on its
Use a small screwdriver to turn the adjust
Ing ‘screw A clockwise to move the lowering
ppotition inward and counterclockwise to move
Mt outward
‘TONEARM LIFTING HEIGHT RESTRICTION
‘Tho restrictor chould provont the tonoarm {rom
rising more than ysin (1.5mm) higher than the
Solting referred to in the previous paragraph.
Uso a small scrowériver to turn the adjusting
sciew C (diagram 25) clockwise to Increase
land countorclockwise to restrict movement.
