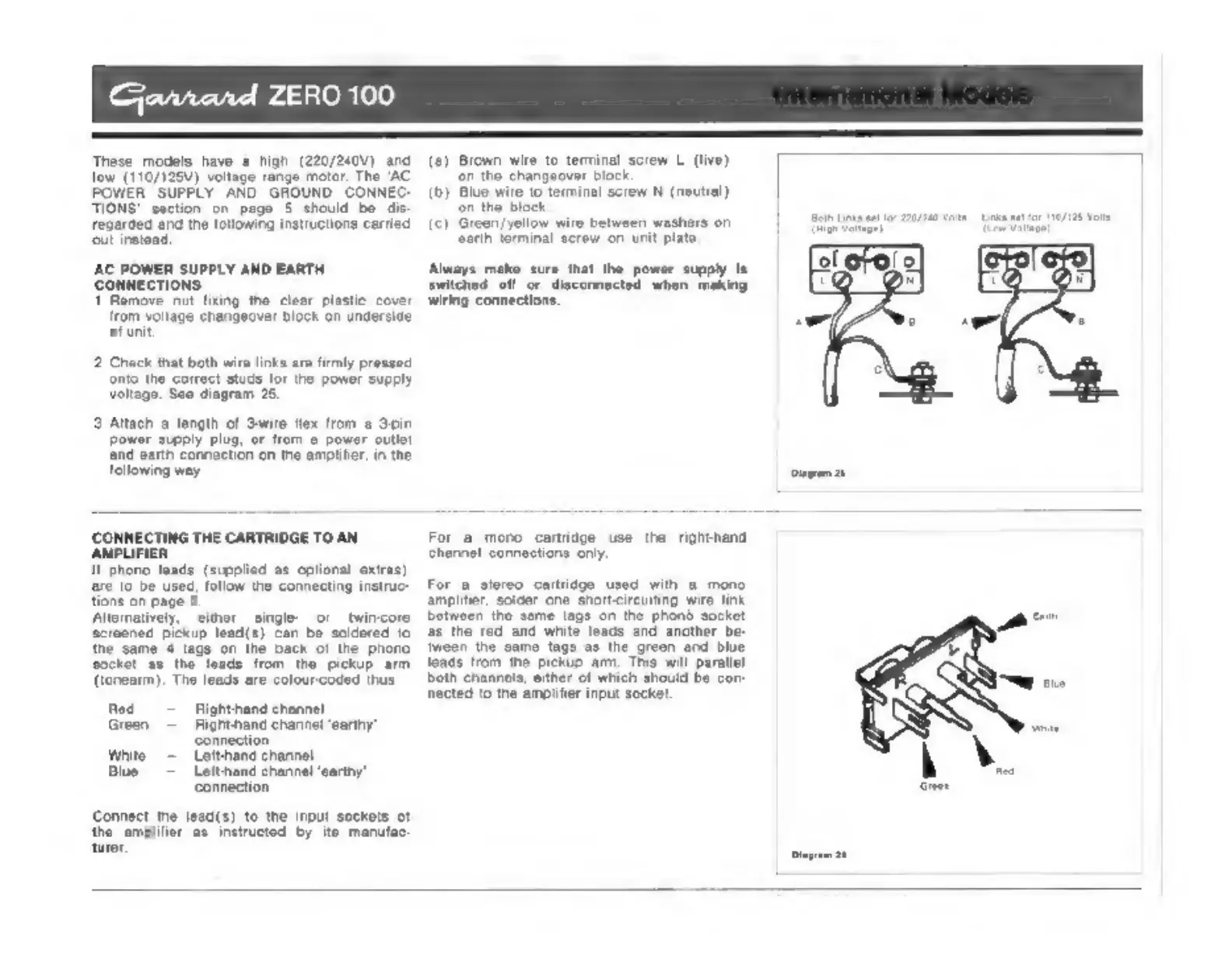

Garrard ZERO 100C - AC Power Connections (International Models); Voltage Selection and Wiring; Connecting Cartridge to Amplifier

Garrard ZERO 100
These models have a high (220/240V) and
low (110/125V) voltage range motor. The ‘AC
POVIER SUPPLY AND GROUND CONNEC-
TIONS’ section on page 5 should be dis.
regarded and the following instructions carried
‘out instead,
AC POWER SUPPLY AND EARTH
‘CONNECTIONS:
1 Remove nut fiing the clear plastic cover
trom votage changeover block on underside
of unit
2 Check that both wire links aro firmly pressed
onto the correct studs for the power supply
Voltage. See diagram 25,
3 Attach a length of 3wire tex trom a 3pin
Power supply plug, or from power outlet
fand earth connection on the ampilfer, in the
following
way
CONNECTING THE CARTRIDGE TO AN
AMPLIFIER,
If phono lads (supplied as optional extras)
fare 10 be Used, follow the connecting instruc-
tions on page 8.
Alternatively, either single or _twincore
screened pickup lead(s) can be soldered to
the same 4 tags on the back of the phono
socket as the leads from the pickup arm
(tonearm). The leads are colourcoded thus
Red Righthand channel
Green — Rightnand channel ‘earthy’
White — Lett
Blue Leithand channel ‘earthy’
‘connection
Connect te lead(s) to the Input sockels ot
the amplifier az instructed by ite manutac:
turer
(2) Brown wire to terminal screw L (live)
fon the changeover block
(b) Blue wire to terminal screw N (neutral)
fon the block
[c) Green/yellow wire between washers on
earth terminal screw on unit plate
Always make sure that the power supply ls
switched off or disconnected when making
wiring connections.
For a mono cartiidge use the righthand
chanel connections oniy.
For a stereo cartridge used with a mono
amplifier. soicer one shortcireuiting wire link
between the same tags on the phond socket
as the red and white leacs and another be-
‘ween the same tags as the green and blue
leads from the pickup arm. Ths wil parallel
both channels, either of which should be con:
nected to the amplifier input sock:
sue
