Garrard ZERO 100C - Fitting the Pickup Cartridge; Removing the Cartridge Carrier; Attaching the Cartridge

TT

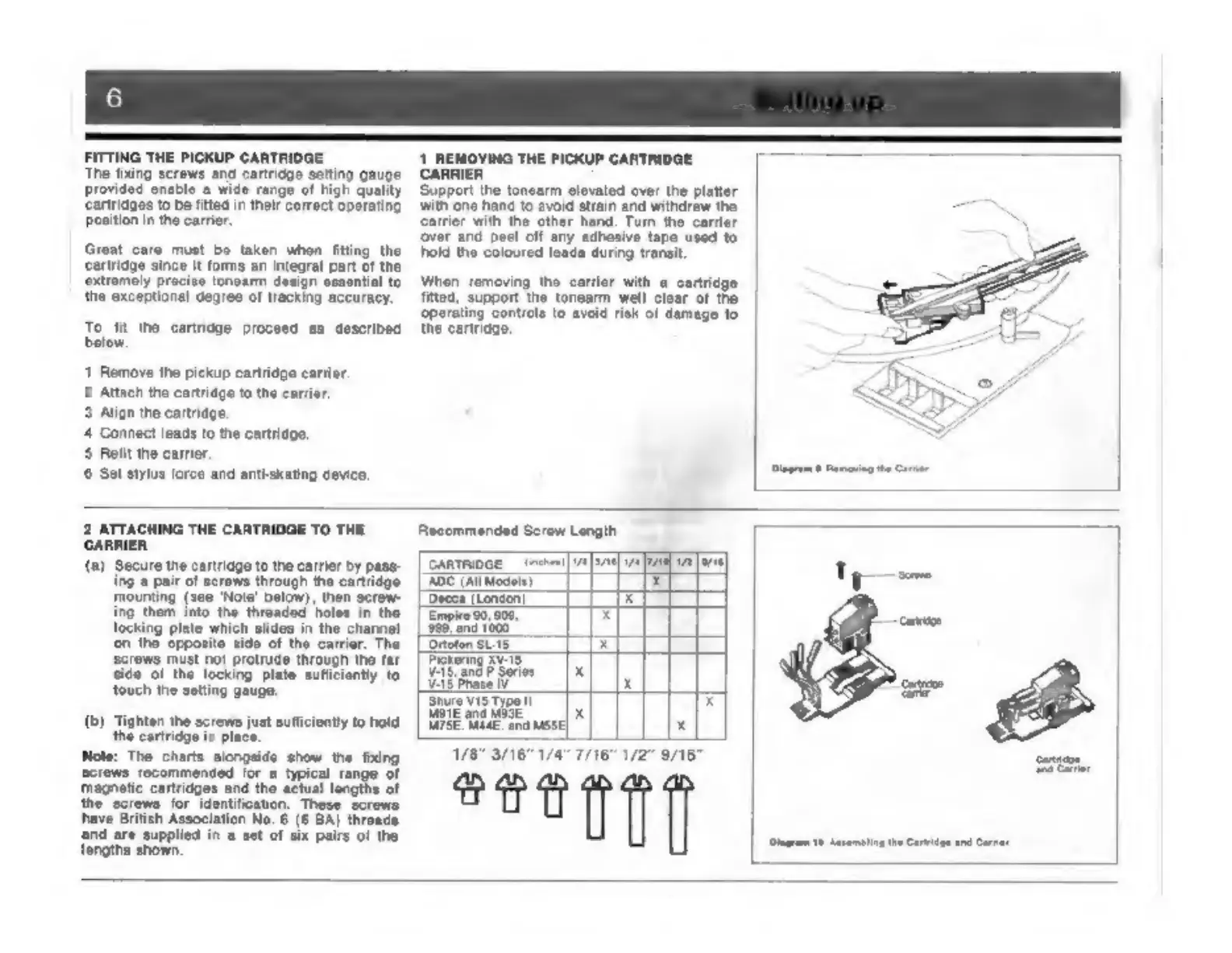

FITTING THE PICKUP CARTRIDGE
The fixing screws and cartridge setting gauge
provided enable a wide range of high quality
‘cartridges to be fitted in their correct operating
Position in tho carrier.
at caro must bo taken when fitting the
ridge since it forms an integral part of the
ymely procise tonoarm design oseontial to
the exceptional degree of tracking accuracy.
Taft he cartrdae process as describes
1 Remove the pickup cartridge cartier.
2 Attach the cartridge to the cartier.
3 Align the cartridge.
4 Connect jeads to the cartridge,
5 Retit ie carrier
6 Sot stylus force and art-skating device,
1, REMOVING THE PICKUP CARTRIDGE
CARRIER
‘Supper' the tonearm elevated over the platter
with one hand to avoid strain and withdraw the
‘carrier with the other hand. Turn the carrier
over and peel off any adhesive tape used to
hold the coloured leads during transit.
When removing tho cartier with a cartridge
fitted, support the tonearm well clear of the
operating controls to avoid risk of damage to
the cartriage.
2 ATTACHING THE CARTRIDGE TO THE
CARRIER
(a) Secure the cartridge to the carrier by pass
ing a pair of screws through the cartridge
mounting (see ‘Note’ below), then screw:
ing them into the throaded holes in the
locking plate which slides in the channel
fon the opposite side of the carrier. The
Screws must not protrude through the far
Side of the lecking plate suficiently to
touch the setting gauge.
rc
‘Tighten the screws just sufficiently to hold
the cartridge in place,
Note:
The
charts
alongside
show
the
fixing
screws
recommended
for
a
typical
range
of
‘magnetic
cartridges
and
the
actual
lengths
of
the
screws
for
identification.
These
screws
have
British
Association
No.
6
(6
BA)
threads
1nd
are
supplied
in
a
set
of
six
pairs
of
the
lengths
shown.
Rocommendod Serew Length
Canteen] ere a Pa [or
ADE (A Neds) x
Decea (London is
Empire 90, 208 X
999, and 1000,
Onoton S115. x
Shure V15 TypeTt ¥
MOE ang MOE | x
MSE MALE anc Me} x
1/8" 3/16" 1/4" 7/16" 1/2" 9/16"
oPt
th
