Garrett TreasureHound - TreasureHound Depth Multiplier Assembly; Attach Front Coil and Beam; Connect Rear Coil and Beam

4
Garrett Metal Detectors
ASSEMBLY

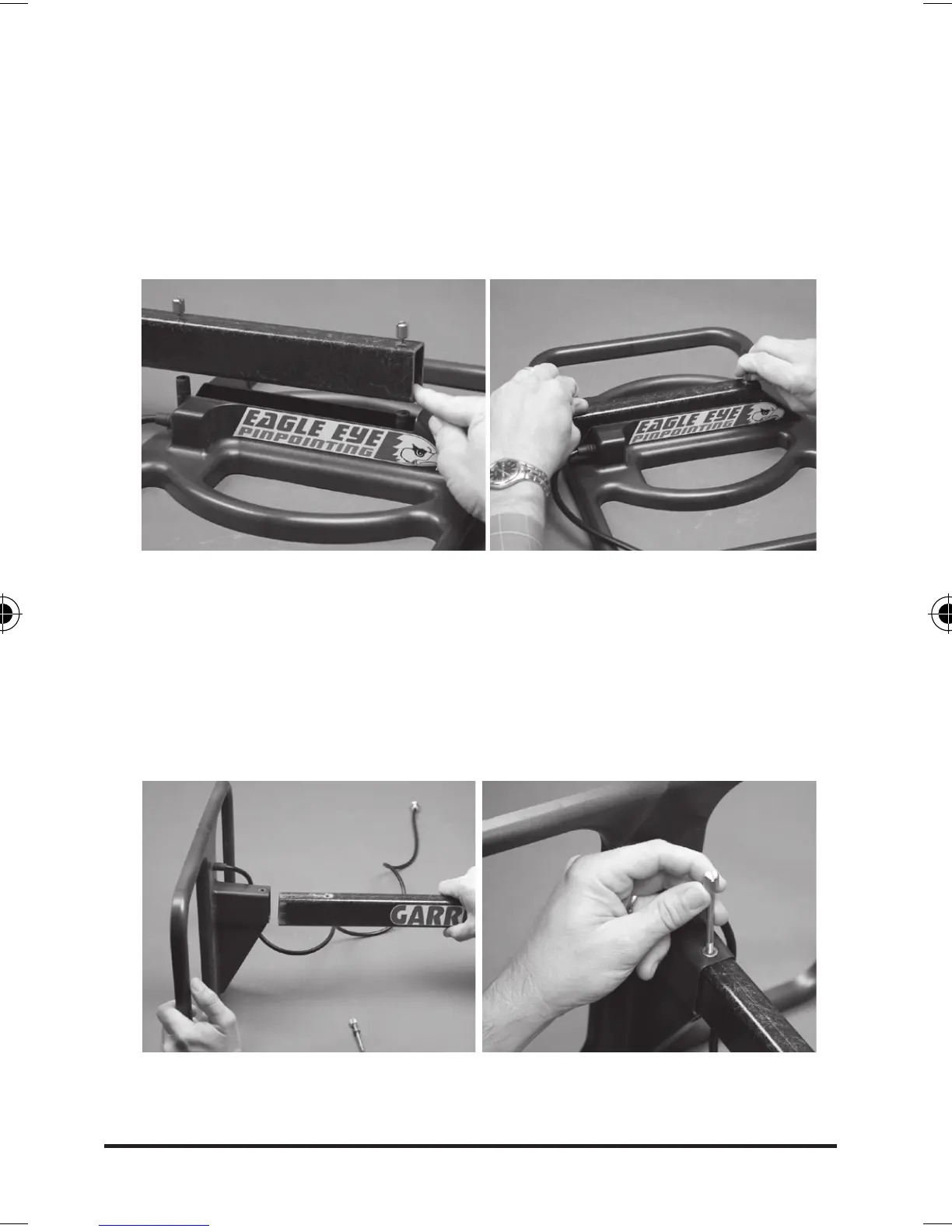

1. Slide end of beam containing the two 1" captive
thumb screws onto front coil. Hand tighten thumb
screws.
2. Slide rear of beam into rear coil receptacle. Rear
coil must be oriented with receptacle fin below
beam and cable above beam. Align mounting holes,
insert the 2.25" thumb screw with the #10 washer
and hand tighten.
