GARW IC7 - Advanced Sensor Setup; Setting Calibrated Sensors

To Next Page

To Previous Page

IC7 USER MANUAL

Once this data is entered highlight "SAVE" in the bottom right and

push up,

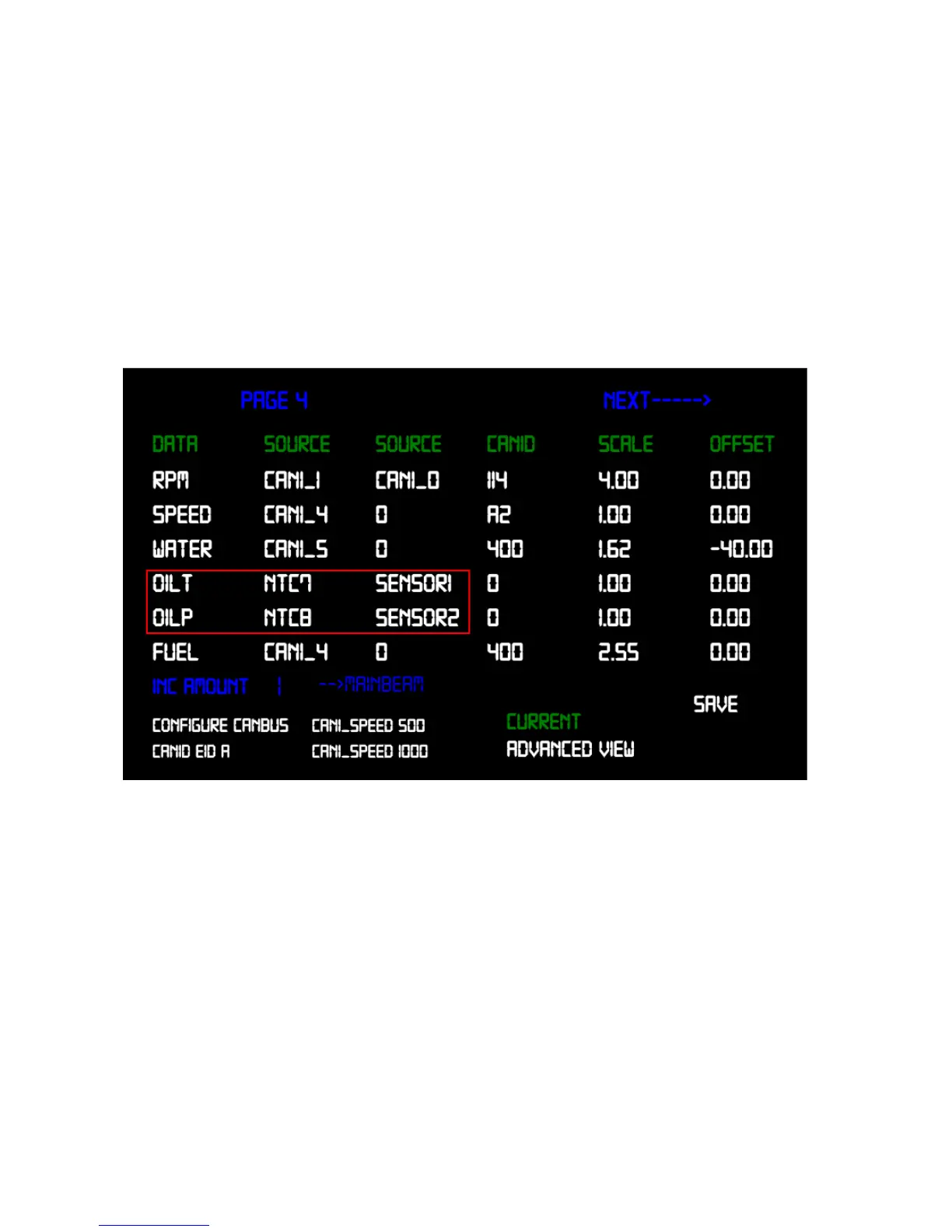

Then go to the page below and set the oil temperature and pres-

sure to the sensor calibrated above, ensure the correct NTC is

chosen

NTC7 for Analogue 7 input, NTC8 for Analogue 8 input, remember

to "SAVE" before exiting,

Your screen may look a little different but the same would apply,

If your oil pressure reading is erratic when ignition is off, set the bot-

tom value for 1 Ohm resistance

**It’s important to use gauge type sensors and not engine management

type

Gauge type will have a resistance range 0-300

Engine management type which exceeds 1000 Ohms will not function

correctly**
