IC7 USER MANUAL
4

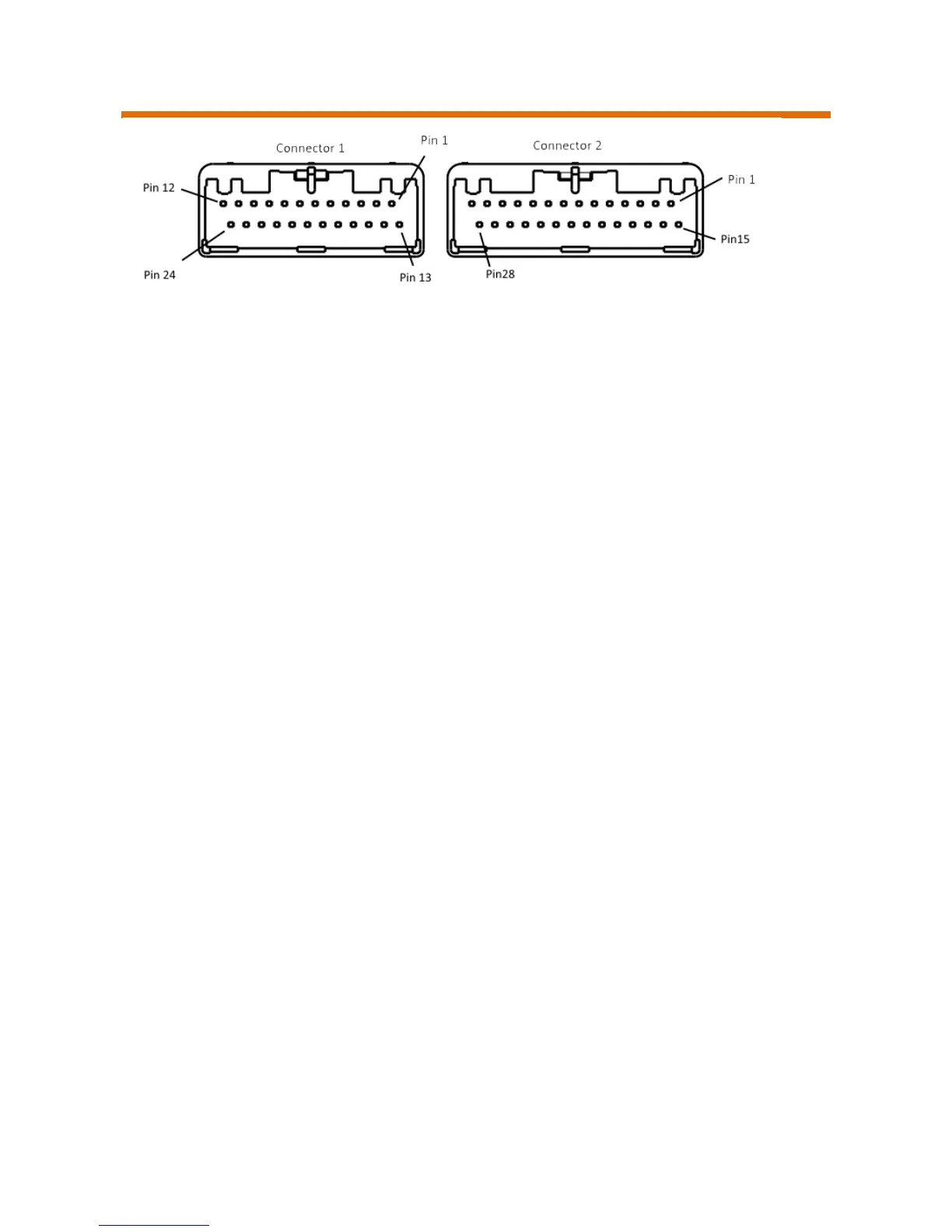

Pinouts
Connector 1
1. Analogue 4 13. Active low input 2
2. Battery Ground 14. Frequency 1 Hall
3. Battery 12V 15. Active low input 3
4. Active low input 1 16. Active low input 4
5. Ignition 17. Frequency 2 Hall
6. Pass through connection 18.Active high input 5
7. CAN1 high 19.CAN1 low
8. Active high input 1 20. Analog 6
9. Active high input 2 21. Active low input 5
10. Frequency 2 VR 22. Active high input 6
11. Active high input 3 23. Door switch
12. Active high input 4 24. Active low input 7
Connector2
1. Active low input Down 15. USB 5V
2. Active low input Up 16. USB Ground
3. Active low input Right 17. USB2 -
4. Active low input Left 18. USB2 +
5. Active low input Lap timer 19. USB Ground
6. Open Drain Output 1 20. USB1 -
7. Open Drain Output 2 21. USB1 +
8. Open Drain Output 3 22. USB 5V
9. Open Drain Output 4 23. USB Ground
10. Ground 24. NC
11. CAN2 high 25. NC
12. CAN2 low 26. Analogue 8
13. RS232 TX 27. Analogue 7
14. RS232 RX 28. Pass through from Connector 1
