IC7 USER MANUAL
18

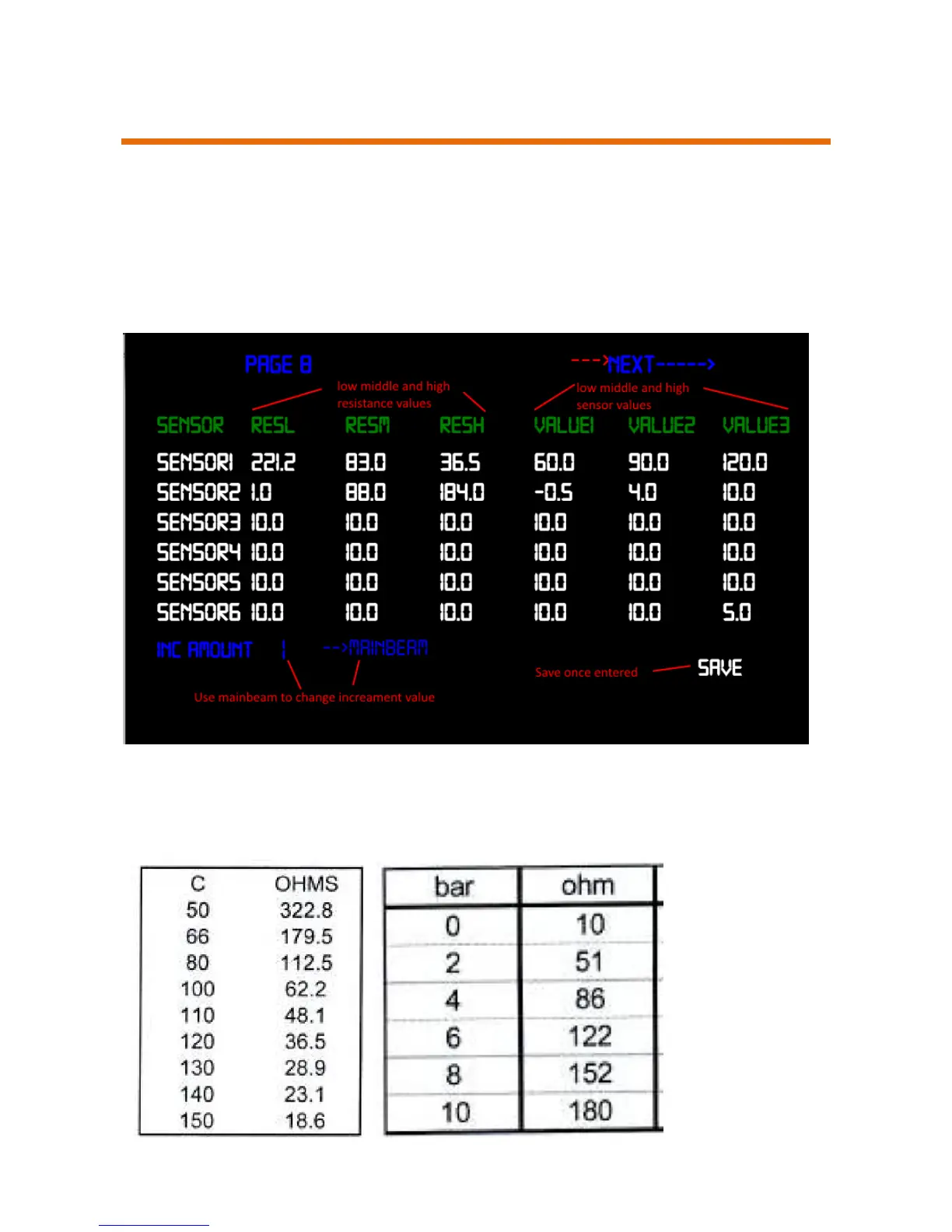

Configuring oil temperature and pressure sensors
To add additional sensors for oil temperature and pressure custom
calibration data is entered into the system settings
The technical data for the sensors is needed to enter the correct
temp/pressure vs resistance
Enter the calibration data for your oil temp and pressure sensors
Use Celsius for temp and Bar for pressure
