GASSONIC OBSERVER-i
15

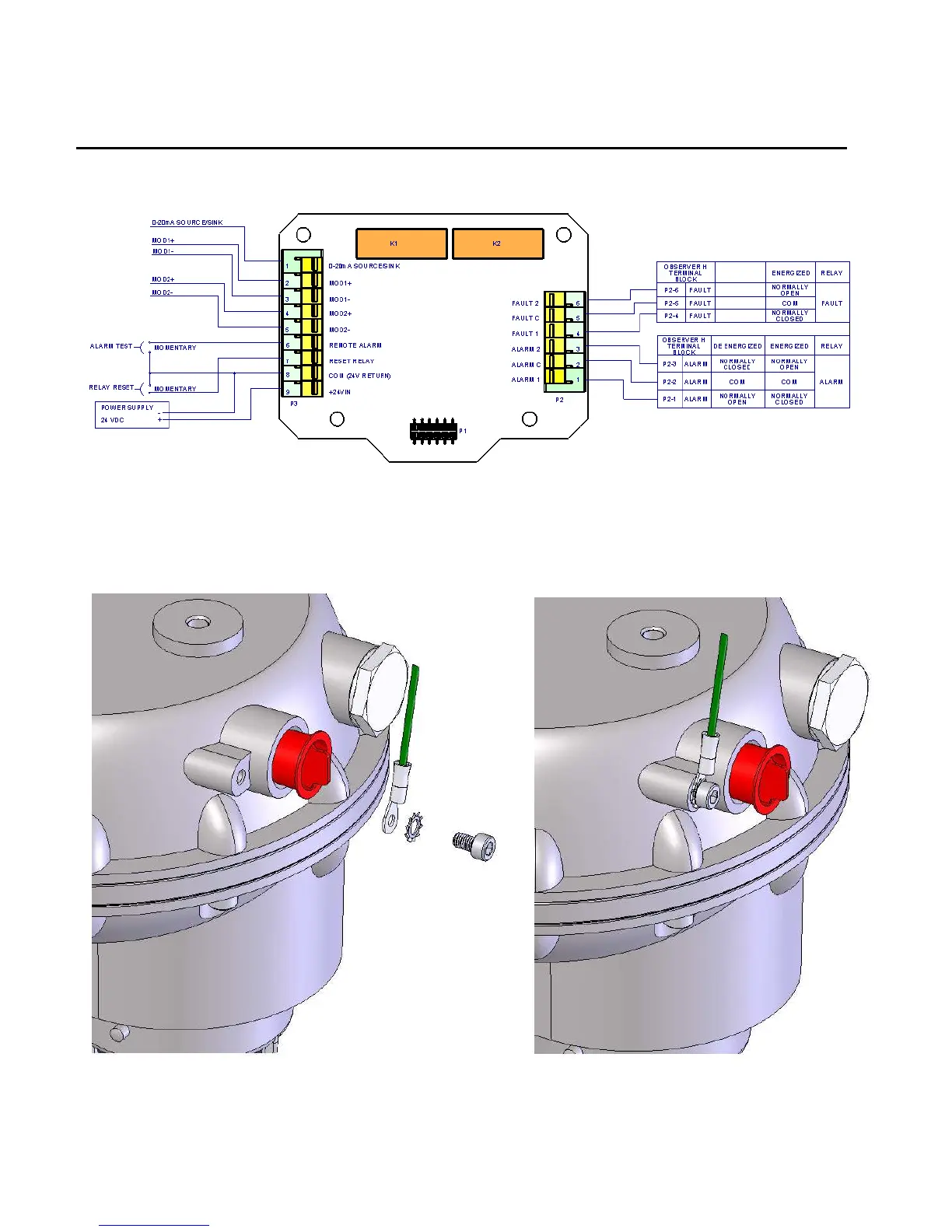

3.4. Wiring Diagram
Figure 5: Wiring Diagram
3.5. Protective Earth Grounding
Figure 6: External Earth Terminal
The protective earth ground terminal requires the use of an M5 ring lug and star washer. The wire gauge
should be less than or equal to the gauge of the power supply wires.
