Replacing Gateway 600YG2 Components
www.gateway.com
Replacing the palm rest assembly

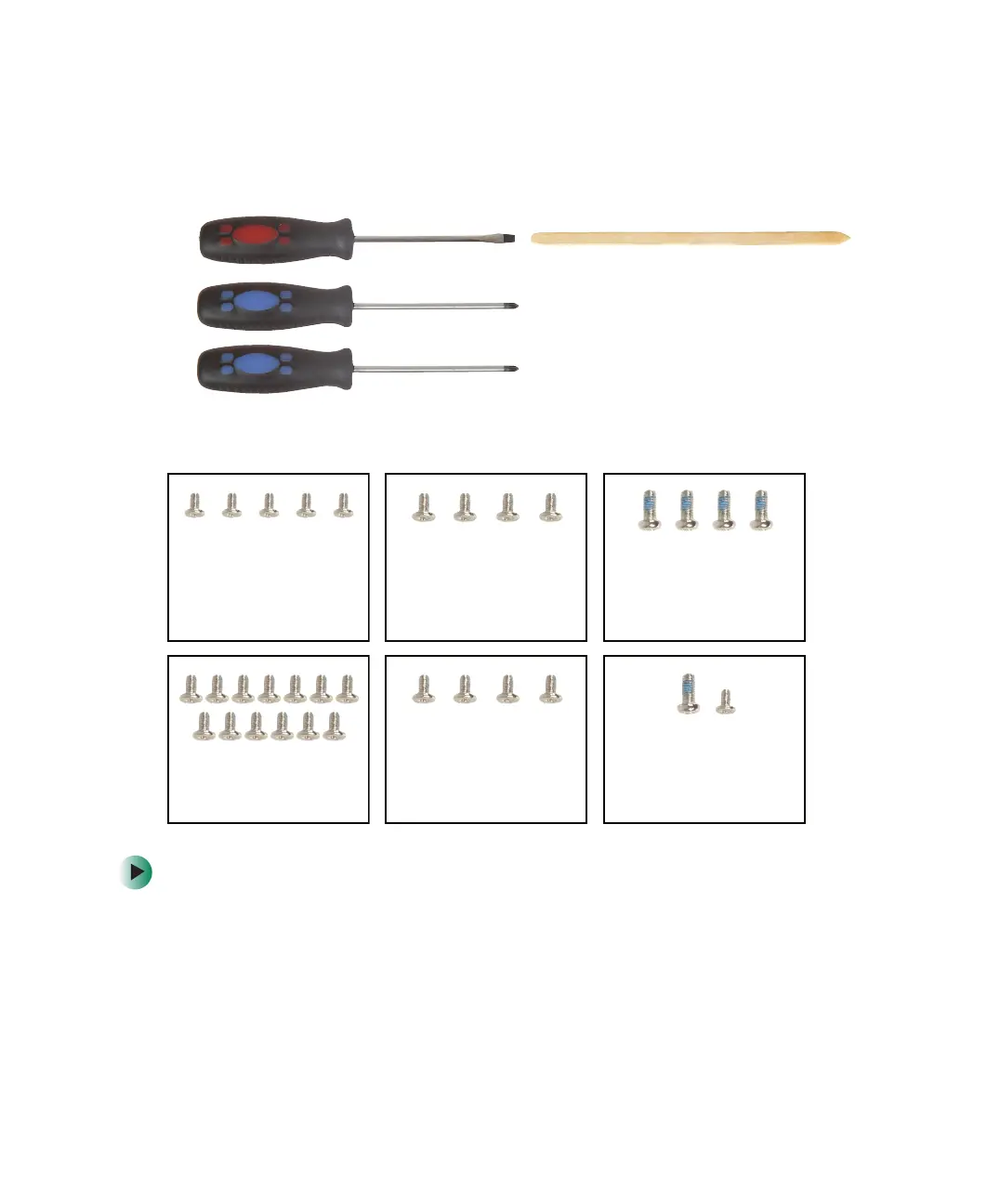

Tools you need to complete this task:
Screws removed during this task:
To replace the palm rest assembly:
1 Disconnect the AC adapter and modem and network cables and prepare
the notebook by following the instructions in “Preparing your work space”
on page 4.
2 Disconnect the notebook from the optional port replicator by following
the instructions in “Disconnecting from the port replicator” on page 7.
3 Turn the notebook over so the bottom is facing up.
Flat-blade driver Scribe or non-marring tool- OR -
Phillips #0 screwdriver
Torx T8 screwdriver
1 chrome 2.5 × 7 mm
(near touchpad)
1 chrome 2.5 × 4 mm
(near multifunction
buttons) (palm rest)
4 chrome 2.5×5mm
(back)
13 chrome 2.5 × 5 mm
(bottom)
5 chrome 2.5×4mm
(keyboard)
4 chrome 2.5×5mm
(hinge covers)
4 or 6 chrome 2.5 × 7 mm
(LCD panel hinges)
To Next Page
