39
Replacing the LCD panel assembly
www.gateway.com
Replacing the LCD panel assembly

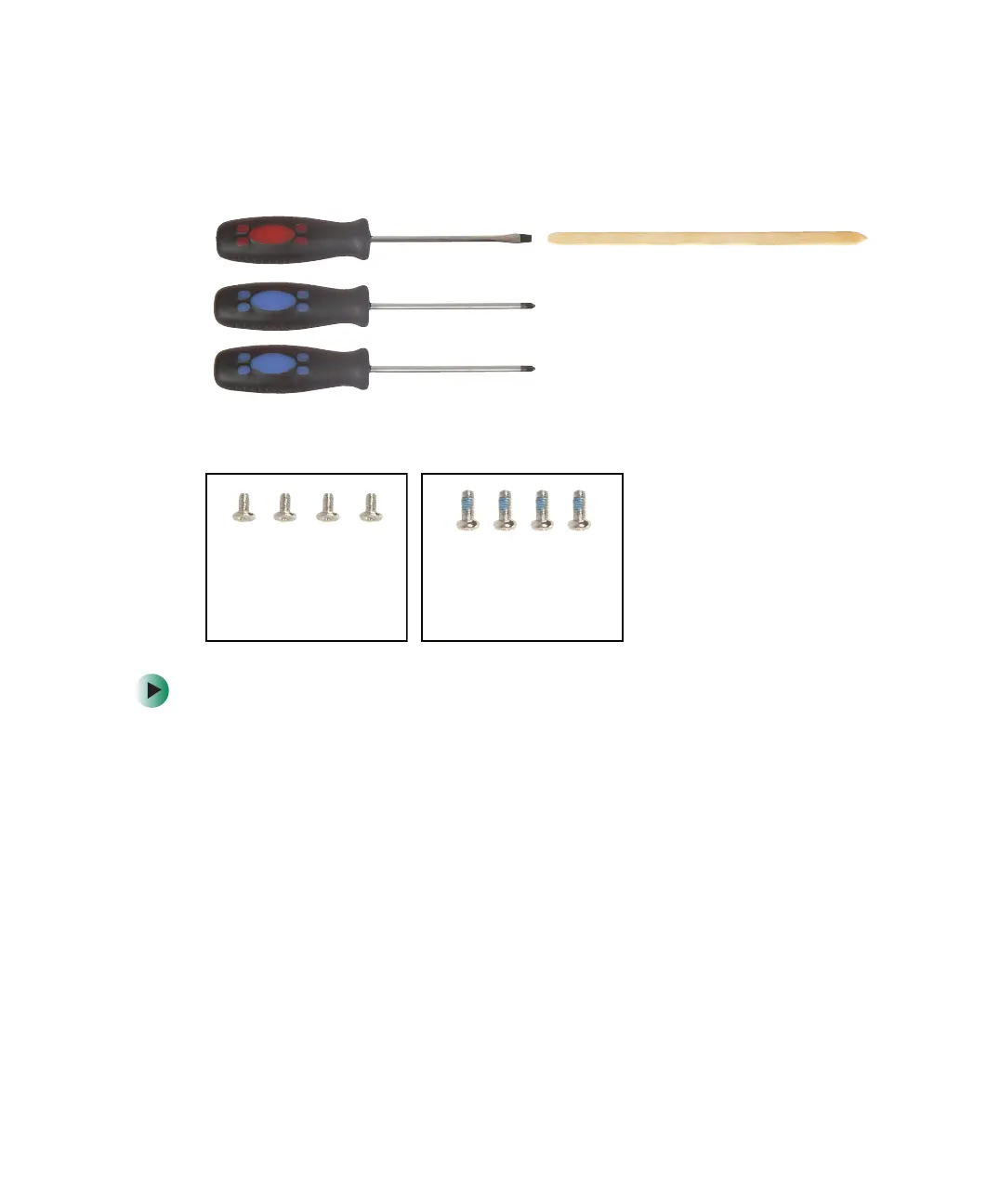

Tools you need to complete this task:
Screws removed during this task:
To replace the LCD panel assembly:
1 Disconnect the AC adapter and modem and network cables and prepare
the notebook by following the instructions in “Preparing your work space”
on page 4.
2 Disconnect the notebook from the optional port replicator by following
the instructions in “Disconnecting from the port replicator” on page 7.
3 Turn the notebook over so the bottom is facing up.
4 Remove the main and optional secondary batteries by following the
instructions in “Removing the batteries” on page 8.
5 If the notebook has IEEE 802.11 wireless networking built in, remove the
IEEE 802.11 Mini PCI module by following the instructions in “Replacing
the IEEE 802.11 Mini PCI card” on page 15.
6 Turn the notebook over so the top is facing up.
Flat-blade driver Scribe or non-marring tool- OR -
Phillips #0 screwdriver
Torx T8 screwdriver
4 or 6 chrome 2.5 × 7 mm
(LCD panel hinges)
4 chrome 2.5×5mm
(hinge covers)
To Next Page
