91
Replacing the system board
www.gateway.com

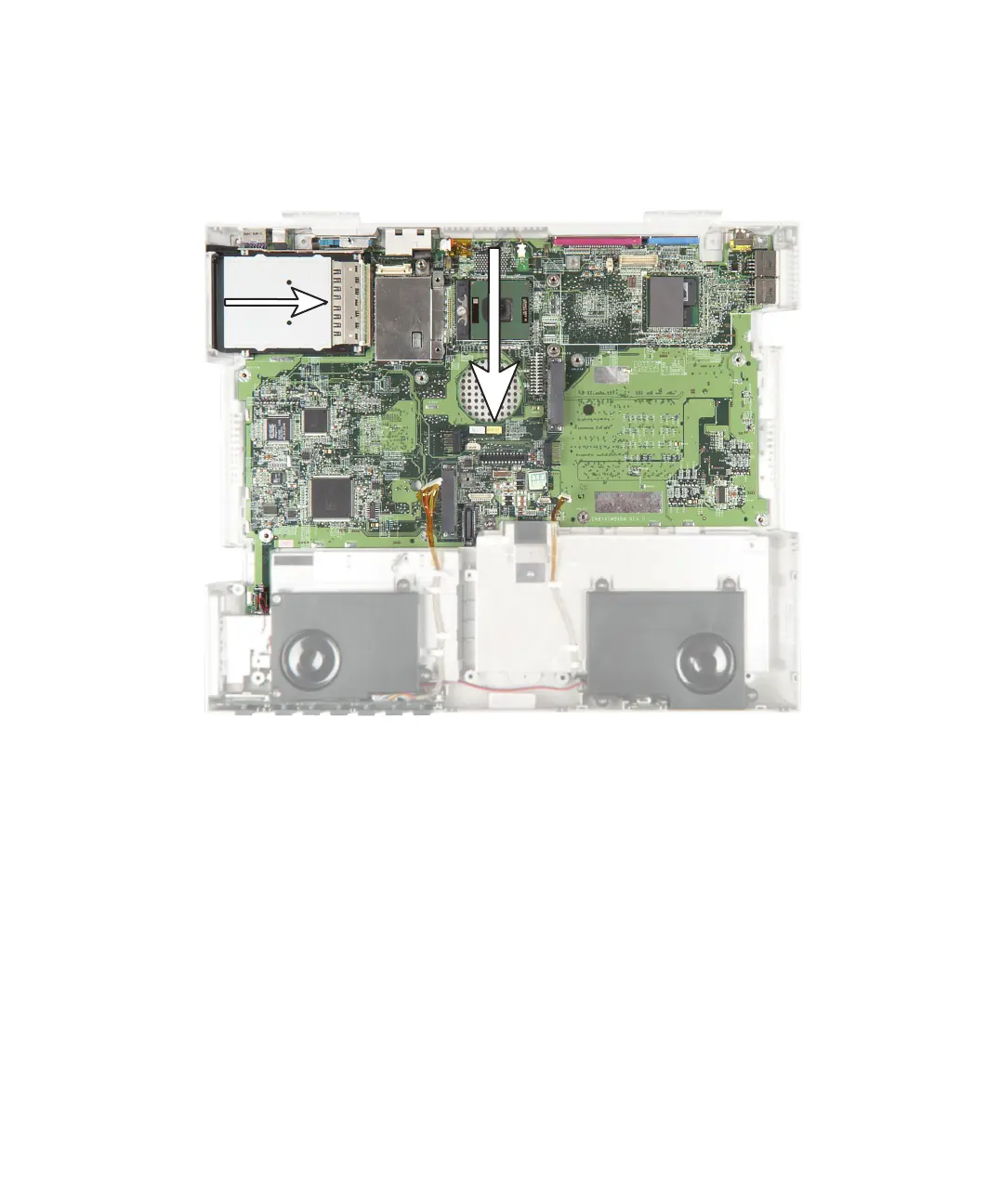

24 While pushing in on the PC Card eject button, remove the system board.
Make sure that the rear I/O panel clears the bottom of the chassis (shown
by the top arrow) and the PC Card eject button clears the bottom of the
chassis (shown by the left arrow).
